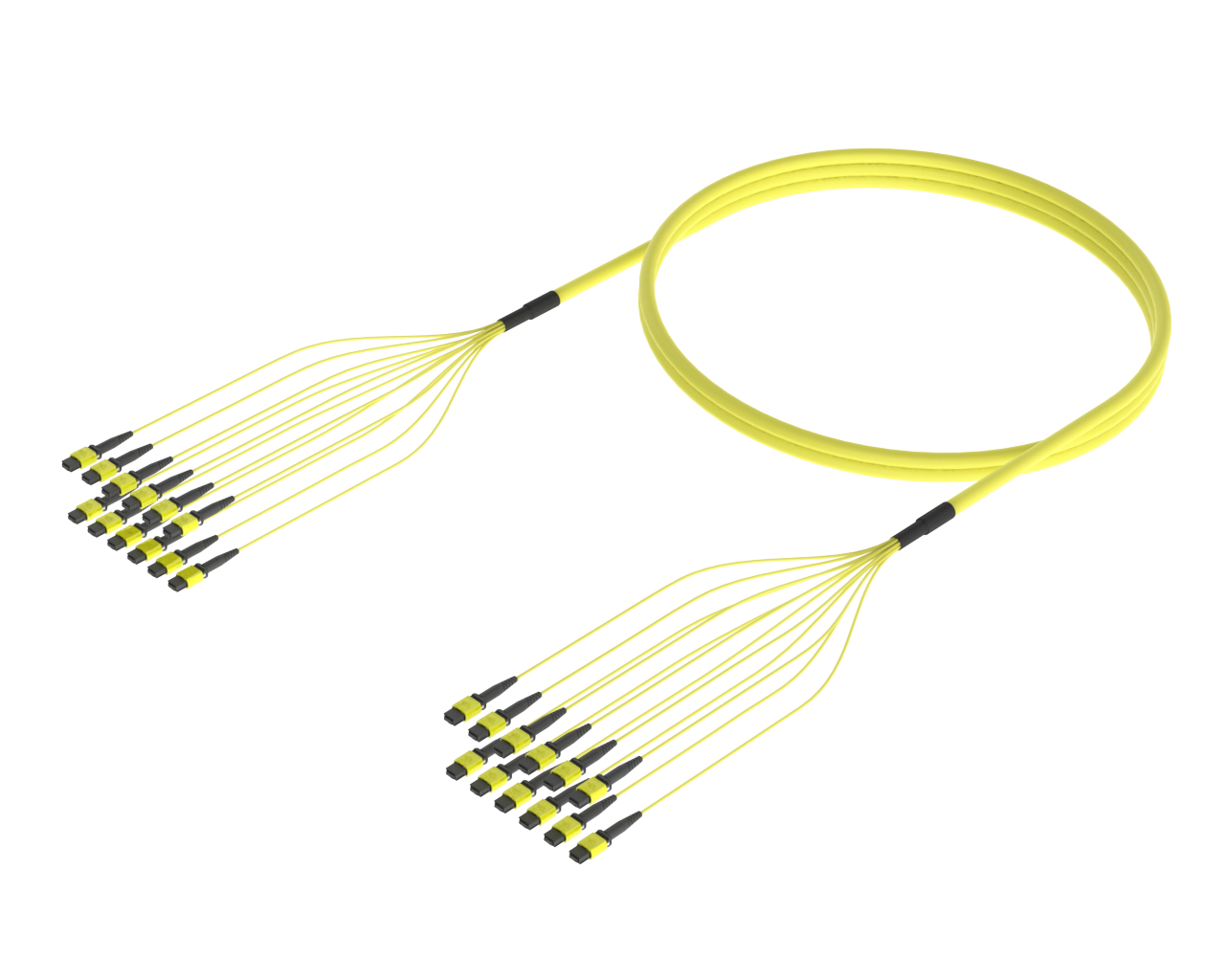

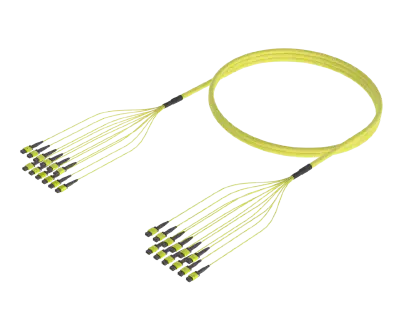

Medium veseltelling MPO-trunk-samestellings met 36 tot 144 vesels. Maak vinnige, grootskaalse ontplooiing moontlik met verminderde arbeid en minimale installasiekoste.

Ondersteun 36 tot 144 vesels per stam
Beskikbaar met MPO-8, MPO-12 of MPO-24 konnektors
Fabriek beëindig en 100% IL/RL getoets
LSZH-buitemantel met CPR-opsies
Ideaal vir soneverspreiding en ruggraatuitbreidings
Vereenvoudig installasie en verminder padgebruik

Kategorie: Optiese kabelsamestellings, MPO-kam

NAVRAAG NOU

Deel:

Ontwerp om te Oortref

Afgelewer met Sekuriteit

Bekostiging Gemaak Eenvoudig

Gereed vir Vinnige Ontplooiing

Gereed om te Skaal

Nakoming Verseker

MPO-trunkkabels met 'n medium veseltelling is ontwerp vir hoëdigtheid-ruggraat-, kruisverbinding- en lappie-ontplooiings. Beskikbaar van 36 tot 144 vesels, lewer hulle 'n skaalbare, ruimte-doeltreffende oplossing vir ondernemingsdatasentrums, randomgewings en toegangslaagskakeling.

Voorafgetermineer met MPO-8, MPO-12 of MPO-24-verbindings, is hierdie samestellings ontwerp om poortbenutting te maksimeer en installasietyd in gestruktureerde kabelstelsels te verminder. Elke eenheid word in die fabriek getoets vir lae invoegverlies en hoë terugkeerverlies, wat betroubare optiese werkverrigting in veeleisende toepassings verseker.

Skede-opsies sluit LSZH- en CPR-graderings in om aan uiteenlopende voldoenings- en installasievereistes te voldoen. Hierdie medium veseltelling-stamme maak vinnige ontplooiing van groot kernkapasiteite in 'n enkele trek moontlik - wat installasie stroomlyn en arbeid op die perseel in kern-, horisontale en verspreidingslae verminder.

Algemeen

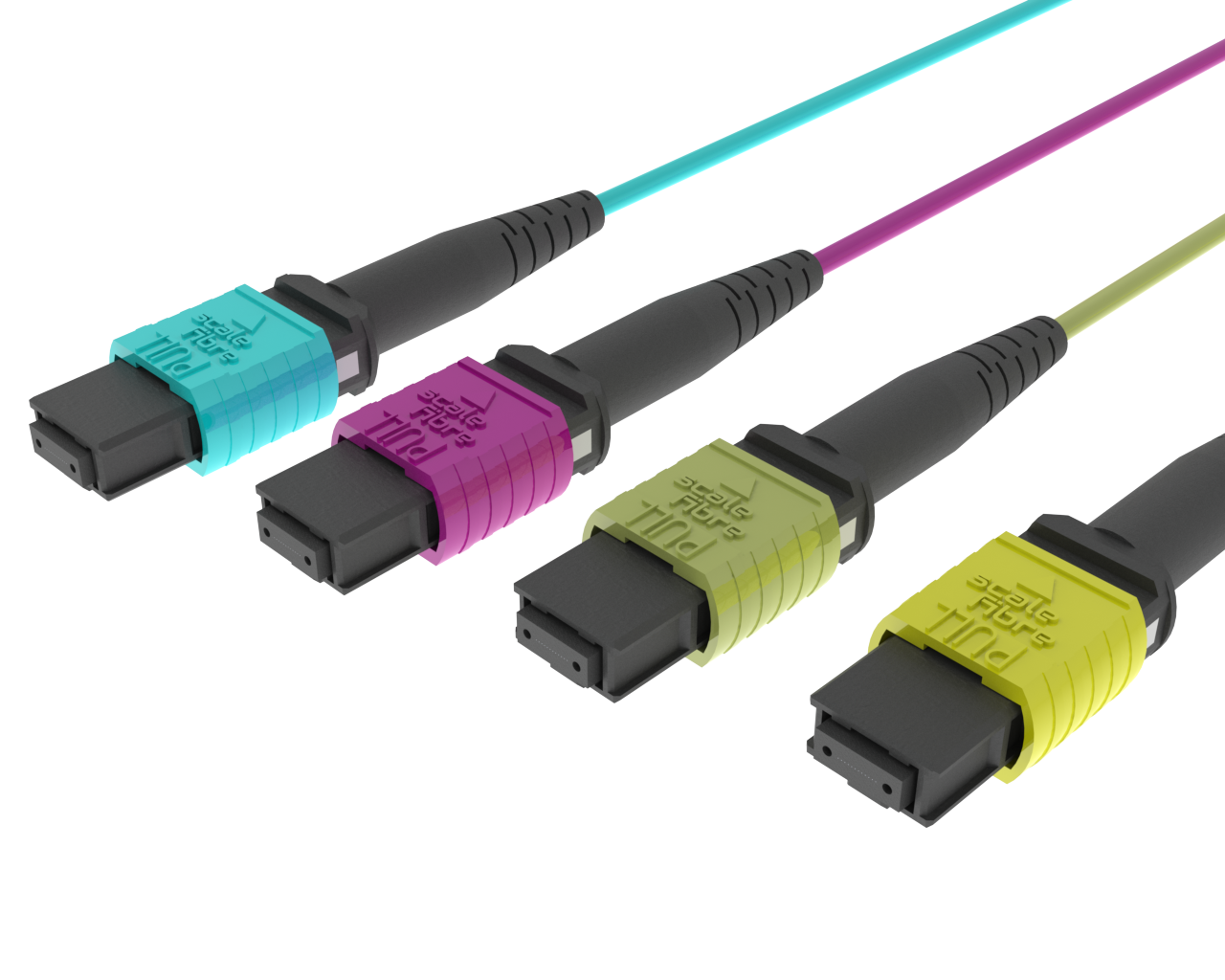

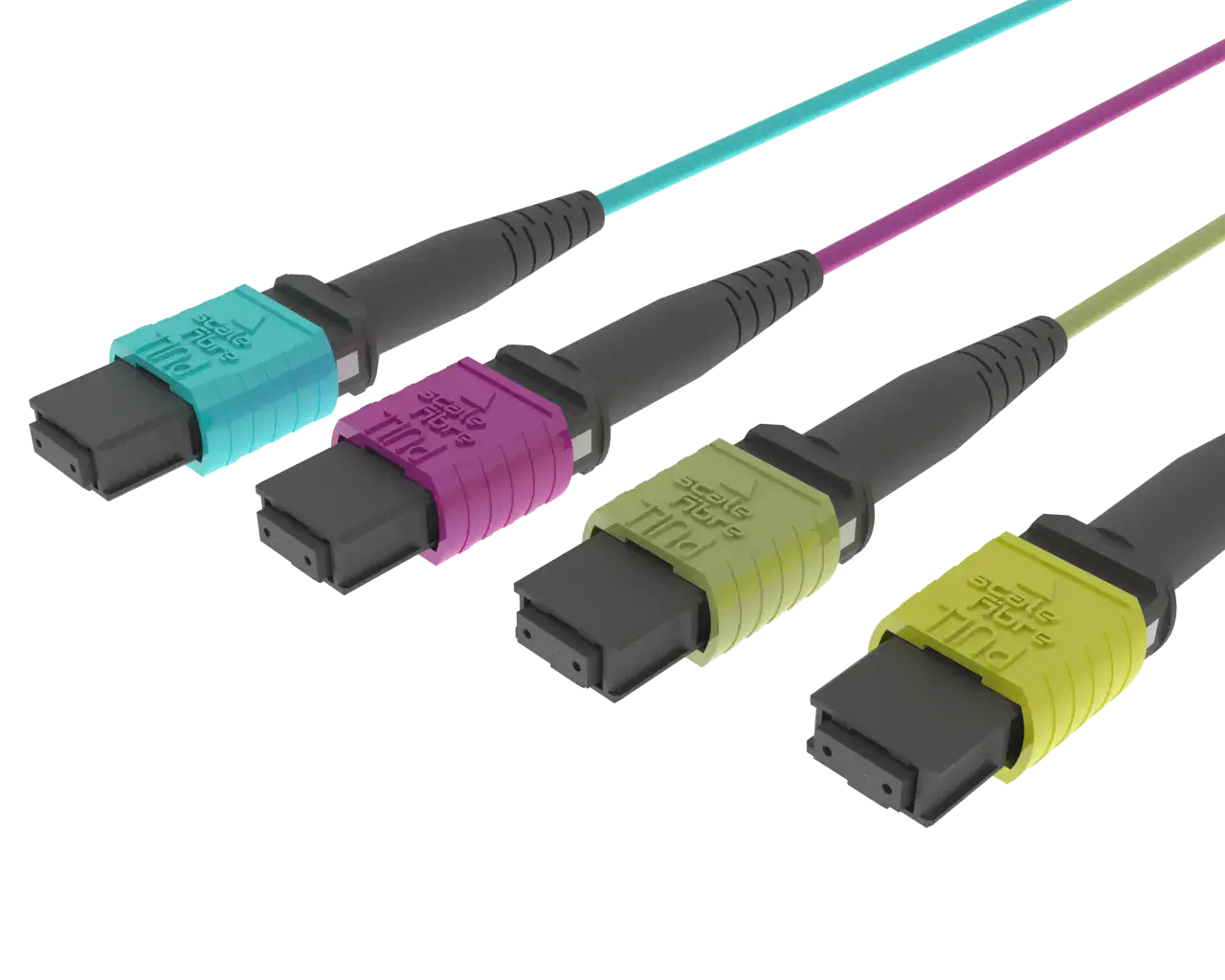

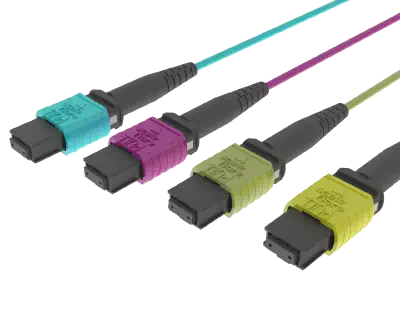

Verbindingstipes	MPO-8, MPO-12, MPO-24 (manlik of vroulik, vasgespeld of losgespeld)
Veseltellingreeks	36 tot 144 vesels per stam
Polariteitsopsies	Tipe A, B, C

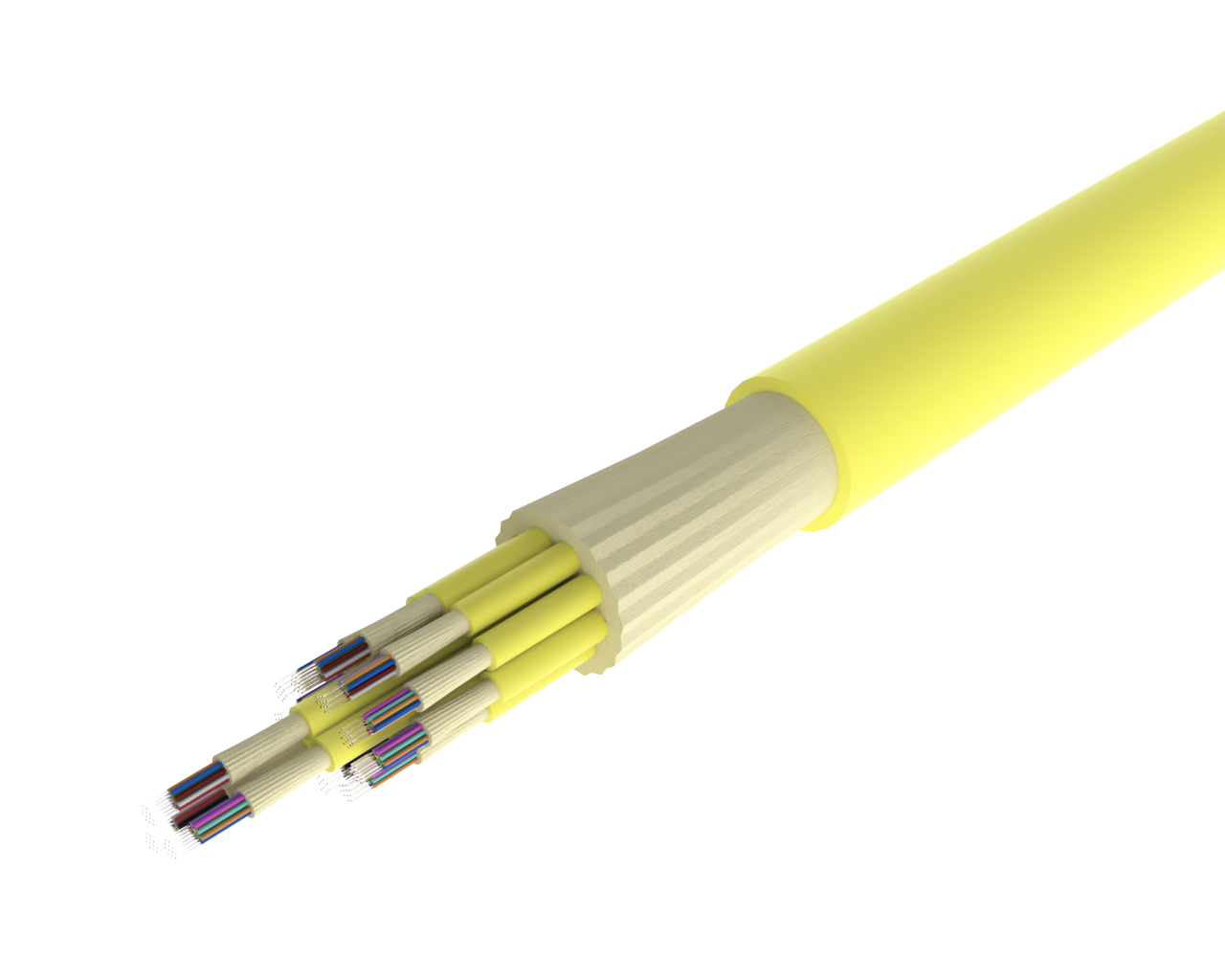

Kabelspesifikasie
Baadjie Materiaal	Lae Rook Nul Halogeen (LSZH)
Kabeldiameter	3mm
Veseltipe	Enkelmodus-OS2 Multimodus OM3/OM4/OM5
Invoegverlies	≤0.35 dB per konnektor
Opbrengsverlies	≥60 dB (SM); ≥30 dB (MM)
Bedryfstemperatuur	-20°C tot +70°C
Nakoming	TIA/EIA-568, IEC 61754-7, FOCIS-5, RoHS, REACH

Veseloptiese samestelling, enkelmodus (G.657.A1), 36F, MPO-12 tot MPO-12, Polariteit A, LSZH
Onderdeelnommer	Lengte (m)
MT-S7-36-MPOF-MPOF-A-3M	3
MT-S7-36-MPOF-MPOF-A-5M	5
MT-S7-36-MPOF-MPOF-A-10M	10
MT-S7-36-MPOF-MPOF-A-15M	15
MT-S7-36-MPOF-MPOF-A-20M	20
MT-S7-36-MPOF-MPOF-A-25M	25
MT-S7-36-MPOF-MPOF-A-30M	30
MT-S7-36-MPOF-MPOF-A-35M	35
MT-S7-36-MPOF-MPOF-A-40M	40
MT-S7-36-MPOF-MPOF-A-45M	45
MT-S7-36-MPOF-MPOF-A-50M	50

Veseloptiese samestelling, enkelmodus (G.657.A1), 36F, MPO-12 tot MPO-12, Polariteit B, LSZH
Onderdeelnommer	Lengte (m)
MT-S7-36-MPOF-MPOF-B-3M	3
MT-S7-36-MPOF-MPOF-B-5M	5
MT-S7-36-MPOF-MPOF-B-10M	10
MT-S7-36-MPOF-MPOF-B-15M	15
MT-S7-36-MPOF-MPOF-B-20M	20
MT-S7-36-MPOF-MPOF-B-25M	25
MT-S7-36-MPOF-MPOF-B-30M	30
MT-S7-36-MPOF-MPOF-B-35M	35
MT-S7-36-MPOF-MPOF-B-40M	40
MT-S7-36-MPOF-MPOF-B-45M	45
MT-S7-36-MPOF-MPOF-B-50M	50

Veseloptiese samestelling, enkelmodus (G.657.A1), 36F, MPO-12 tot MPO-12, Polariteit C, LSZH
Onderdeelnommer	Lengte (m)
MT-S7-36-MPOF-MPOF-C-3M	3
MT-S7-36-MPOF-MPOF-C-5M	5
MT-S7-36-MPOF-MPOF-C-10M	10
MT-S7-36-MPOF-MPOF-C-15M	15
MT-S7-36-MPOF-MPOF-C-20M	20
MT-S7-36-MPOF-MPOF-C-25M	25
MT-S7-36-MPOF-MPOF-C-30M	30
MT-S7-36-MPOF-MPOF-C-35M	35
MT-S7-36-MPOF-MPOF-C-40M	40
MT-S7-36-MPOF-MPOF-C-45M	45
MT-S7-36-MPOF-MPOF-C-50M	50

Veseloptiese samestelling, enkelmodus (G.657.A1), 36F, MPO-12 tot MPO-12, Polariteit A, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-S7-36-MPOF-MPOF-A-3M-C000	3
MT-S7-36-MPOF-MPOF-A-5M-C000	5
MT-S7-36-MPOF-MPOF-A-10M-C000	10
MT-S7-36-MPOF-MPOF-A-15M-C000	15
MT-S7-36-MPOF-MPOF-A-20M-C000	20
MT-S7-36-MPOF-MPOF-A-25M-C000	25
MT-S7-36-MPOF-MPOF-A-30M-C000	30
MT-S7-36-MPOF-MPOF-A-35M-C000	35
MT-S7-36-MPOF-MPOF-A-40M-C000	40
MT-S7-36-MPOF-MPOF-A-45M-C000	45
MT-S7-36-MPOF-MPOF-A-50M-C000	50

Veseloptiese samestelling, enkelmodus (G.657.A1), 36F, MPO-12 tot MPO-12, Polariteit B, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-S7-36-MPOF-MPOF-B-3M-C000	3
MT-S7-36-MPOF-MPOF-B-5M-C000	5
MT-S7-36-MPOF-MPOF-B-10M-C000	10
MT-S7-36-MPOF-MPOF-B-15M-C000	15
MT-S7-36-MPOF-MPOF-B-20M-C000	20
MT-S7-36-MPOF-MPOF-B-25M-C000	25
MT-S7-36-MPOF-MPOF-B-30M-C000	30
MT-S7-36-MPOF-MPOF-B-35M-C000	35
MT-S7-36-MPOF-MPOF-B-40M-C000	40
MT-S7-36-MPOF-MPOF-B-45M-C000	45
MT-S7-36-MPOF-MPOF-B-50M-C000	50

Veseloptiese samestelling, enkelmodus (G.657.A1), 36F, MPO-12 tot MPO-12, Polariteit C, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-S7-36-MPOF-MPOF-C-3M-C000	3
MT-S7-36-MPOF-MPOF-C-5M-C000	5
MT-S7-36-MPOF-MPOF-C-10M-C000	10
MT-S7-36-MPOF-MPOF-C-15M-C000	15
MT-S7-36-MPOF-MPOF-C-20M-C000	20
MT-S7-36-MPOF-MPOF-C-25M-C000	25
MT-S7-36-MPOF-MPOF-C-30M-C000	30
MT-S7-36-MPOF-MPOF-C-35M-C000	35
MT-S7-36-MPOF-MPOF-C-40M-C000	40
MT-S7-36-MPOF-MPOF-C-45M-C000	45
MT-S7-36-MPOF-MPOF-C-50M-C000	50

Veseloptiese samestelling, enkelmodus (G.657.A1), 48F, MPO-12 tot MPO-12, Polariteit A, LSZH
Onderdeelnommer	Lengte (m)
MT-S7-12-MPOF-MPOF-A-3M	3
MT-S7-12-MPOF-MPOF-A-5M	5
MT-S7-12-MPOF-MPOF-A-10M	10
MT-S7-12-MPOF-MPOF-A-15M	15
MT-S7-12-MPOF-MPOF-A-20M	20
MT-S7-12-MPOF-MPOF-A-25M	25
MT-S7-12-MPOF-MPOF-A-30M	30
MT-S7-12-MPOF-MPOF-A-35M	35
MT-S7-12-MPOF-MPOF-A-40M	40
MT-S7-12-MPOF-MPOF-A-45M	45
MT-S7-12-MPOF-MPOF-A-50M	50

Veseloptiese samestelling, enkelmodus (G.657.A1), 12F, MPO-12 tot MPO-12, Polariteit B, LSZH
Onderdeelnommer	Lengte (m)
MT-S7-12-MPOF-MPOF-B-3M	3
MT-S7-12-MPOF-MPOF-B-5M	5
MT-S7-12-MPOF-MPOF-B-10M	10
MT-S7-12-MPOF-MPOF-B-15M	15
MT-S7-12-MPOF-MPOF-B-20M	20
MT-S7-12-MPOF-MPOF-B-25M	25
MT-S7-12-MPOF-MPOF-B-30M	30
MT-S7-12-MPOF-MPOF-B-35M	35
MT-S7-12-MPOF-MPOF-B-40M	40
MT-S7-12-MPOF-MPOF-B-45M	45
MT-S7-12-MPOF-MPOF-B-50M	50

Veseloptiese samestelling, enkelmodus (G.657.A1), 48F, MPO-12 tot MPO-12, Polariteit C, LSZH
Onderdeelnommer	Lengte (m)
MT-S7-48-MPOF-MPOF-C-3M	3
MT-S7-48-MPOF-MPOF-C-5M	5
MT-S7-48-MPOF-MPOF-C-10M	10
MT-S7-48-MPOF-MPOF-C-15M	15
MT-S7-48-MPOF-MPOF-C-20M	20
MT-S7-48-MPOF-MPOF-C-25M	25
MT-S7-48-MPOF-MPOF-C-30M	30
MT-S7-48-MPOF-MPOF-C-35M	35
MT-S7-48-MPOF-MPOF-C-40M	40
MT-S7-48-MPOF-MPOF-C-45M	45
MT-S7-48-MPOF-MPOF-C-50M	50

Veseloptiese samestelling, enkelmodus (G.657.A1), 48F, MPO-12 tot MPO-12, Polariteit A, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-S7-48-MPOF-MPOF-A-3M-C000	3
MT-S7-48-MPOF-MPOF-A-5M-C000	5
MT-S7-48-MPOF-MPOF-A-10M-C000	10
MT-S7-48-MPOF-MPOF-A-15M-C000	15
MT-S7-48-MPOF-MPOF-A-20M-C000	20
MT-S7-48-MPOF-MPOF-A-25M-C000	25
MT-S7-48-MPOF-MPOF-A-30M-C000	30
MT-S7-48-MPOF-MPOF-A-35M-C000	35
MT-S7-48-MPOF-MPOF-A-40M-C000	40
MT-S7-48-MPOF-MPOF-A-45M-C000	45
MT-S7-48-MPOF-MPOF-A-50M-C000	50

Veseloptiese samestelling, enkelmodus (G.657.A1), 48F, MPO-12 tot MPO-12, Polariteit B, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-S7-48-MPOF-MPOF-B-3M-C000	3
MT-S7-48-MPOF-MPOF-B-5M-C000	5
MT-S7-48-MPOF-MPOF-B-10M-C000	10
MT-S7-48-MPOF-MPOF-B-15M-C000	15
MT-S7-48-MPOF-MPOF-B-20M-C000	20
MT-S7-48-MPOF-MPOF-B-25M-C000	25
MT-S7-48-MPOF-MPOF-B-30M-C000	30
MT-S7-48-MPOF-MPOF-B-35M-C000	35
MT-S7-48-MPOF-MPOF-B-40M-C000	40
MT-S7-48-MPOF-MPOF-B-45M-C000	45
MT-S7-48-MPOF-MPOF-B-50M-C000	50

Veseloptiese samestelling, enkelmodus (G.657.A1), 48F, MPO-12 tot MPO-12, Polariteit C, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-S7-48-MPOF-MPOF-C-3M-C000	3
MT-S7-48-MPOF-MPOF-C-5M-C000	5
MT-S7-48-MPOF-MPOF-C-10M-C000	10
MT-S7-48-MPOF-MPOF-C-15M-C000	15
MT-S7-48-MPOF-MPOF-C-20M-C000	20
MT-S7-48-MPOF-MPOF-C-25M-C000	25
MT-S7-48-MPOF-MPOF-C-30M-C000	30
MT-S7-48-MPOF-MPOF-C-35M-C000	35
MT-S7-48-MPOF-MPOF-C-40M-C000	40
MT-S7-48-MPOF-MPOF-C-45M-C000	45
MT-S7-48-MPOF-MPOF-C-50M-C000	50

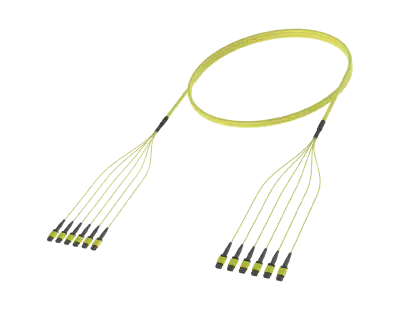

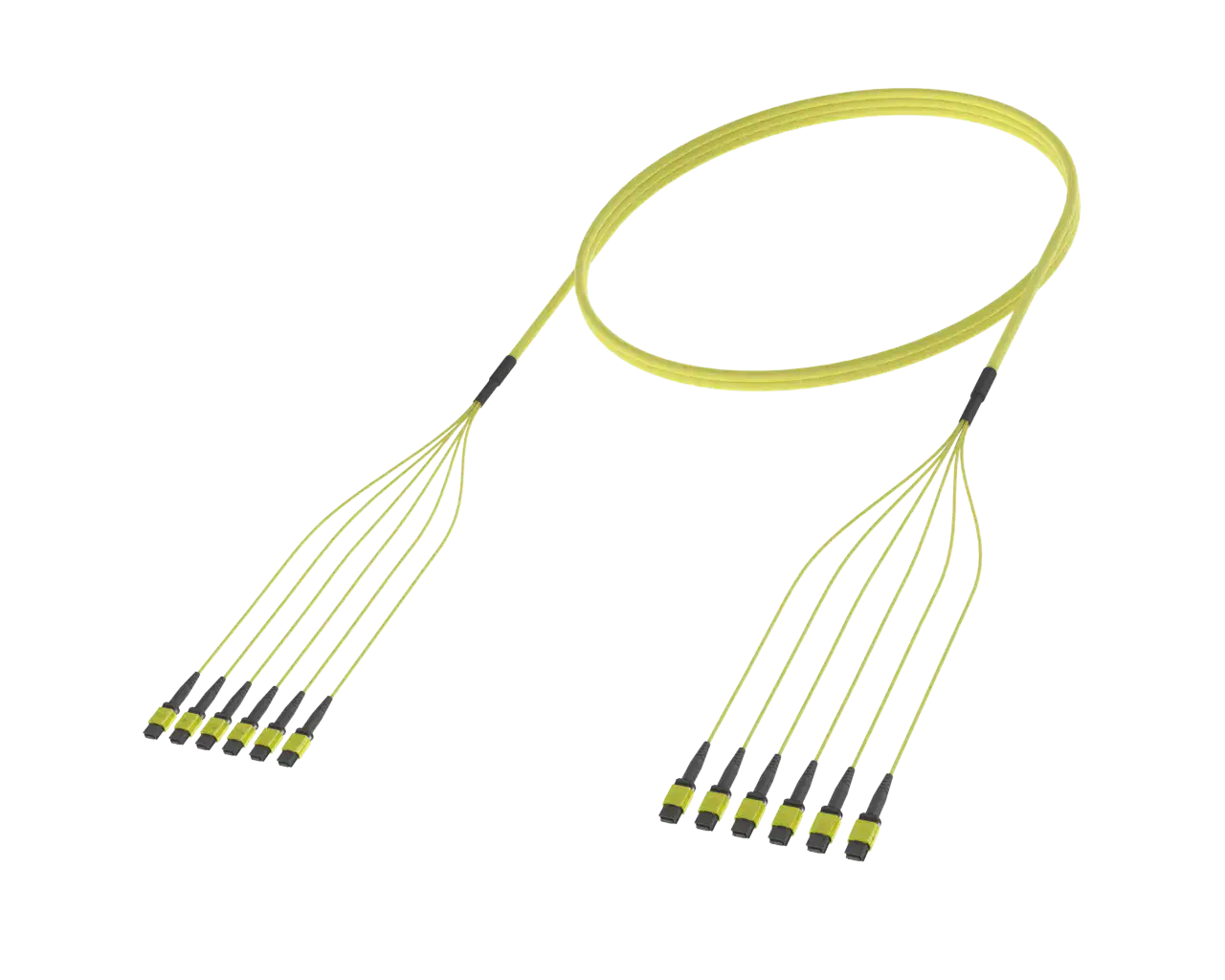

Veseloptiese samestelling, enkelmodus (G.657.A1), 72F, MPO-12 tot MPO-12, Polariteit A, LSZH
Onderdeelnommer	Lengte (m)
MT-S7-72-MPOF-MPOF-A-3M	3
MT-S7-72-MPOF-MPOF-A-5M	5
MT-S7-72-MPOF-MPOF-A-10M	10
MT-S7-72-MPOF-MPOF-A-15M	15
MT-S7-72-MPOF-MPOF-A-20M	20
MT-S7-72-MPOF-MPOF-A-25M	25
MT-S7-72-MPOF-MPOF-A-30M	30
MT-S7-72-MPOF-MPOF-A-35M	35
MT-S7-72-MPOF-MPOF-A-40M	40
MT-S7-72-MPOF-MPOF-A-45M	45
MT-S7-72-MPOF-MPOF-A-50M	50

Veseloptiese samestelling, enkelmodus (G.657.A1), 72F, MPO-12 tot MPO-12, Polariteit B, LSZH
Onderdeelnommer	Lengte (m)
MT-S7-72-MPOF-MPOF-B-3M	3
MT-S7-72-MPOF-MPOF-B-5M	5
MT-S7-72-MPOF-MPOF-B-10M	10
MT-S7-72-MPOF-MPOF-B-15M	15
MT-S7-72-MPOF-MPOF-B-20M	20
MT-S7-72-MPOF-MPOF-B-25M	25
MT-S7-72-MPOF-MPOF-B-30M	30
MT-S7-72-MPOF-MPOF-B-35M	35
MT-S7-72-MPOF-MPOF-B-40M	40
MT-S7-72-MPOF-MPOF-B-45M	45
MT-S7-72-MPOF-MPOF-B-50M	50

Veseloptiese samestelling, enkelmodus (G.657.A1), 72F, MPO-12 tot MPO-12, Polariteit C, LSZH
Onderdeelnommer	Lengte (m)
MT-S7-72-MPOF-MPOF-C-3M	3
MT-S7-72-MPOF-MPOF-C-5M	5
MT-S7-72-MPOF-MPOF-C-10M	10
MT-S7-72-MPOF-MPOF-C-15M	15
MT-S7-72-MPOF-MPOF-C-20M	20
MT-S7-72-MPOF-MPOF-C-25M	25
MT-S7-72-MPOF-MPOF-C-30M	30
MT-S7-72-MPOF-MPOF-C-35M	35
MT-S7-72-MPOF-MPOF-C-40M	40
MT-S7-72-MPOF-MPOF-C-45M	45
MT-S7-72-MPOF-MPOF-C-50M	50

Veseloptiese samestelling, enkelmodus (G.657.A1), 72F, MPO-12 tot MPO-12, Polariteit A, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-S7-72-MPOF-MPOF-A-3M-C000	3
MT-S7-72-MPOF-MPOF-A-5M-C000	5
MT-S7-72-MPOF-MPOF-A-10M-C000	10
MT-S7-72-MPOF-MPOF-A-15M-C000	15
MT-S7-72-MPOF-MPOF-A-20M-C000	20
MT-S7-72-MPOF-MPOF-A-25M-C000	25
MT-S7-72-MPOF-MPOF-A-30M-C000	30
MT-S7-72-MPOF-MPOF-A-35M-C000	35
MT-S7-72-MPOF-MPOF-A-40M-C000	40
MT-S7-72-MPOF-MPOF-A-45M-C000	45
MT-S7-72-MPOF-MPOF-A-50M-C000	50

Veseloptiese samestelling, enkelmodus (G.657.A1), 72F, MPO-12 tot MPO-12, Polariteit B, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-S7-72-MPOF-MPOF-B-3M-C000	3
MT-S7-72-MPOF-MPOF-B-5M-C000	5
MT-S7-72-MPOF-MPOF-B-10M-C000	10
MT-S7-72-MPOF-MPOF-B-15M-C000	15
MT-S7-72-MPOF-MPOF-B-20M-C000	20
MT-S7-72-MPOF-MPOF-B-25M-C000	25
MT-S7-72-MPOF-MPOF-B-30M-C000	30
MT-S7-72-MPOF-MPOF-B-35M-C000	35
MT-S7-72-MPOF-MPOF-B-40M-C000	40
MT-S7-72-MPOF-MPOF-B-45M-C000	45
MT-S7-72-MPOF-MPOF-B-50M-C000	50

Veseloptiese samestelling, enkelmodus (G.657.A1), 72F, MPO-12 tot MPO-12, Polariteit C, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-S7-72-MPOF-MPOF-C-3M-C000	3
MT-S7-72-MPOF-MPOF-C-5M-C000	5
MT-S7-72-MPOF-MPOF-C-10M-C000	10
MT-S7-72-MPOF-MPOF-C-15M-C000	15
MT-S7-72-MPOF-MPOF-C-20M-C000	20
MT-S7-72-MPOF-MPOF-C-25M-C000	25
MT-S7-72-MPOF-MPOF-C-30M-C000	30
MT-S7-72-MPOF-MPOF-C-35M-C000	35
MT-S7-72-MPOF-MPOF-C-40M-C000	40
MT-S7-72-MPOF-MPOF-C-45M-C000	45
MT-S7-72-MPOF-MPOF-C-50M-C000	50

Veseloptiese samestelling, multimodus (OM3), 8F, MPO-8 tot MPO-8, Polariteit A, LSZH
Onderdeelnommer	Lengte (m)
MT-M3-8-MP8F-MP8F-A-3M	3
MT-M3-8-MP8F-MP8F-A-5M	5
MT-M3-8-MP8F-MP8F-A-10M	10
MT-M3-8-MP8F-MP8F-A-15M	15
MT-M3-8-MP8F-MP8F-A-20M	20
MT-M3-8-MP8F-MP8F-A-25M	25
MT-M3-8-MP8F-MP8F-A-30M	30
MT-M3-8-MP8F-MP8F-A-35M	35
MT-M3-8-MP8F-MP8F-A-40M	40
MT-M3-8-MP8F-MP8F-A-45M	45
MT-M3-8-MP8F-MP8F-A-50M	50

Veseloptiese samestelling, multimodus (OM3), 8F, MPO-8 tot MPO-8, Polariteit B, LSZH
Onderdeelnommer	Lengte (m)
MT-M3-8-MP8F-MP8F-B-3M	3
MT-M3-8-MP8F-MP8F-B-5M	5
MT-M3-8-MP8F-MP8F-B-10M	10
MT-M3-8-MP8F-MP8F-B-15M	15
MT-M3-8-MP8F-MP8F-B-20M	20
MT-M3-8-MP8F-MP8F-B-25M	25
MT-M3-8-MP8F-MP8F-B-30M	30
MT-M3-8-MP8F-MP8F-B-35M	35
MT-M3-8-MP8F-MP8F-B-40M	40
MT-M3-8-MP8F-MP8F-B-45M	45
MT-M3-8-MP8F-MP8F-B-50M	50

Veseloptiese samestelling, multimodus (OM3), 8F, MPO-8 tot MPO-8, Polariteit C, LSZH
Onderdeelnommer	Lengte (m)
MT-M3-8-MP8F-MP8F-C-3M	3
MT-M3-8-MP8F-MP8F-C-5M	5
MT-M3-8-MP8F-MP8F-C-10M	10
MT-M3-8-MP8F-MP8F-C-15M	15
MT-M3-8-MP8F-MP8F-C-20M	20
MT-M3-8-MP8F-MP8F-C-25M	25
MT-M3-8-MP8F-MP8F-C-30M	30
MT-M3-8-MP8F-MP8F-C-35M	35
MT-M3-8-MP8F-MP8F-C-40M	40
MT-M3-8-MP8F-MP8F-C-45M	45
MT-M3-8-MP8F-MP8F-C-50M	50

Veseloptiese samestelling, multimodus (OM3), 8F, MPO-8 tot MPO-8, Polariteit A, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M3-8-MP8F-MP8F-A-3M-C000	3
MT-M3-8-MP8F-MP8F-A-5M-C000	5
MT-M3-8-MP8F-MP8F-A-10M-C000	10
MT-M3-8-MP8F-MP8F-A-15M-C000	15
MT-M3-8-MP8F-MP8F-A-20M-C000	20
MT-M3-8-MP8F-MP8F-A-25M-C000	25
MT-M3-8-MP8F-MP8F-A-30M-C000	30
MT-M3-8-MP8F-MP8F-A-35M-C000	35
MT-M3-8-MP8F-MP8F-A-40M-C000	40
MT-M3-8-MP8F-MP8F-A-45M-C000	45
MT-M3-8-MP8F-MP8F-A-50M-C000	50

Veseloptiese samestelling, multimodus (OM3), 8F, MPO-8 tot MPO-8, Polariteit B, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M3-8-MP8F-MP8F-B-3M-C000	3
MT-M3-8-MP8F-MP8F-B-5M-C000	5
MT-M3-8-MP8F-MP8F-B-10M-C000	10
MT-M3-8-MP8F-MP8F-B-15M-C000	15
MT-M3-8-MP8F-MP8F-B-20M-C000	20
MT-M3-8-MP8F-MP8F-B-25M-C000	25
MT-M3-8-MP8F-MP8F-B-30M-C000	30
MT-M3-8-MP8F-MP8F-B-35M-C000	35
MT-M3-8-MP8F-MP8F-B-40M-C000	40
MT-M3-8-MP8F-MP8F-B-45M-C000	45
MT-M3-8-MP8F-MP8F-B-50M-C000	50

Veseloptiese samestelling, multimodus (OM3), 8F, MPO-8 tot MPO-8, Polariteit C, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M3-8-MP8F-MP8F-C-3M-C000	3
MT-M3-8-MP8F-MP8F-C-5M-C000	5
MT-M3-8-MP8F-MP8F-C-10M-C000	10
MT-M3-8-MP8F-MP8F-C-15M-C000	15
MT-M3-8-MP8F-MP8F-C-20M-C000	20
MT-M3-8-MP8F-MP8F-C-25M-C000	25
MT-M3-8-MP8F-MP8F-C-30M-C000	30
MT-M3-8-MP8F-MP8F-C-35M-C000	35
MT-M3-8-MP8F-MP8F-C-40M-C000	40
MT-M3-8-MP8F-MP8F-C-45M-C000	45
MT-M3-8-MP8F-MP8F-C-50M-C000	50

Veseloptiese samestelling, multimodus (OM3), 12F, MPO-12 tot MPO-12, Polariteit A, LSZH
Onderdeelnommer	Lengte (m)
MT-M3-12-MPOF-MPOF-A-3M	3
MT-M3-12-MPOF-MPOF-A-5M	5
MT-M3-12-MPOF-MPOF-A-10M	10
MT-M3-12-MPOF-MPOF-A-15M	15
MT-M3-12-MPOF-MPOF-A-20M	20
MT-M3-12-MPOF-MPOF-A-25M	25
MT-M3-12-MPOF-MPOF-A-30M	30
MT-M3-12-MPOF-MPOF-A-35M	35
MT-M3-12-MPOF-MPOF-A-40M	40
MT-M3-12-MPOF-MPOF-A-45M	45
MT-M3-12-MPOF-MPOF-A-50M	50

Veseloptiese samestelling, multimodus (OM3), 12F, MPO-12 tot MPO-12, Polariteit B, LSZH
Onderdeelnommer	Lengte (m)
MT-M3-12-MPOF-MPOF-B-3M	3
MT-M3-12-MPOF-MPOF-B-5M	5
MT-M3-12-MPOF-MPOF-B-10M	10
MT-M3-12-MPOF-MPOF-B-15M	15
MT-M3-12-MPOF-MPOF-B-20M	20
MT-M3-12-MPOF-MPOF-B-25M	25
MT-M3-12-MPOF-MPOF-B-30M	30
MT-M3-12-MPOF-MPOF-B-35M	35
MT-M3-12-MPOF-MPOF-B-40M	40
MT-M3-12-MPOF-MPOF-B-45M	45
MT-M3-12-MPOF-MPOF-B-50M	50

Veseloptiese samestelling, multimodus (OM3), 12F, MPO-12 tot MPO-12, Polariteit C, LSZH
Onderdeelnommer	Lengte (m)
MT-M3-12-MPOF-MPOF-C-3M	3
MT-M3-12-MPOF-MPOF-C-5M	5
MT-M3-12-MPOF-MPOF-C-10M	10
MT-M3-12-MPOF-MPOF-C-15M	15
MT-M3-12-MPOF-MPOF-C-20M	20
MT-M3-12-MPOF-MPOF-C-25M	25
MT-M3-12-MPOF-MPOF-C-30M	30
MT-M3-12-MPOF-MPOF-C-35M	35
MT-M3-12-MPOF-MPOF-C-40M	40
MT-M3-12-MPOF-MPOF-C-45M	45
MT-M3-12-MPOF-MPOF-C-50M	50

Veseloptiese samestelling, multimodus (OM3), 12F, MPO-12 tot MPO-12, Polariteit A, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M3-12-MPOF-MPOF-A-3M-C000	3
MT-M3-12-MPOF-MPOF-A-5M-C000	5
MT-M3-12-MPOF-MPOF-A-10M-C000	10
MT-M3-12-MPOF-MPOF-A-15M-C000	15
MT-M3-12-MPOF-MPOF-A-20M-C000	20
MT-M3-12-MPOF-MPOF-A-25M-C000	25
MT-M3-12-MPOF-MPOF-A-30M-C000	30
MT-M3-12-MPOF-MPOF-A-35M-C000	35
MT-M3-12-MPOF-MPOF-A-40M-C000	40
MT-M3-12-MPOF-MPOF-A-45M-C000	45
MT-M3-12-MPOF-MPOF-A-50M-C000	50

Veseloptiese samestelling, multimodus (OM3), 12F, MPO-12 tot MPO-12, Polariteit B, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M3-12-MPOF-MPOF-B-3M-C000	3
MT-M3-12-MPOF-MPOF-B-5M-C000	5
MT-M3-12-MPOF-MPOF-B-10M-C000	10
MT-M3-12-MPOF-MPOF-B-15M-C000	15
MT-M3-12-MPOF-MPOF-B-20M-C000	20
MT-M3-12-MPOF-MPOF-B-25M-C000	25
MT-M3-12-MPOF-MPOF-B-30M-C000	30
MT-M3-12-MPOF-MPOF-B-35M-C000	35
MT-M3-12-MPOF-MPOF-B-40M-C000	40
MT-M3-12-MPOF-MPOF-B-45M-C000	45
MT-M3-12-MPOF-MPOF-B-50M-C000	50

Veseloptiese samestelling, multimodus (OM3), 12F, MPO-12 tot MPO-12, Polariteit C, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M3-12-MPOF-MPOF-C-3M-C000	3
MT-M3-12-MPOF-MPOF-C-5M-C000	5
MT-M3-12-MPOF-MPOF-C-10M-C000	10
MT-M3-12-MPOF-MPOF-C-15M-C000	15
MT-M3-12-MPOF-MPOF-C-20M-C000	20
MT-M3-12-MPOF-MPOF-C-25M-C000	25
MT-M3-12-MPOF-MPOF-C-30M-C000	30
MT-M3-12-MPOF-MPOF-C-35M-C000	35
MT-M3-12-MPOF-MPOF-C-40M-C000	40
MT-M3-12-MPOF-MPOF-C-45M-C000	45
MT-M3-12-MPOF-MPOF-C-50M-C000	50

Veseloptiese samestelling, multimodus (OM3), 24F, MPO-24 tot MPO-24, Polariteit A, LSZH
Onderdeelnommer	Lengte (m)
MT-M3-24-MP24F-MP24F-A-3M	3
MT-M3-24-MP24F-MP24F-A-5M	5
MT-M3-24-MP24F-MP24F-A-10M	10
MT-M3-24-MP24F-MP24F-A-15M	15
MT-M3-24-MP24F-MP24F-A-20M	20
MT-M3-24-MP24F-MP24F-A-25M	25
MT-M3-24-MP24F-MP24F-A-30M	30
MT-M3-24-MP24F-MP24F-A-35M	35
MT-M3-24-MP24F-MP24F-A-40M	40
MT-M3-24-MP24F-MP24F-A-45M	45
MT-M3-24-MP24F-MP24F-A-50M	50

Veseloptiese samestelling, multimodus (OM3), 24F, MPO-24 tot MPO-24, Polariteit B, LSZH
Onderdeelnommer	Lengte (m)
MT-M3-24-MP24F-MP24F-B-3M	3
MT-M3-24-MP24F-MP24F-B-5M	5
MT-M3-24-MP24F-MP24F-B-10M	10
MT-M3-24-MP24F-MP24F-B-15M	15
MT-M3-24-MP24F-MP24F-B-20M	20
MT-M3-24-MP24F-MP24F-B-25M	25
MT-M3-24-MP24F-MP24F-B-30M	30
MT-M3-24-MP24F-MP24F-B-35M	35
MT-M3-24-MP24F-MP24F-B-40M	40
MT-M3-24-MP24F-MP24F-B-45M	45
MT-M3-24-MP24F-MP24F-B-50M	50

Veseloptiese samestelling, multimodus (OM3), 24F, MPO-24 tot MPO-24, Polariteit C, LSZH
Onderdeelnommer	Lengte (m)
MT-M3-24-MP24F-MP24F-C-3M	3
MT-M3-24-MP24F-MP24F-C-5M	5
MT-M3-24-MP24F-MP24F-C-10M	10
MT-M3-24-MP24F-MP24F-C-15M	15
MT-M3-24-MP24F-MP24F-C-20M	20
MT-M3-24-MP24F-MP24F-C-25M	25
MT-M3-24-MP24F-MP24F-C-30M	30
MT-M3-24-MP24F-MP24F-C-35M	35
MT-M3-24-MP24F-MP24F-C-40M	40
MT-M3-24-MP24F-MP24F-C-45M	45
MT-M3-24-MP24F-MP24F-C-50M	50

Veseloptiese samestelling, multimodus (OM3), 24F, MPO-24 tot MPO-24, Polariteit A, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M3-24-MP24F-MP24F-A-3M-C000	3
MT-M3-24-MP24F-MP24F-A-5M-C000	5
MT-M3-24-MP24F-MP24F-A-10M-C000	10
MT-M3-24-MP24F-MP24F-A-15M-C000	15
MT-M3-24-MP24F-MP24F-A-20M-C000	20
MT-M3-24-MP24F-MP24F-A-25M-C000	25
MT-M3-24-MP24F-MP24F-A-30M-C000	30
MT-M3-24-MP24F-MP24F-A-35M-C000	35
MT-M3-24-MP24F-MP24F-A-40M-C000	40
MT-M3-24-MP24F-MP24F-A-45M-C000	45
MT-M3-24-MP24F-MP24F-A-50M-C000	50

Veseloptiese samestelling, multimodus (OM3), 24F, MPO-24 tot MPO-24, Polariteit B, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M3-24-MP24F-MP24F-B-3M-C000	3
MT-M3-24-MP24F-MP24F-B-5M-C000	5
MT-M3-24-MP24F-MP24F-B-10M-C000	10
MT-M3-24-MP24F-MP24F-B-15M-C000	15
MT-M3-24-MP24F-MP24F-B-20M-C000	20
MT-M3-24-MP24F-MP24F-B-25M-C000	25
MT-M3-24-MP24F-MP24F-B-30M-C000	30
MT-M3-24-MP24F-MP24F-B-35M-C000	35
MT-M3-24-MP24F-MP24F-B-40M-C000	40
MT-M3-24-MP24F-MP24F-B-45M-C000	45
MT-M3-24-MP24F-MP24F-B-50M-C000	50

Veseloptiese samestelling, multimodus (OM3), 24F, MPO-24 tot MPO-24, Polariteit C, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M3-24-MP24F-MP24F-C-3M-C000	3
MT-M3-24-MP24F-MP24F-C-5M-C000	5
MT-M3-24-MP24F-MP24F-C-10M-C000	10
MT-M3-24-MP24F-MP24F-C-15M-C000	15
MT-M3-24-MP24F-MP24F-C-20M-C000	20
MT-M3-24-MP24F-MP24F-C-25M-C000	25
MT-M3-24-MP24F-MP24F-C-30M-C000	30
MT-M3-24-MP24F-MP24F-C-35M-C000	35
MT-M3-24-MP24F-MP24F-C-40M-C000	40
MT-M3-24-MP24F-MP24F-C-45M-C000	45
MT-M3-24-MP24F-MP24F-C-50M-C000	50

Veseloptiese samestelling, multimodus (OM4), 8F, MPO-8 tot MPO-8, Polariteit A, LSZH
Onderdeelnommer	Lengte (m)
MT-M4-8-MP8F-MP8F-A-3M	3
MT-M4-8-MP8F-MP8F-A-5M	5
MT-M4-8-MP8F-MP8F-A-10M	10
MT-M4-8-MP8F-MP8F-A-15M	15
MT-M4-8-MP8F-MP8F-A-20M	20
MT-M4-8-MP8F-MP8F-A-25M	25
MT-M4-8-MP8F-MP8F-A-30M	30
MT-M4-8-MP8F-MP8F-A-35M	35
MT-M4-8-MP8F-MP8F-A-40M	40
MT-M4-8-MP8F-MP8F-A-45M	45
MT-M4-8-MP8F-MP8F-A-50M	50

Veseloptiese samestelling, multimodus (OM4), 8F, MPO-8 tot MPO-8, Polariteit B, LSZH
Onderdeelnommer	Lengte (m)
MT-M4-8-MP8F-MP8F-B-3M	3
MT-M4-8-MP8F-MP8F-B-5M	5
MT-M4-8-MP8F-MP8F-B-10M	10
MT-M4-8-MP8F-MP8F-B-15M	15
MT-M4-8-MP8F-MP8F-B-20M	20
MT-M4-8-MP8F-MP8F-B-25M	25
MT-M4-8-MP8F-MP8F-B-30M	30
MT-M4-8-MP8F-MP8F-B-35M	35
MT-M4-8-MP8F-MP8F-B-40M	40
MT-M4-8-MP8F-MP8F-B-45M	45
MT-M4-8-MP8F-MP8F-B-50M	50

Veseloptiese samestelling, multimodus (OM4), 8F, MPO-8 tot MPO-8, Polariteit C, LSZH
Onderdeelnommer	Lengte (m)
MT-M4-8-MP8F-MP8F-C-3M	3
MT-M4-8-MP8F-MP8F-C-5M	5
MT-M4-8-MP8F-MP8F-C-10M	10
MT-M4-8-MP8F-MP8F-C-15M	15
MT-M4-8-MP8F-MP8F-C-20M	20
MT-M4-8-MP8F-MP8F-C-25M	25
MT-M4-8-MP8F-MP8F-C-30M	30
MT-M4-8-MP8F-MP8F-C-35M	35
MT-M4-8-MP8F-MP8F-C-40M	40
MT-M4-8-MP8F-MP8F-C-45M	45
MT-M4-8-MP8F-MP8F-C-50M	50

Veseloptiese samestelling, multimodus (OM4), 8F, MPO-8 tot MPO-8, Polariteit A, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M4-8-MP8F-MP8F-A-3M-C000	3
MT-M4-8-MP8F-MP8F-A-5M-C000	5
MT-M4-8-MP8F-MP8F-A-10M-C000	10
MT-M4-8-MP8F-MP8F-A-15M-C000	15
MT-M4-8-MP8F-MP8F-A-20M-C000	20
MT-M4-8-MP8F-MP8F-A-25M-C000	25
MT-M4-8-MP8F-MP8F-A-30M-C000	30
MT-M4-8-MP8F-MP8F-A-35M-C000	35
MT-M4-8-MP8F-MP8F-A-40M-C000	40
MT-M4-8-MP8F-MP8F-A-45M-C000	45
MT-M4-8-MP8F-MP8F-A-50M-C000	50

Veseloptiese samestelling, multimodus (OM4), 8F, MPO-8 tot MPO-8, Polariteit B, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M4-8-MP8F-MP8F-B-3M-C000	3
MT-M4-8-MP8F-MP8F-B-5M-C000	5
MT-M4-8-MP8F-MP8F-B-10M-C000	10
MT-M4-8-MP8F-MP8F-B-15M-C000	15
MT-M4-8-MP8F-MP8F-B-20M-C000	20
MT-M4-8-MP8F-MP8F-B-25M-C000	25
MT-M4-8-MP8F-MP8F-B-30M-C000	30
MT-M4-8-MP8F-MP8F-B-35M-C000	35
MT-M4-8-MP8F-MP8F-B-40M-C000	40
MT-M4-8-MP8F-MP8F-B-45M-C000	45
MT-M4-8-MP8F-MP8F-B-50M-C000	50

Veseloptiese samestelling, multimodus (OM4), 8F, MPO-8 tot MPO-8, Polariteit C, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M4-8-MP8F-MP8F-C-3M-C000	3
MT-M4-8-MP8F-MP8F-C-5M-C000	5
MT-M4-8-MP8F-MP8F-C-10M-C000	10
MT-M4-8-MP8F-MP8F-C-15M-C000	15
MT-M4-8-MP8F-MP8F-C-20M-C000	20
MT-M4-8-MP8F-MP8F-C-25M-C000	25
MT-M4-8-MP8F-MP8F-C-30M-C000	30
MT-M4-8-MP8F-MP8F-C-35M-C000	35
MT-M4-8-MP8F-MP8F-C-40M-C000	40
MT-M4-8-MP8F-MP8F-C-45M-C000	45
MT-M4-8-MP8F-MP8F-C-50M-C000	50

Veseloptiese samestelling, multimodus (OM4), 12F, MPO-12 tot MPO-12, Polariteit A, LSZH
Onderdeelnommer	Lengte (m)
MT-M4-12-MPOF-MPOF-A-3M	3
MT-M4-12-MPOF-MPOF-A-5M	5
MT-M4-12-MPOF-MPOF-A-10M	10
MT-M4-12-MPOF-MPOF-A-15M	15
MT-M4-12-MPOF-MPOF-A-20M	20
MT-M4-12-MPOF-MPOF-A-25M	25
MT-M4-12-MPOF-MPOF-A-30M	30
MT-M4-12-MPOF-MPOF-A-35M	35
MT-M4-12-MPOF-MPOF-A-40M	40
MT-M4-12-MPOF-MPOF-A-45M	45
MT-M4-12-MPOF-MPOF-A-50M	50

Veseloptiese samestelling, multimodus (OM4), 12F, MPO-12 tot MPO-12, Polariteit B, LSZH
Onderdeelnommer	Lengte (m)
MT-M4-12-MPOF-MPOF-B-3M	3
MT-M4-12-MPOF-MPOF-B-5M	5
MT-M4-12-MPOF-MPOF-B-10M	10
MT-M4-12-MPOF-MPOF-B-15M	15
MT-M4-12-MPOF-MPOF-B-20M	20
MT-M4-12-MPOF-MPOF-B-25M	25
MT-M4-12-MPOF-MPOF-B-30M	30
MT-M4-12-MPOF-MPOF-B-35M	35
MT-M4-12-MPOF-MPOF-B-40M	40
MT-M4-12-MPOF-MPOF-B-45M	45
MT-M4-12-MPOF-MPOF-B-50M	50

Veseloptiese samestelling, multimodus (OM4), 12F, MPO-12 tot MPO-12, Polariteit C, LSZH
Onderdeelnommer	Lengte (m)
MT-M4-12-MPOF-MPOF-C-3M	3
MT-M4-12-MPOF-MPOF-C-5M	5
MT-M4-12-MPOF-MPOF-C-10M	10
MT-M4-12-MPOF-MPOF-C-15M	15
MT-M4-12-MPOF-MPOF-C-20M	20
MT-M4-12-MPOF-MPOF-C-25M	25
MT-M4-12-MPOF-MPOF-C-30M	30
MT-M4-12-MPOF-MPOF-C-35M	35
MT-M4-12-MPOF-MPOF-C-40M	40
MT-M4-12-MPOF-MPOF-C-45M	45
MT-M4-12-MPOF-MPOF-C-50M	50

Veseloptiese samestelling, multimodus (OM4), 12F, MPO-12 tot MPO-12, Polariteit A, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M4-12-MPOF-MPOF-A-3M-C000	3
MT-M4-12-MPOF-MPOF-A-5M-C000	5
MT-M4-12-MPOF-MPOF-A-10M-C000	10
MT-M4-12-MPOF-MPOF-A-15M-C000	15
MT-M4-12-MPOF-MPOF-A-20M-C000	20
MT-M4-12-MPOF-MPOF-A-25M-C000	25
MT-M4-12-MPOF-MPOF-A-30M-C000	30
MT-M4-12-MPOF-MPOF-A-35M-C000	35
MT-M4-12-MPOF-MPOF-A-40M-C000	40
MT-M4-12-MPOF-MPOF-A-45M-C000	45
MT-M4-12-MPOF-MPOF-A-50M-C000	50

Veseloptiese samestelling, multimodus (OM4), 12F, MPO-12 tot MPO-12, Polariteit B, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M4-12-MPOF-MPOF-B-3M-C000	3
MT-M4-12-MPOF-MPOF-B-5M-C000	5
MT-M4-12-MPOF-MPOF-B-10M-C000	10
MT-M4-12-MPOF-MPOF-B-15M-C000	15
MT-M4-12-MPOF-MPOF-B-20M-C000	20
MT-M4-12-MPOF-MPOF-B-25M-C000	25
MT-M4-12-MPOF-MPOF-B-30M-C000	30
MT-M4-12-MPOF-MPOF-B-35M-C000	35
MT-M4-12-MPOF-MPOF-B-40M-C000	40
MT-M4-12-MPOF-MPOF-B-45M-C000	45
MT-M4-12-MPOF-MPOF-B-50M-C000	50

Veseloptiese samestelling, multimodus (OM4), 12F, MPO-12 tot MPO-12, Polariteit C, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M4-12-MPOF-MPOF-C-3M-C000	3
MT-M4-12-MPOF-MPOF-C-5M-C000	5
MT-M4-12-MPOF-MPOF-C-10M-C000	10
MT-M4-12-MPOF-MPOF-C-15M-C000	15
MT-M4-12-MPOF-MPOF-C-20M-C000	20
MT-M4-12-MPOF-MPOF-C-25M-C000	25
MT-M4-12-MPOF-MPOF-C-30M-C000	30
MT-M4-12-MPOF-MPOF-C-35M-C000	35
MT-M4-12-MPOF-MPOF-C-40M-C000	40
MT-M4-12-MPOF-MPOF-C-45M-C000	45
MT-M4-12-MPOF-MPOF-C-50M-C000	50

Veseloptiese samestelling, multimodus (OM4), 24F, MPO-24 tot MPO-24, Polariteit A, LSZH
Onderdeelnommer	Lengte (m)
MT-M4-24-MP24F-MP24F-A-3M	3
MT-M4-24-MP24F-MP24F-A-5M	5
MT-M4-24-MP24F-MP24F-A-10M	10
MT-M4-24-MP24F-MP24F-A-15M	15
MT-M4-24-MP24F-MP24F-A-20M	20
MT-M4-24-MP24F-MP24F-A-25M	25
MT-M4-24-MP24F-MP24F-A-30M	30
MT-M4-24-MP24F-MP24F-A-35M	35
MT-M4-24-MP24F-MP24F-A-40M	40
MT-M4-24-MP24F-MP24F-A-45M	45
MT-M4-24-MP24F-MP24F-A-50M	50

Veseloptiese samestelling, multimodus (OM4), 24F, MPO-24 tot MPO-24, Polariteit B, LSZH
Onderdeelnommer	Lengte (m)
MT-M4-24-MP24F-MP24F-B-3M	3
MT-M4-24-MP24F-MP24F-B-5M	5
MT-M4-24-MP24F-MP24F-B-10M	10
MT-M4-24-MP24F-MP24F-B-15M	15
MT-M4-24-MP24F-MP24F-B-20M	20
MT-M4-24-MP24F-MP24F-B-25M	25
MT-M4-24-MP24F-MP24F-B-30M	30
MT-M4-24-MP24F-MP24F-B-35M	35
MT-M4-24-MP24F-MP24F-B-40M	40
MT-M4-24-MP24F-MP24F-B-45M	45
MT-M4-24-MP24F-MP24F-B-50M	50

Veseloptiese samestelling, multimodus (OM4), 24F, MPO-24 tot MPO-24, Polariteit C, LSZH
Onderdeelnommer	Lengte (m)
MT-M4-24-MP24F-MP24F-C-3M	3
MT-M4-24-MP24F-MP24F-C-5M	5
MT-M4-24-MP24F-MP24F-C-10M	10
MT-M4-24-MP24F-MP24F-C-15M	15
MT-M4-24-MP24F-MP24F-C-20M	20
MT-M4-24-MP24F-MP24F-C-25M	25
MT-M4-24-MP24F-MP24F-C-30M	30
MT-M4-24-MP24F-MP24F-C-35M	35
MT-M4-24-MP24F-MP24F-C-40M	40
MT-M4-24-MP24F-MP24F-C-45M	45
MT-M4-24-MP24F-MP24F-C-50M	50

Veseloptiese samestelling, multimodus (OM4), 24F, MPO-24 tot MPO-24, Polariteit A, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M4-24-MP24F-MP24F-A-3M-C000	3
MT-M4-24-MP24F-MP24F-A-5M-C000	5
MT-M4-24-MP24F-MP24F-A-10M-C000	10
MT-M4-24-MP24F-MP24F-A-15M-C000	15
MT-M4-24-MP24F-MP24F-A-20M-C000	20
MT-M4-24-MP24F-MP24F-A-25M-C000	25
MT-M4-24-MP24F-MP24F-A-30M-C000	30
MT-M4-24-MP24F-MP24F-A-35M-C000	35
MT-M4-24-MP24F-MP24F-A-40M-C000	40
MT-M4-24-MP24F-MP24F-A-45M-C000	45
MT-M4-24-MP24F-MP24F-A-50M-C000	50

Veseloptiese samestelling, multimodus (OM4), 24F, MPO-24 tot MPO-24, Polariteit B, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M4-24-MP24F-MP24F-B-3M-C000	3
MT-M4-24-MP24F-MP24F-B-5M-C000	5
MT-M4-24-MP24F-MP24F-B-10M-C000	10
MT-M4-24-MP24F-MP24F-B-15M-C000	15
MT-M4-24-MP24F-MP24F-B-20M-C000	20
MT-M4-24-MP24F-MP24F-B-25M-C000	25
MT-M4-24-MP24F-MP24F-B-30M-C000	30
MT-M4-24-MP24F-MP24F-B-35M-C000	35
MT-M4-24-MP24F-MP24F-B-40M-C000	40
MT-M4-24-MP24F-MP24F-B-45M-C000	45
MT-M4-24-MP24F-MP24F-B-50M-C000	50

Veseloptiese samestelling, multimodus (OM4), 24F, MPO-24 tot MPO-24, Polariteit C, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M4-24-MP24F-MP24F-C-3M-C000	3
MT-M4-24-MP24F-MP24F-C-5M-C000	5
MT-M4-24-MP24F-MP24F-C-10M-C000	10
MT-M4-24-MP24F-MP24F-C-15M-C000	15
MT-M4-24-MP24F-MP24F-C-20M-C000	20
MT-M4-24-MP24F-MP24F-C-25M-C000	25
MT-M4-24-MP24F-MP24F-C-30M-C000	30
MT-M4-24-MP24F-MP24F-C-35M-C000	35
MT-M4-24-MP24F-MP24F-C-40M-C000	40
MT-M4-24-MP24F-MP24F-C-45M-C000	45
MT-M4-24-MP24F-MP24F-C-50M-C000	50

Veseloptiese samestelling, multimodus (OM5), 8F, MPO-8 tot MPO-8, Polariteit A, LSZH
Onderdeelnommer	Lengte (m)
MT-M5-8-MP8F-MP8F-A-3M	3
MT-M5-8-MP8F-MP8F-A-5M	5
MT-M5-8-MP8F-MP8F-A-10M	10
MT-M5-8-MP8F-MP8F-A-15M	15
MT-M5-8-MP8F-MP8F-A-20M	20
MT-M5-8-MP8F-MP8F-A-25M	25
MT-M5-8-MP8F-MP8F-A-30M	30
MT-M5-8-MP8F-MP8F-A-35M	35
MT-M5-8-MP8F-MP8F-A-40M	40
MT-M5-8-MP8F-MP8F-A-45M	45
MT-M5-8-MP8F-MP8F-A-50M	50

Veseloptiese samestelling, multimodus (OM5), 8F, MPO-8 tot MPO-8, Polariteit B, LSZH
Onderdeelnommer	Lengte (m)
MT-M5-8-MP8F-MP8F-B-3M	3
MT-M5-8-MP8F-MP8F-B-5M	5
MT-M5-8-MP8F-MP8F-B-10M	10
MT-M5-8-MP8F-MP8F-B-15M	15
MT-M5-8-MP8F-MP8F-B-20M	20
MT-M5-8-MP8F-MP8F-B-25M	25
MT-M5-8-MP8F-MP8F-B-30M	30
MT-M5-8-MP8F-MP8F-B-35M	35
MT-M5-8-MP8F-MP8F-B-40M	40
MT-M5-8-MP8F-MP8F-B-45M	45
MT-M5-8-MP8F-MP8F-B-50M	50

Veseloptiese samestelling, multimodus (OM5), 8F, MPO-8 tot MPO-8, Polariteit C, LSZH
Onderdeelnommer	Lengte (m)
MT-M5-8-MP8F-MP8F-C-3M	3
MT-M5-8-MP8F-MP8F-C-5M	5
MT-M5-8-MP8F-MP8F-C-10M	10
MT-M5-8-MP8F-MP8F-C-15M	15
MT-M5-8-MP8F-MP8F-C-20M	20
MT-M5-8-MP8F-MP8F-C-25M	25
MT-M5-8-MP8F-MP8F-C-30M	30
MT-M5-8-MP8F-MP8F-C-35M	35
MT-M5-8-MP8F-MP8F-C-40M	40
MT-M5-8-MP8F-MP8F-C-45M	45
MT-M5-8-MP8F-MP8F-C-50M	50

Veseloptiese samestelling, multimodus (OM5), 8F, MPO-8 tot MPO-8, Polariteit A, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M5-8-MP8F-MP8F-A-3M-C000	3
MT-M5-8-MP8F-MP8F-A-5M-C000	5
MT-M5-8-MP8F-MP8F-A-10M-C000	10
MT-M5-8-MP8F-MP8F-A-15M-C000	15
MT-M5-8-MP8F-MP8F-A-20M-C000	20
MT-M5-8-MP8F-MP8F-A-25M-C000	25
MT-M5-8-MP8F-MP8F-A-30M-C000	30
MT-M5-8-MP8F-MP8F-A-35M-C000	35
MT-M5-8-MP8F-MP8F-A-40M-C000	40
MT-M5-8-MP8F-MP8F-A-45M-C000	45
MT-M5-8-MP8F-MP8F-A-50M-C000	50

Veseloptiese samestelling, multimodus (OM5), 8F, MPO-8 tot MPO-8, Polariteit B, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M5-8-MP8F-MP8F-B-3M-C000	3
MT-M5-8-MP8F-MP8F-B-5M-C000	5
MT-M5-8-MP8F-MP8F-B-10M-C000	10
MT-M5-8-MP8F-MP8F-B-15M-C000	15
MT-M5-8-MP8F-MP8F-B-20M-C000	20
MT-M5-8-MP8F-MP8F-B-25M-C000	25
MT-M5-8-MP8F-MP8F-B-30M-C000	30
MT-M5-8-MP8F-MP8F-B-35M-C000	35
MT-M5-8-MP8F-MP8F-B-40M-C000	40
MT-M5-8-MP8F-MP8F-B-45M-C000	45
MT-M5-8-MP8F-MP8F-B-50M-C000	50

Veseloptiese samestelling, multimodus (OM5), 8F, MPO-8 tot MPO-8, Polariteit C, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M5-8-MP8F-MP8F-C-3M-C000	3
MT-M5-8-MP8F-MP8F-C-5M-C000	5
MT-M5-8-MP8F-MP8F-C-10M-C000	10
MT-M5-8-MP8F-MP8F-C-15M-C000	15
MT-M5-8-MP8F-MP8F-C-20M-C000	20
MT-M5-8-MP8F-MP8F-C-25M-C000	25
MT-M5-8-MP8F-MP8F-C-30M-C000	30
MT-M5-8-MP8F-MP8F-C-35M-C000	35
MT-M5-8-MP8F-MP8F-C-40M-C000	40
MT-M5-8-MP8F-MP8F-C-45M-C000	45
MT-M5-8-MP8F-MP8F-C-50M-C000	50

Veseloptiese samestelling, multimodus (OM5), 12F, MPO-12 tot MPO-12, Polariteit A, LSZH
Onderdeelnommer	Lengte (m)
MT-M5-12-MPOF-MPOF-A-3M	3
MT-M5-12-MPOF-MPOF-A-5M	5
MT-M5-12-MPOF-MPOF-A-10M	10
MT-M5-12-MPOF-MPOF-A-15M	15
MT-M5-12-MPOF-MPOF-A-20M	20
MT-M5-12-MPOF-MPOF-A-25M	25
MT-M5-12-MPOF-MPOF-A-30M	30
MT-M5-12-MPOF-MPOF-A-35M	35
MT-M5-12-MPOF-MPOF-A-40M	40
MT-M5-12-MPOF-MPOF-A-45M	45
MT-M5-12-MPOF-MPOF-A-50M	50

Veseloptiese samestelling, multimodus (OM5), 12F, MPO-12 tot MPO-12, Polariteit B, LSZH
Onderdeelnommer	Lengte (m)
MT-M5-12-MPOF-MPOF-B-3M	3
MT-M5-12-MPOF-MPOF-B-5M	5
MT-M5-12-MPOF-MPOF-B-10M	10
MT-M5-12-MPOF-MPOF-B-15M	15
MT-M5-12-MPOF-MPOF-B-20M	20
MT-M5-12-MPOF-MPOF-B-25M	25
MT-M5-12-MPOF-MPOF-B-30M	30
MT-M5-12-MPOF-MPOF-B-35M	35
MT-M5-12-MPOF-MPOF-B-40M	40
MT-M5-12-MPOF-MPOF-B-45M	45
MT-M5-12-MPOF-MPOF-B-50M	50

Veseloptiese samestelling, multimodus (OM5), 12F, MPO-12 tot MPO-12, Polariteit C, LSZH
Onderdeelnommer	Lengte (m)
MT-M5-12-MPOF-MPOF-C-3M	3
MT-M5-12-MPOF-MPOF-C-5M	5
MT-M5-12-MPOF-MPOF-C-10M	10
MT-M5-12-MPOF-MPOF-C-15M	15
MT-M5-12-MPOF-MPOF-C-20M	20
MT-M5-12-MPOF-MPOF-C-25M	25
MT-M5-12-MPOF-MPOF-C-30M	30
MT-M5-12-MPOF-MPOF-C-35M	35
MT-M5-12-MPOF-MPOF-C-40M	40
MT-M5-12-MPOF-MPOF-C-45M	45
MT-M5-12-MPOF-MPOF-C-50M	50

Veseloptiese samestelling, multimodus (OM5), 12F, MPO-12 tot MPO-12, Polariteit A, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M5-12-MPOF-MPOF-A-3M-C000	3
MT-M5-12-MPOF-MPOF-A-5M-C000	5
MT-M5-12-MPOF-MPOF-A-10M-C000	10
MT-M5-12-MPOF-MPOF-A-15M-C000	15
MT-M5-12-MPOF-MPOF-A-20M-C000	20
MT-M5-12-MPOF-MPOF-A-25M-C000	25
MT-M5-12-MPOF-MPOF-A-30M-C000	30
MT-M5-12-MPOF-MPOF-A-35M-C000	35
MT-M5-12-MPOF-MPOF-A-40M-C000	40
MT-M5-12-MPOF-MPOF-A-45M-C000	45
MT-M5-12-MPOF-MPOF-A-50M-C000	50

Veseloptiese samestelling, multimodus (OM5), 12F, MPO-12 tot MPO-12, Polariteit B, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M5-12-MPOF-MPOF-B-3M-C000	3
MT-M5-12-MPOF-MPOF-B-5M-C000	5
MT-M5-12-MPOF-MPOF-B-10M-C000	10
MT-M5-12-MPOF-MPOF-B-15M-C000	15
MT-M5-12-MPOF-MPOF-B-20M-C000	20
MT-M5-12-MPOF-MPOF-B-25M-C000	25
MT-M5-12-MPOF-MPOF-B-30M-C000	30
MT-M5-12-MPOF-MPOF-B-35M-C000	35
MT-M5-12-MPOF-MPOF-B-40M-C000	40
MT-M5-12-MPOF-MPOF-B-45M-C000	45
MT-M5-12-MPOF-MPOF-B-50M-C000	50

Veseloptiese samestelling, multimodus (OM5), 12F, MPO-12 tot MPO-12, Polariteit C, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M5-12-MPOF-MPOF-C-3M-C000	3
MT-M5-12-MPOF-MPOF-C-5M-C000	5
MT-M5-12-MPOF-MPOF-C-10M-C000	10
MT-M5-12-MPOF-MPOF-C-15M-C000	15
MT-M5-12-MPOF-MPOF-C-20M-C000	20
MT-M5-12-MPOF-MPOF-C-25M-C000	25
MT-M5-12-MPOF-MPOF-C-30M-C000	30
MT-M5-12-MPOF-MPOF-C-35M-C000	35
MT-M5-12-MPOF-MPOF-C-40M-C000	40
MT-M5-12-MPOF-MPOF-C-45M-C000	45
MT-M5-12-MPOF-MPOF-C-50M-C000	50

Veseloptiese samestelling, multimodus (OM5), 24F, MPO-24 tot MPO-24, Polariteit A, LSZH
Onderdeelnommer	Lengte (m)
MT-M5-24-MP24F-MP24F-A-3M	3
MT-M5-24-MP24F-MP24F-A-5M	5
MT-M5-24-MP24F-MP24F-A-10M	10
MT-M5-24-MP24F-MP24F-A-15M	15
MT-M5-24-MP24F-MP24F-A-20M	20
MT-M5-24-MP24F-MP24F-A-25M	25
MT-M5-24-MP24F-MP24F-A-30M	30
MT-M5-24-MP24F-MP24F-A-35M	35
MT-M5-24-MP24F-MP24F-A-40M	40
MT-M5-24-MP24F-MP24F-A-45M	45
MT-M5-24-MP24F-MP24F-A-50M	50

Veseloptiese samestelling, multimodus (OM5), 24F, MPO-24 tot MPO-24, Polariteit B, LSZH
Onderdeelnommer	Lengte (m)
MT-M5-24-MP24F-MP24F-B-3M	3
MT-M5-24-MP24F-MP24F-B-5M	5
MT-M5-24-MP24F-MP24F-B-10M	10
MT-M5-24-MP24F-MP24F-B-15M	15
MT-M5-24-MP24F-MP24F-B-20M	20
MT-M5-24-MP24F-MP24F-B-25M	25
MT-M5-24-MP24F-MP24F-B-30M	30
MT-M5-24-MP24F-MP24F-B-35M	35
MT-M5-24-MP24F-MP24F-B-40M	40
MT-M5-24-MP24F-MP24F-B-45M	45
MT-M5-24-MP24F-MP24F-B-50M	50

Veseloptiese samestelling, multimodus (OM5), 24F, MPO-24 tot MPO-24, Polariteit C, LSZH
Onderdeelnommer	Lengte (m)
MT-M5-24-MP24F-MP24F-C-3M	3
MT-M5-24-MP24F-MP24F-C-5M	5
MT-M5-24-MP24F-MP24F-C-10M	10
MT-M5-24-MP24F-MP24F-C-15M	15
MT-M5-24-MP24F-MP24F-C-20M	20
MT-M5-24-MP24F-MP24F-C-25M	25
MT-M5-24-MP24F-MP24F-C-30M	30
MT-M5-24-MP24F-MP24F-C-35M	35
MT-M5-24-MP24F-MP24F-C-40M	40
MT-M5-24-MP24F-MP24F-C-45M	45
MT-M5-24-MP24F-MP24F-C-50M	50

Veseloptiese samestelling, multimodus (OM5), 24F, MPO-24 tot MPO-24, Polariteit A, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M5-24-MP24F-MP24F-A-3M-C000	3
MT-M5-24-MP24F-MP24F-A-5M-C000	5
MT-M5-24-MP24F-MP24F-A-10M-C000	10
MT-M5-24-MP24F-MP24F-A-15M-C000	15
MT-M5-24-MP24F-MP24F-A-20M-C000	20
MT-M5-24-MP24F-MP24F-A-25M-C000	25
MT-M5-24-MP24F-MP24F-A-30M-C000	30
MT-M5-24-MP24F-MP24F-A-35M-C000	35
MT-M5-24-MP24F-MP24F-A-40M-C000	40
MT-M5-24-MP24F-MP24F-A-45M-C000	45
MT-M5-24-MP24F-MP24F-A-50M-C000	50

Veseloptiese samestelling, multimodus (OM5), 24F, MPO-24 tot MPO-24, Polariteit B, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M5-24-MP24F-MP24F-B-3M-C000	3
MT-M5-24-MP24F-MP24F-B-5M-C000	5
MT-M5-24-MP24F-MP24F-B-10M-C000	10
MT-M5-24-MP24F-MP24F-B-15M-C000	15
MT-M5-24-MP24F-MP24F-B-20M-C000	20
MT-M5-24-MP24F-MP24F-B-25M-C000	25
MT-M5-24-MP24F-MP24F-B-30M-C000	30
MT-M5-24-MP24F-MP24F-B-35M-C000	35
MT-M5-24-MP24F-MP24F-B-40M-C000	40
MT-M5-24-MP24F-MP24F-B-45M-C000	45
MT-M5-24-MP24F-MP24F-B-50M-C000	50

Veseloptiese samestelling, multimodus (OM5), 24F, MPO-24 tot MPO-24, Polariteit C, LSZH CPR Cca
Onderdeelnommer	Lengte (m)
MT-M5-24-MP24F-MP24F-C-3M-C000	3
MT-M5-24-MP24F-MP24F-C-5M-C000	5
MT-M5-24-MP24F-MP24F-C-10M-C000	10
MT-M5-24-MP24F-MP24F-C-15M-C000	15
MT-M5-24-MP24F-MP24F-C-20M-C000	20
MT-M5-24-MP24F-MP24F-C-25M-C000	25
MT-M5-24-MP24F-MP24F-C-30M-C000	30
MT-M5-24-MP24F-MP24F-C-35M-C000	35
MT-M5-24-MP24F-MP24F-C-40M-C000	40
MT-M5-24-MP24F-MP24F-C-45M-C000	45
MT-M5-24-MP24F-MP24F-C-50M-C000	50
