Vooraf-getermineerde mikrokabel optiesevesel-samestellings bied 'n ultra-kompakte, hoëprestasie-oplossing vir hoëdigtheid-vesel ontplooiings. Gebou op 'n ruimtebesparende SlimCORE™ 3mm buitendeursnee kabel, is hierdie samestellings spesifiek ontwerp vir 12 en 24 vesel toepassings waar roeteverstopping en lugvloei kritiese kwessies is.
Elke samestelling word fabrieks-getermineer met ScaleFibre gehalte koppelstukke en presisie-gepoleer om lae inskakelverlies en hoë terugkeerverlies te lewer. Hierdie prop-en-speel benadering elimineer die behoefte aan komplekse veldlassing, wat installasietyd aansienlik verminder terwyl laboratorium-graad prestasie in datasentrums en ondernemings-ruggrate verseker word.

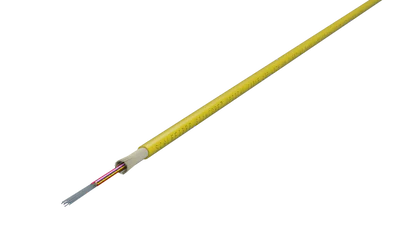

Die 3mm mikrokabel konstruksie bied uitstekende buigsaamheid en 'n drasties verminderde voetspoor in vergelyking met tradisionele styfgebufferde kabels. Beskikbaar in enkelmodus en multimodus variante met LSZH omhulsel, is hierdie samestellings die voorkeurkeuse vir moderne, hoëdigtheid-pleisteromgewings.
Algemeen
Koppelstuktipes
LC/UPC, LC/APC, SC/UPC, SC/APC
Veseltelling
12 of 24 vesels
Kabeldeursnee
3.0 mm
Kabelspesifikasie
Omhulselmateriaal
LSZH (Lae Rook Nul Halogeen)
Veseltipe
SM: G.657.A1 MM: OM4 (Aqua), OM5 (Lime Green)
Inskakelverlies
≤0.25 dB
Bedryfstemperatuur
-20°C tot +70°C

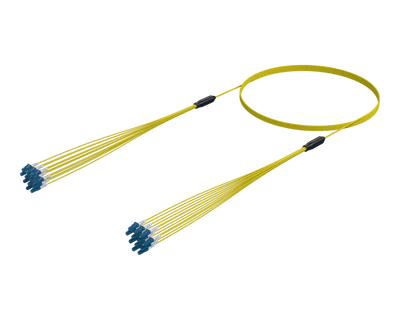

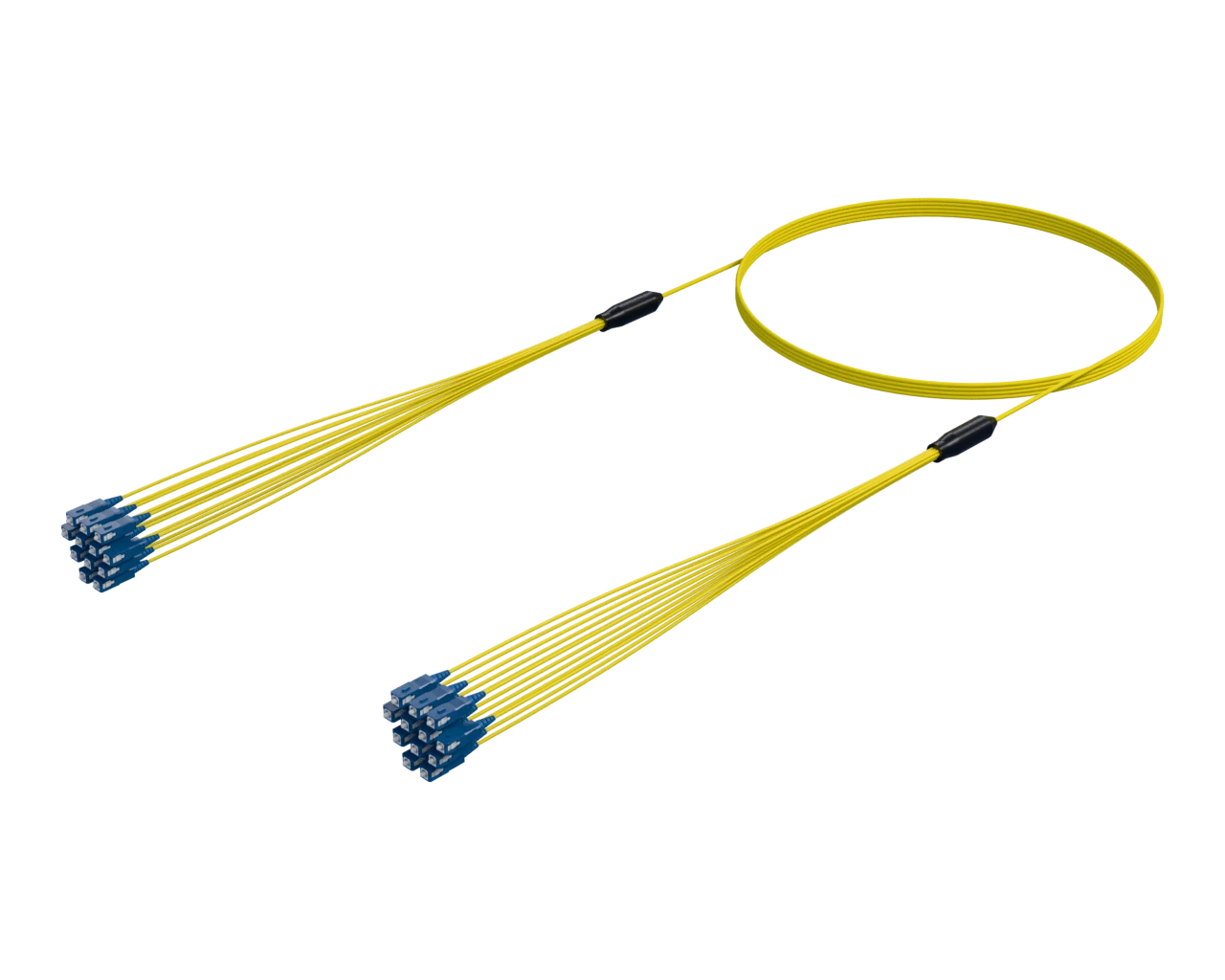

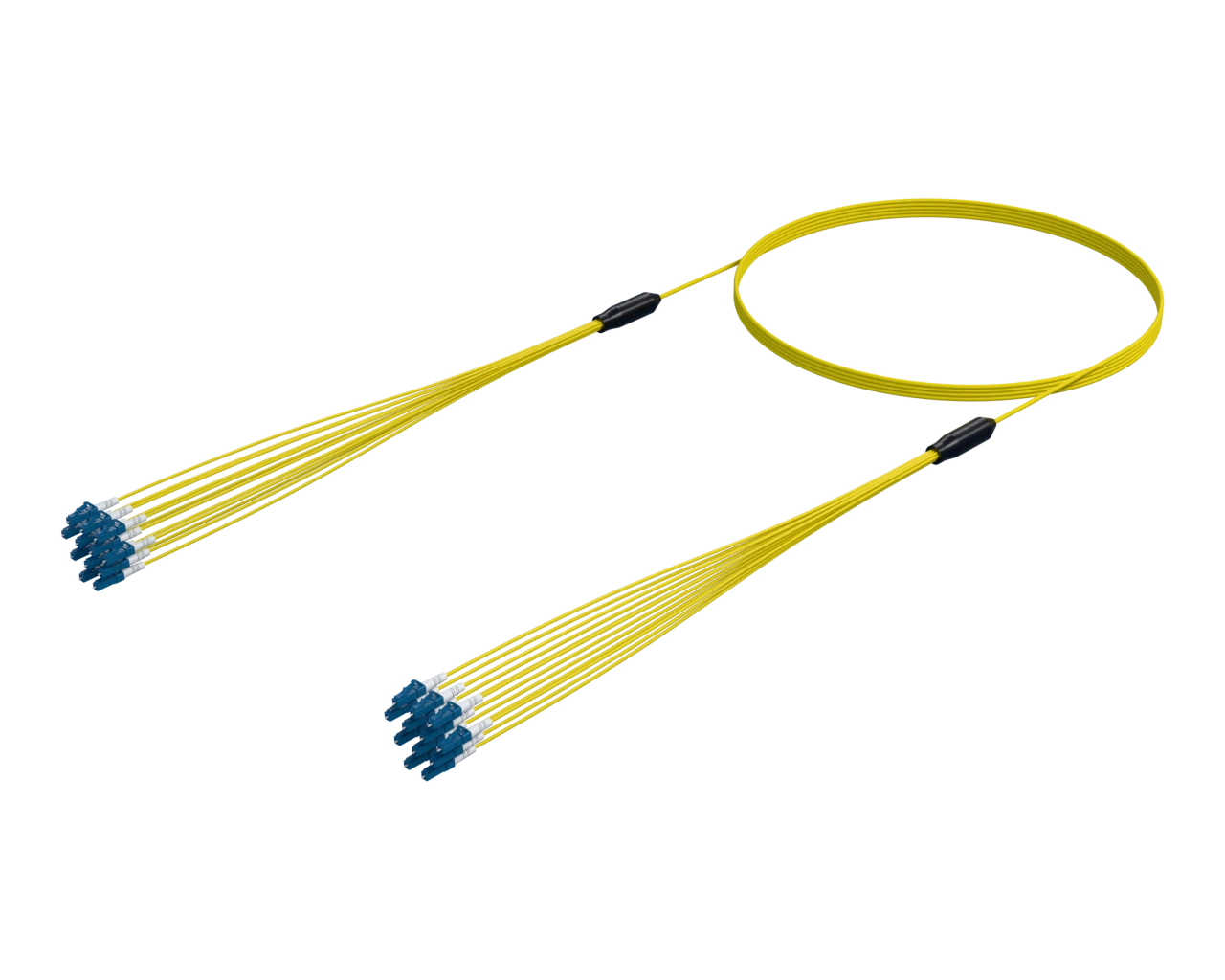

Mikrokabel-samestelling, SM (G.657.A1), 12F, 3mm, LC/UPC na LC/UPC
Deelnommer
Lengte (m)
MCA-S7-12-LC-LC-10M
10
MCA-S7-12-LC-LC-15M
15
MCA-S7-12-LC-LC-20M
20
MCA-S7-12-LC-LC-25M
25
MCA-S7-12-LC-LC-30M
30
MCA-S7-12-LC-LC-40M
40
MCA-S7-12-LC-LC-50M
50
MCA-S7-12-LC-LC-60M
60
MCA-S7-12-LC-LC-70M
70
MCA-S7-12-LC-LC-80M
80
MCA-S7-12-LC-LC-90M
90
MCA-S7-12-LC-LC-100M
100

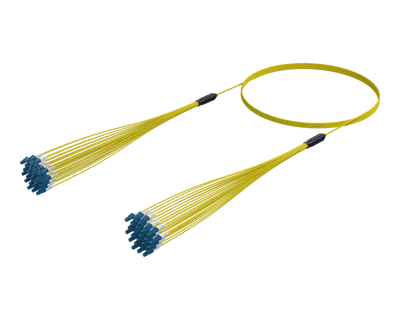

Mikrokabel-samestelling, SM (G.657.A1), 24F, 3mm, LC/UPC na LC/UPC
Deelnommer
Lengte (m)
MCA-S7-24-LC-LC-10M
10
MCA-S7-24-LC-LC-15M
15
MCA-S7-24-LC-LC-20M
20
MCA-S7-24-LC-LC-25M
25
MCA-S7-24-LC-LC-30M
30
MCA-S7-24-LC-LC-40M
40
MCA-S7-24-LC-LC-50M
50
MCA-S7-24-LC-LC-60M
60
MCA-S7-24-LC-LC-70M
70
MCA-S7-24-LC-LC-80M
80
MCA-S7-24-LC-LC-90M
90
MCA-S7-24-LC-LC-100M
100

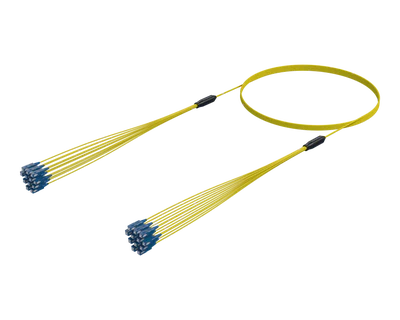

Mikrokabel-samestelling, SM (G.657.A1), 12F, 3mm, SC/UPC na SC/UPC
Deelnommer
Lengte (m)
MCA-S7-12-SC-SC-10M
10
MCA-S7-12-SC-SC-15M
15
MCA-S7-12-SC-SC-20M
20
MCA-S7-12-SC-SC-25M
25
MCA-S7-12-SC-SC-30M
30
MCA-S7-12-SC-SC-40M
40
MCA-S7-12-SC-SC-50M
50
MCA-S7-12-SC-SC-60M
60
MCA-S7-12-SC-SC-70M
70
MCA-S7-12-SC-SC-80M
80
MCA-S7-12-SC-SC-90M
90
MCA-S7-12-SC-SC-100M
100

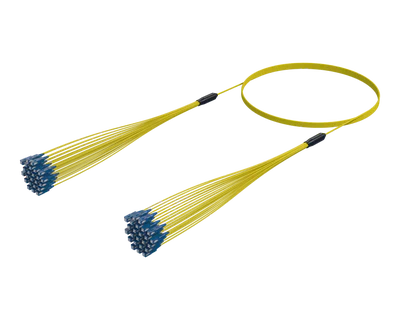

Mikrokabel-samestelling, SM (G.657.A1), 24F, 3mm, SC/UPC na SC/UPC
Deelnommer
Lengte (m)
MCA-S7-24-SC-SC-10M
10
MCA-S7-24-SC-SC-15M
15
MCA-S7-24-SC-SC-20M
20
MCA-S7-24-SC-SC-25M
25
MCA-S7-24-SC-SC-30M
30
MCA-S7-24-SC-SC-40M
40
MCA-S7-24-SC-SC-50M
50
MCA-S7-24-SC-SC-60M
60
MCA-S7-24-SC-SC-70M
70
MCA-S7-24-SC-SC-80M
80
MCA-S7-24-SC-SC-90M
90
MCA-S7-24-SC-SC-100M
100

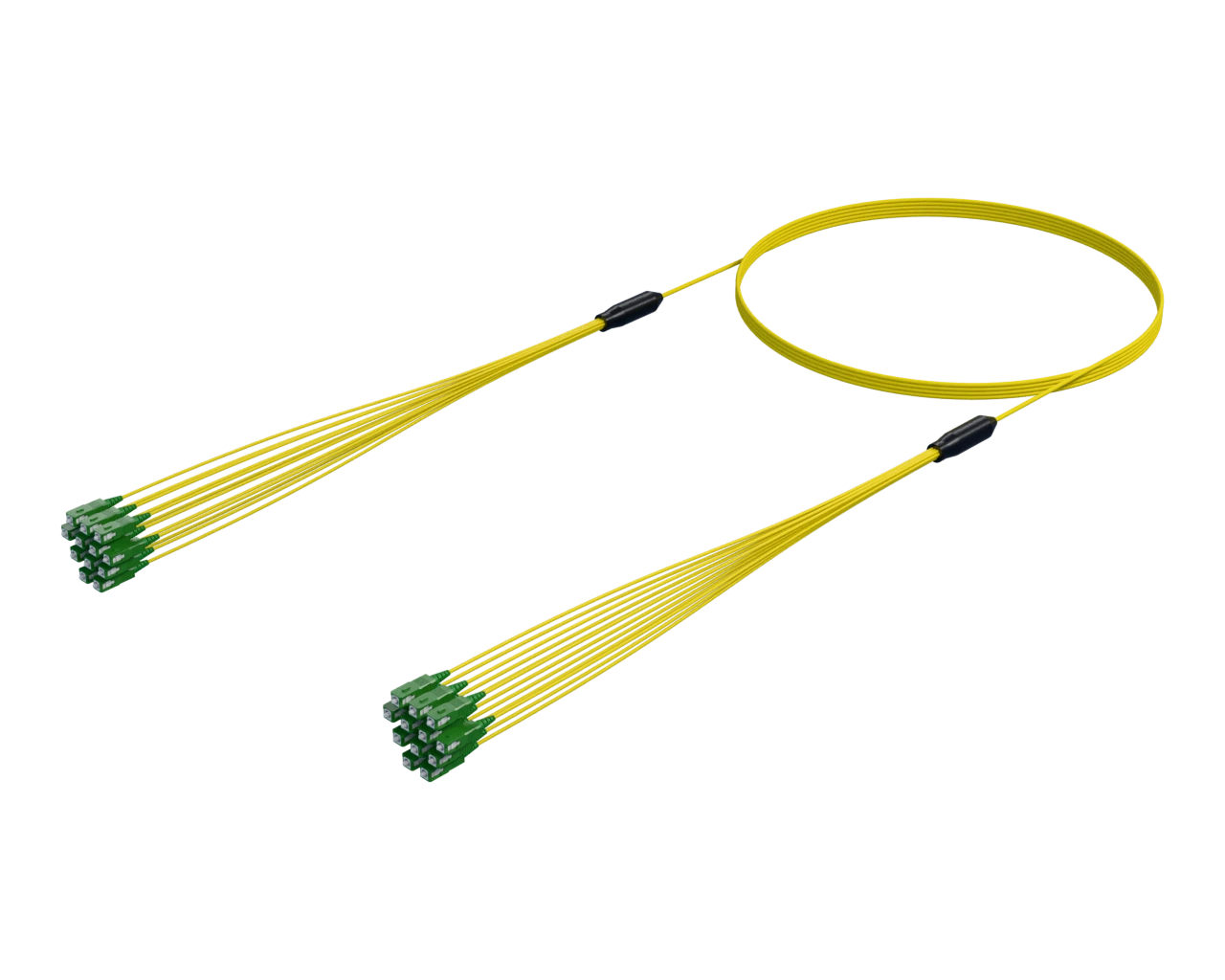

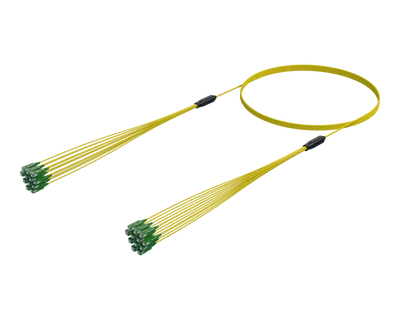

Mikrokabel-samestelling, SM (G.657.A1), 12F, 3mm, SC/APC na SC/APC
Deelnommer
Lengte (m)
MCA-S7-12-SCA-SCA-10M
10
MCA-S7-12-SCA-SCA-15M
15
MCA-S7-12-SCA-SCA-20M
20
MCA-S7-12-SCA-SCA-25M
25
MCA-S7-12-SCA-SCA-30M
30
MCA-S7-12-SCA-SCA-40M
40
MCA-S7-12-SCA-SCA-50M
50
MCA-S7-12-SCA-SCA-60M
60
MCA-S7-12-SCA-SCA-70M
70
MCA-S7-12-SCA-SCA-80M
80
MCA-S7-12-SCA-SCA-90M
90
MCA-S7-12-SCA-SCA-100M
100
Mikrokabel-samestelling, SM (G.657.A1), 24F, 3mm, SC/APC na SC/APC
Deelnommer
Lengte (m)
MCA-S7-24-SCA-SCA-10M
10
MCA-S7-24-SCA-SCA-15M
15
MCA-S7-24-SCA-SCA-20M
20
MCA-S7-24-SCA-SCA-25M
25
MCA-S7-24-SCA-SCA-30M
30
MCA-S7-24-SCA-SCA-40M
40
MCA-S7-24-SCA-SCA-50M
50
MCA-S7-24-SCA-SCA-60M
60
MCA-S7-24-SCA-SCA-70M
70
MCA-S7-24-SCA-SCA-80M
80
MCA-S7-24-SCA-SCA-90M
90
MCA-S7-24-SCA-SCA-100M
100

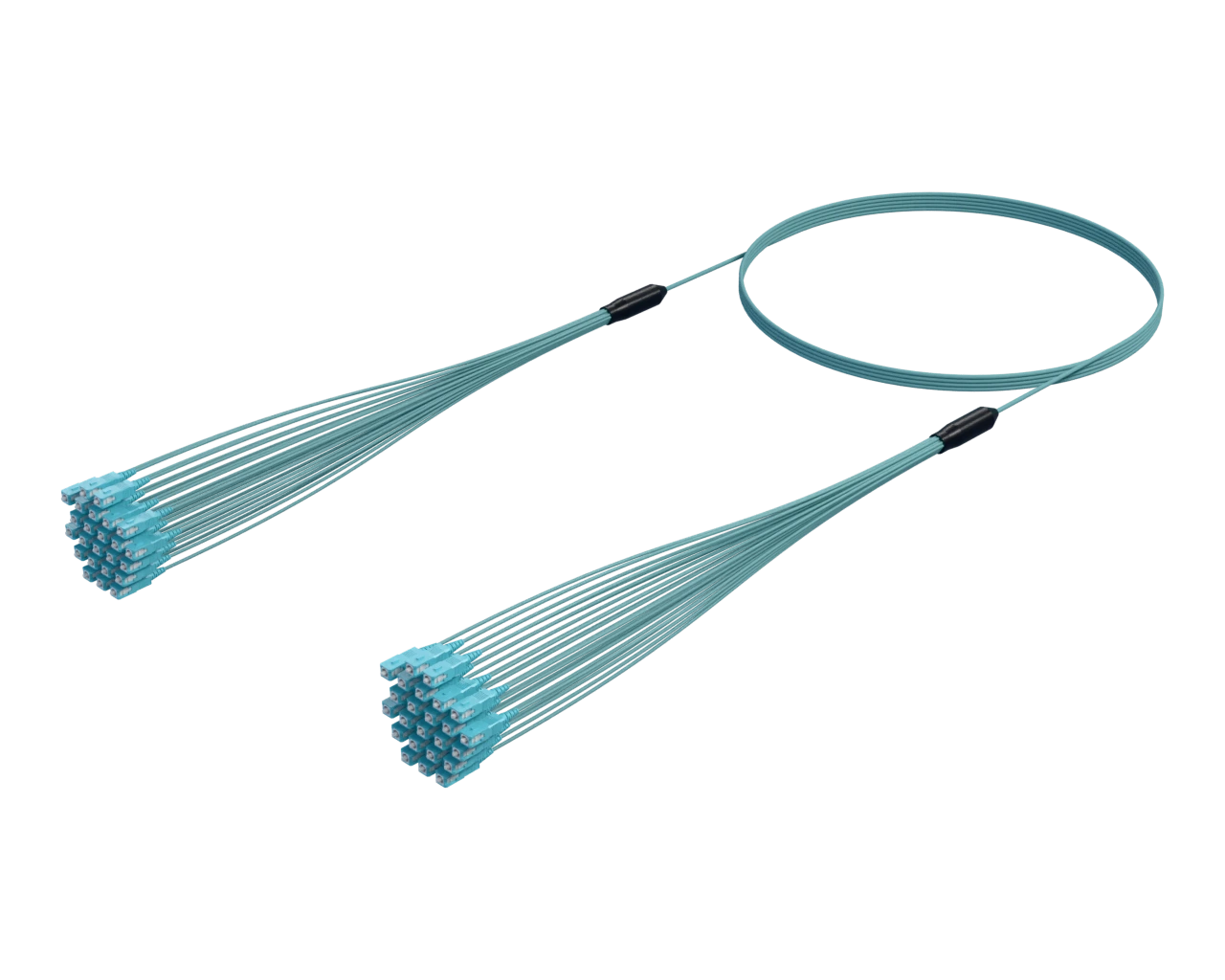

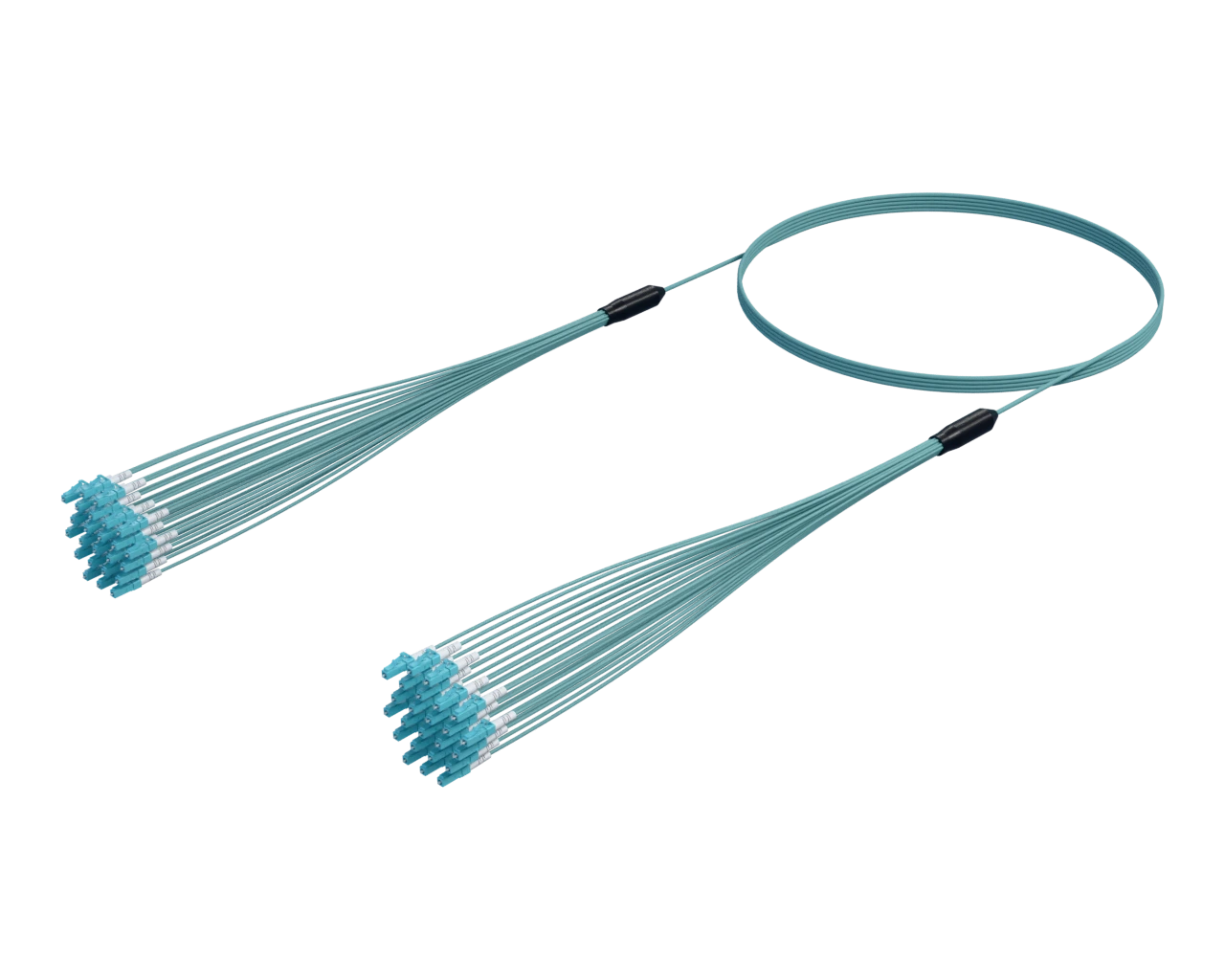

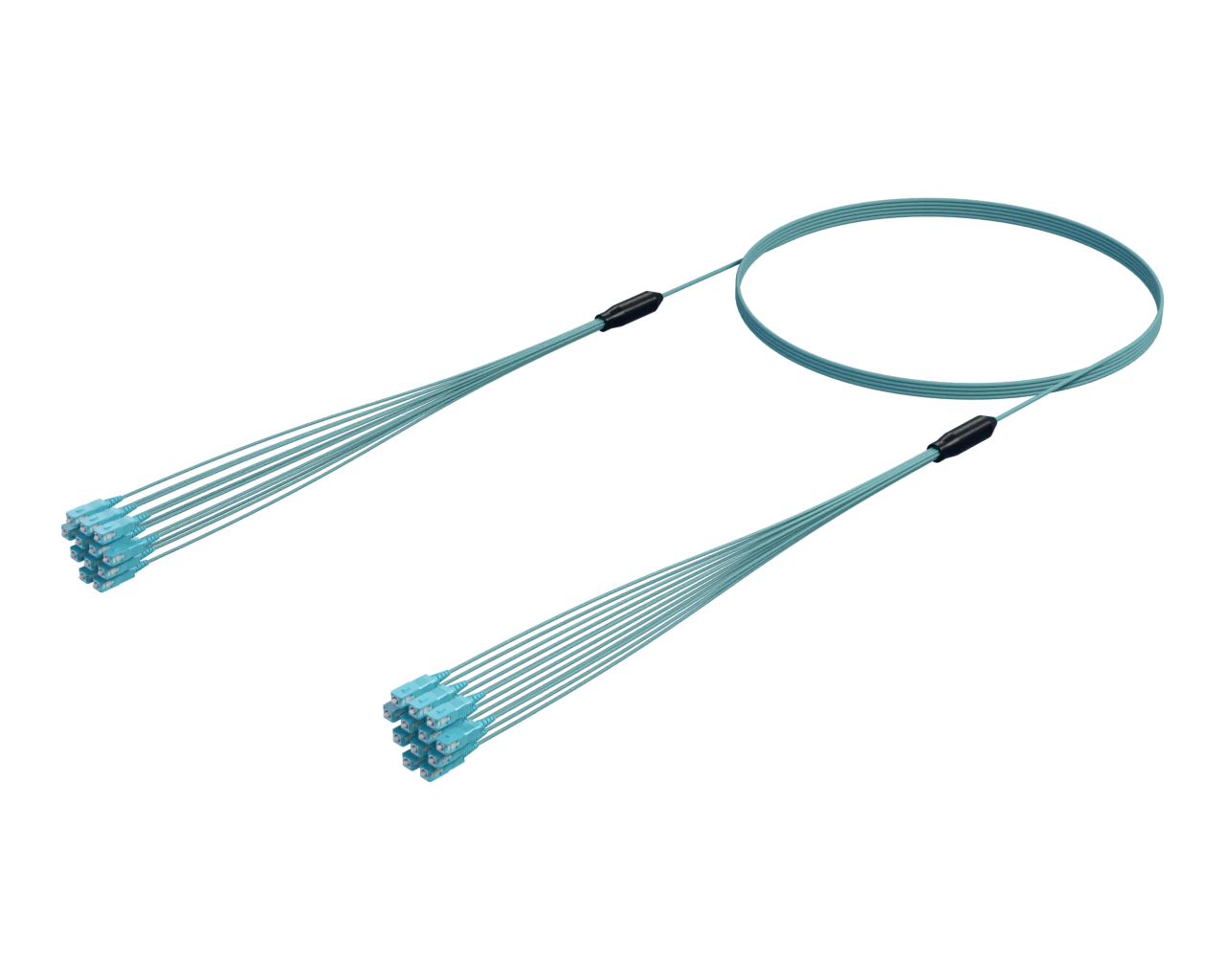

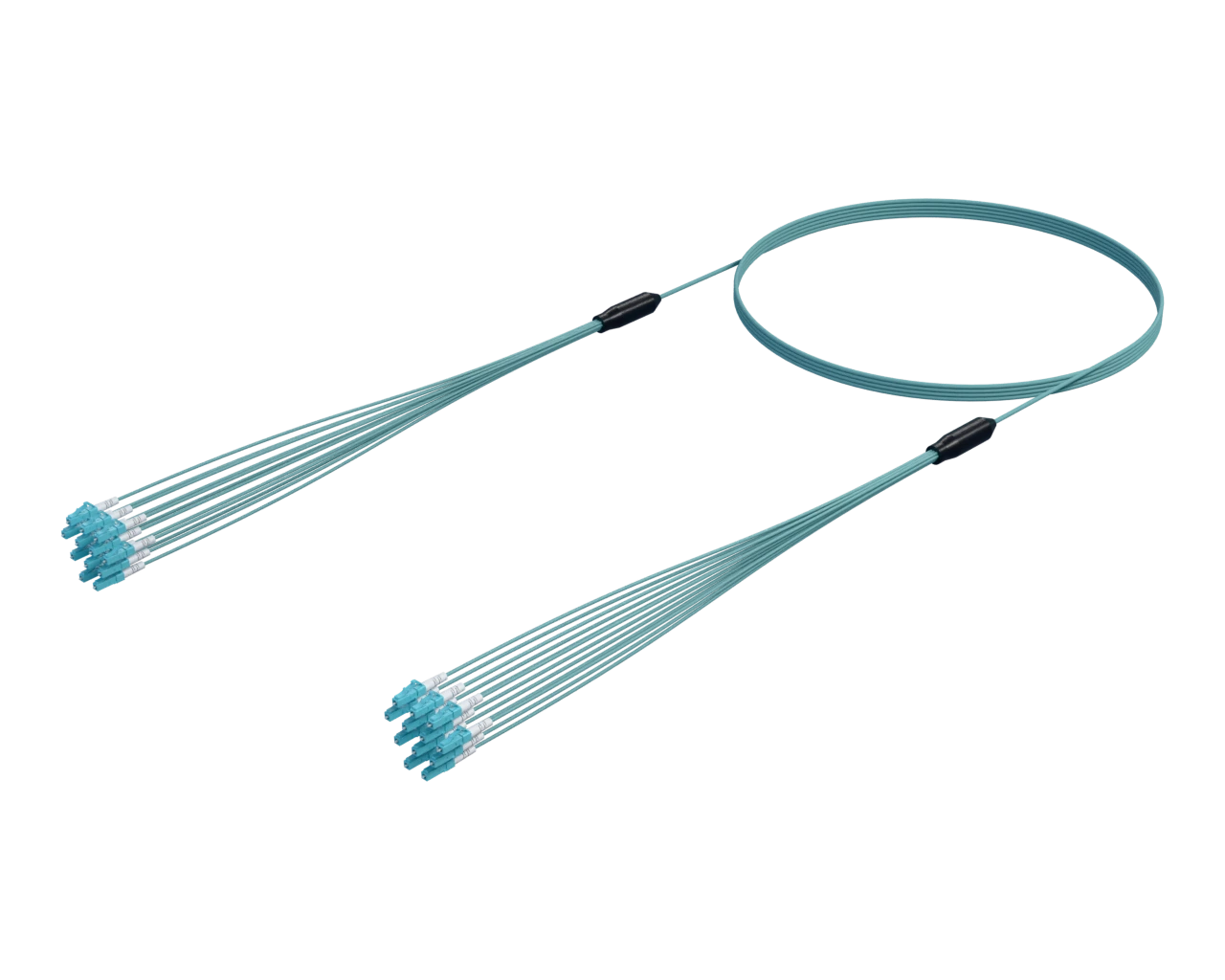

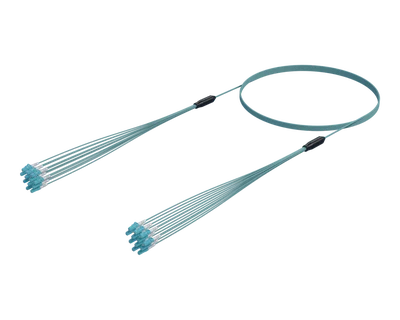

Mikrokabel-samestelling, OM4, 12F, 3mm, LC/UPC na LC/UPC
Deelnommer
Lengte (m)
MCA-M4-12-LC-LC-10M
10
MCA-M4-12-LC-LC-15M
15
MCA-M4-12-LC-LC-20M
20
MCA-M4-12-LC-LC-25M
25
MCA-M4-12-LC-LC-30M
30
MCA-M4-12-LC-LC-40M
40
MCA-M4-12-LC-LC-50M
50
MCA-M4-12-LC-LC-60M
60
MCA-M4-12-LC-LC-70M
70
MCA-M4-12-LC-LC-80M
80
MCA-M4-12-LC-LC-90M
90
MCA-M4-12-LC-LC-100M
100

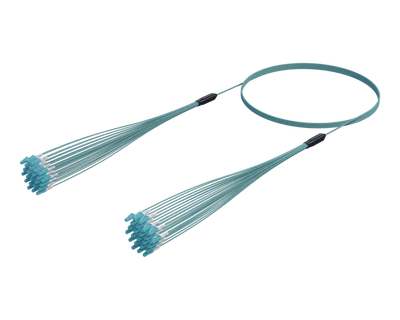

Mikrokabel-samestelling, OM4, 24F, 3mm, LC/UPC na LC/UPC
Deelnommer
Lengte (m)
MCA-M4-24-LC-LC-10M
10
MCA-M4-24-LC-LC-15M
15
MCA-M4-24-LC-LC-20M
20
MCA-M4-24-LC-LC-25M
25
MCA-M4-24-LC-LC-30M
30
MCA-M4-24-LC-LC-40M
40
MCA-M4-24-LC-LC-50M
50
MCA-M4-24-LC-LC-60M
60
MCA-M4-24-LC-LC-70M
70
MCA-M4-24-LC-LC-80M
80
MCA-M4-24-LC-LC-90M
90
MCA-M4-24-LC-LC-100M
100

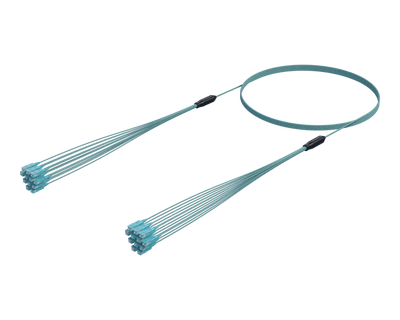

Mikrokabel-samestelling, OM4, 12F, 3mm, SC/UPC na SC/UPC
Deelnommer
Lengte (m)
MCA-M4-12-SC-SC-10M
10
MCA-M4-12-SC-SC-15M
15
MCA-M4-12-SC-SC-20M
20
MCA-M4-12-SC-SC-25M
25
MCA-M4-12-SC-SC-30M
30
MCA-M4-12-SC-SC-40M
40
MCA-M4-12-SC-SC-50M
50
MCA-M4-12-SC-SC-60M
60
MCA-M4-12-SC-SC-70M
70
MCA-M4-12-SC-SC-80M
80
MCA-M4-12-SC-SC-90M
90
MCA-M4-12-SC-SC-100M
100

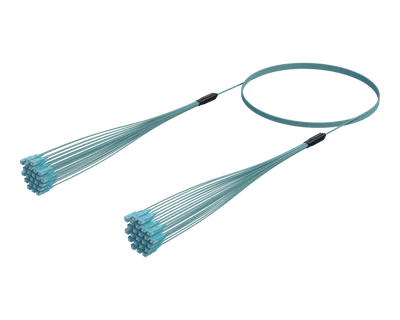

Mikrokabel-samestelling, OM4, 24F, 3mm, SC/UPC na SC/UPC
Deelnommer
Lengte (m)
MCA-M4-24-SC-SC-10M
10
MCA-M4-24-SC-SC-15M
15
MCA-M4-24-SC-SC-20M
20
MCA-M4-24-SC-SC-25M
25
MCA-M4-24-SC-SC-30M
30
MCA-M4-24-SC-SC-40M
40
MCA-M4-24-SC-SC-50M
50
MCA-M4-24-SC-SC-60M
60
MCA-M4-24-SC-SC-70M
70
MCA-M4-24-SC-SC-80M
80
MCA-M4-24-SC-SC-90M
90
MCA-M4-24-SC-SC-100M
100
Mikrokabel-samestelling, OM5, 12F, 3mm, LC/UPC na LC/UPC
Deelnommer
Lengte (m)
MCA-M5-12-LC-LC-10M
10
MCA-M5-12-LC-LC-15M
15
MCA-M5-12-LC-LC-20M
20
MCA-M5-12-LC-LC-25M
25
MCA-M5-12-LC-LC-30M
30
MCA-M5-12-LC-LC-40M
40
MCA-M5-12-LC-LC-50M
50
MCA-M5-12-LC-LC-60M
60
MCA-M5-12-LC-LC-70M
70
MCA-M5-12-LC-LC-80M
80
MCA-M5-12-LC-LC-90M
90
MCA-M5-12-LC-LC-100M
100
Mikrokabel-samestelling, OM5, 24F, 3mm, LC/UPC na LC/UPC
Deelnommer
Lengte (m)
MCA-M5-24-LC-LC-10M
10
MCA-M5-24-LC-LC-15M
15
MCA-M5-24-LC-LC-20M
20
MCA-M5-24-LC-LC-25M
25
MCA-M5-24-LC-LC-30M
30
MCA-M5-24-LC-LC-40M
40
MCA-M5-24-LC-LC-50M
50
MCA-M5-24-LC-LC-60M
60
MCA-M5-24-LC-LC-70M
70
MCA-M5-24-LC-LC-80M
80
MCA-M5-24-LC-LC-90M
90
MCA-M5-24-LC-LC-100M
100
Mikrokabel-samestelling, OM5, 12F, 3mm, SC/UPC na SC/UPC
Deelnommer
Lengte (m)
MCA-M5-12-SC-SC-10M
10
MCA-M5-12-SC-SC-15M
15
MCA-M5-12-SC-SC-20M
20
MCA-M5-12-SC-SC-25M
25
MCA-M5-12-SC-SC-30M
30
MCA-M5-12-SC-SC-40M
40
MCA-M5-12-SC-SC-50M
50
MCA-M5-12-SC-SC-60M
60
MCA-M5-12-SC-SC-70M
70
MCA-M5-12-SC-SC-80M
80
MCA-M5-12-SC-SC-90M
90
MCA-M5-12-SC-SC-100M
100
Mikrokabel-samestelling, OM5, 24F, 3mm, SC/UPC na SC/UPC
