NETWORK EVOLUTION

Why Use Intermittently Bonded Ribbon (IBR) Fibre Cables?

What intermittently bonded ribbon (IBR) cable is, and why data centres and FTTx networks use it: 12-fibre mass fusion splicing, about 2x fibre density in the same duct, and rollable ribbon that fits smaller cables.

The shift to Intermittently Bonded Ribbon (IBR) is driven by the physical limits of traditional cables. By bonding ribbons only intermittently, cables like SmartRIBBON achieve a lower profile that packs more fibre into less space while enabling mass-fusion splicing speeds. This evolution is essential for supporting the rapid growth of AI training fabrics and hyperscale data centre interconnects.

Performance Benchmarks

Transitioning to IBR architectures provides measurable improvements across labour, density, and signal speed.

85%

Splicing Time Reduction

2x

Duct Fibre Density

65%

Lighter Cable Weight

2x

Reduction in Closure Size

The Evolution of Ribbon

From labour-intensive legacy tubes to the intermittent ribbon era.

1990s - 2010
The Standard Era

Loose tube dominates OSP. Flat ribbon is available but less popular than today.

2012 - 2018
The IBR Innovation

Intermittently bonded ribbon designs come to market from multiple vendors. IBR begins displacing flat ribbon in high-density metro loops.

2019 - 2022
Hyperscale Standardisation

Tier-1 Cloud providers mandate IBR for DCI (Data Centre Interconnect). Flat ribbon becomes a legacy tech largely limited to OSP telecom links.

2023 - 2028
The AI 'Perfect Storm'

AI training clusters drive a huge demand surge. Global IBR shortages combine with fibre shortages to challenge supply chains.

Standard Loose Tube

  • ✕
    Individual Splicing: Each fibre (1F) must be fused separately, increasing labour.
  • ✕
    High Path Latency: 2–8% Excess Fibre Length (EFL) as a design constraint.
  • ✕
    Rigid Buffering: Stiff tubes create significant ‘dead space’ in conduits.
  • ✕
    Messy Prep: Petroleum-based gel requires extensive manual cleaning time.

SmartRIBBON™ IBR

  • ✓
    Mass Fusion: 12F ribbons are spliced simultaneously, slashing install time.
  • ✓
    Ultra-Low Latency: Low EFL creates a shorter, faster optical path for AI.
  • ✓
    Deformable Polymer: Tubes ’nest’ and flex to maximise fibre density.
  • ✓
    Gel-Free Core: 100% dry construction for rapid, mess-free termination.

Real World Applications

Where high-density ribbon provides a competitive advantage.

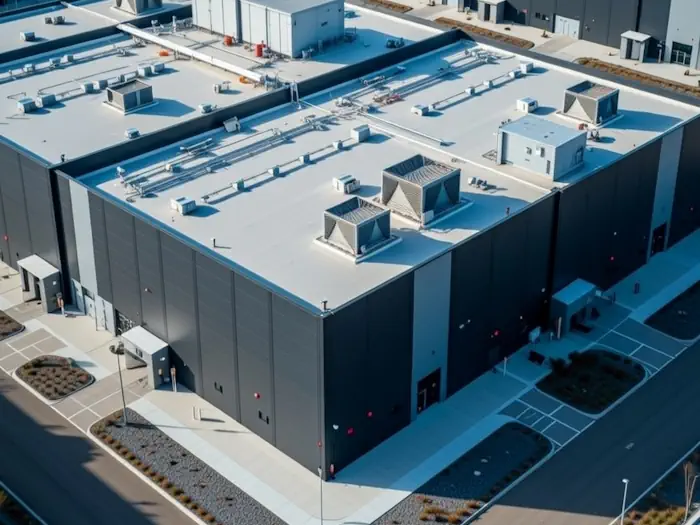

Data Centre Interconnect
Data Centre Interconnect

Providing high-density, low-latency links between hyperscale availability zones.

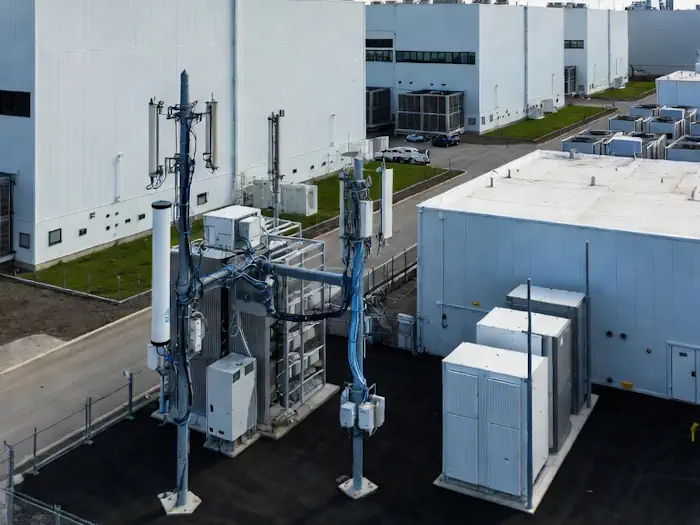

5G Metro Densification
5G Metro Densification

Maximising fibre counts in crowded metropolitan conduits where space is at a premium.

Network Restoration
Network Restoration

Accelerating emergency repairs of high-count cables through 12-fibre mass fusion splicing.

Splicing Labour Hours (1728F Deployment)

Labour Efficiency
IBR technology reduces labour costs by over 80% on high-count hyperscale projects.
Product Image
Featured Solution

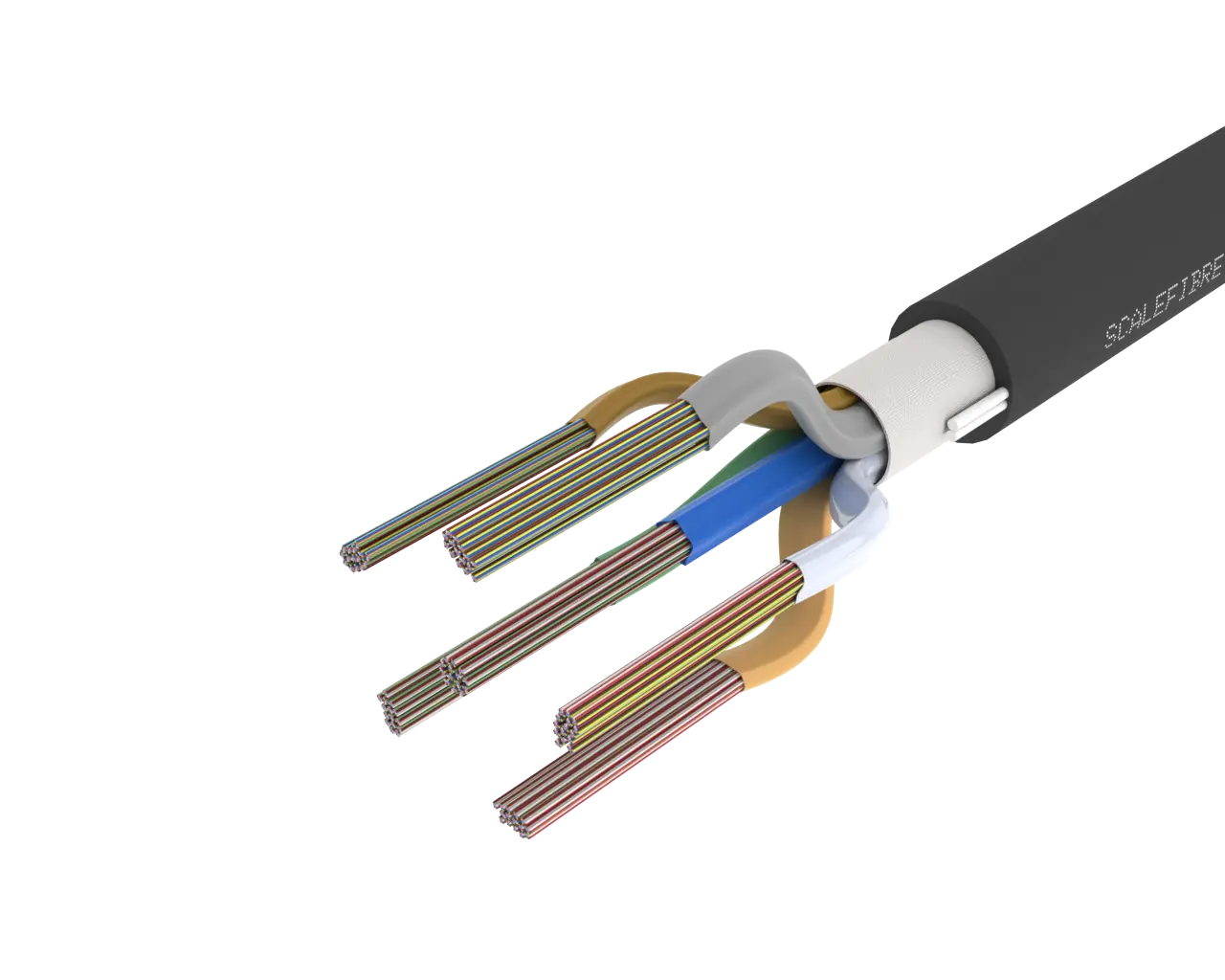

SmartRIBBON™ Optical Fibre Cable

Ultra high-density ribbon cable with flexible ribbon construction, engineered for space efficiency, fast mass fusion splicing or single fibre splicing in duct networks.

Explore SmartRIBBON Range

SmartRIBBON™ Cable Types

Match your ribbon density with the right environmental protection. From flame-retardant indoor runs to direct-buried harsh environments.

Indoor/Outdoor

LSZH (Flame Retardant)

The universal choice for campus backbones. Transition from outdoor ducts directly into indoor spaces without a secondary splice point.

  • LSZH (Low Smoke Zero Halogen) Jacket
  • Meets IEC 60332-3-24 flame test criteria
  • Eliminates building-entry transition splices

Outdoor

PE (High Durability)

Engineered for maximum longevity in outside plant (OSP). The robust Polyethylene jacket provides the best resistance to moisture and extreme temperature swings.

  • Polyethylene (PE) Jacket
  • Lowest friction for long-distance jetting
  • UV stabilised for environmental resistance

Armoured

Metallic (Rodent Resistant)

The heavy-duty variant for direct burial or high-risk areas. Corrugated steel armour provides a physical barrier against rodents and crushing forces.

  • Corrugated steel tape (CST) armour
  • Exceptional crush and rodent resistance
  • Ideal for direct burial and high-risk areas
“
The shift to Intermittently Bonded Ribbon is driven by the physical limits of traditional cables. With precise, intermittent bonding we achieve a low diameter cable that finally makes high-count fibre manageable.

Technical FAQ

+ Why is IBR better for latency?
Traditional cables require substantial extra fibre length (EFL) to protect against tension. IBR requires much less, shortening the signal path and reducing time-of-flight for high-frequency trading and AI clusters.
+ Does it require new splicing tools?
No, SmartRIBBON is fully compatible with existing 12-fibre mass fusion splicers like the FiberFox Mini 12R+ and standard pitch conversion holders used for ribbon splicing.
+ How does 'gel-free' impact installation speed?
Older flat ribbon designs often contain large amounts of petroleum based filling compounds. Gel-free designs eliminate the need for chemical solvents and manual cleaning of individual fibres. This can reduce the preparation time for a 1728F cable by several hours.
+ How does SmartRIBBON achieve a much smaller footprint than flat ribbon?
Traditional ribbon is a rigid stack of ‘rectangles in a circle,’ leaving significant air gaps. SmartRIBBON uses intermittent bonding points that allow the ribbon to fold, roll, and compress into a circular profile. This geometry recovers the ‘dead space’ within the cable and allows for fibre density that flat-ribbon stacks cannot match.
+ Can I still splice SmartRIBBON as single fibres?
Yes. While designed for mass-fusion, the intermittent bond points are easily separated by hand. This allows technicians to break out individual fibres for single-circuit patching or legacy splicing without the need for specialised ribbon-splitting tools or the risk of ‘shaving’ the fibre coating.
+ Why does SmartRIBBON use thin, deformable polymer tubes?
Unlike the rigid buffer tubes found in loose-tube cables, these thin-walled polymer tubes are designed to deform under pressure. This flexibility allows the rollable ribbons to shift and ‘self-nest’ into the tightest possible circular profile, maximising fibre density while allowing for easy routing at time of termination.
+ If the cable is 100% gel-free, how is water ingress prevented?
Water blocking is achieved through advanced dry-technology. The cable incorporates super-absorbent yarns and water-swellable tapes that activate instantly upon contact with moisture. These materials swell to create a high-pressure physical dam, preventing water from travelling down the cable without the mess of petroleum-based filling compounds.
