SlimCORE™ 144F is a subunitised indoor fibre cable with compact construction, designed for high-density applications and easy termination.
- 144 fibres in twelve 12F subunits
- Compact design enables tight routing without fanout kits
- All-dielectric with aramid yarns for rugged performance
- Flame-retardant LSZH jacket for indoor installations
- Available in single-mode and multimode variants
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured
The SlimCORE™ 144F indoor cable delivers maximum fibre density in a compact footprint. Featuring twelve 12-fibre subunits with 250µm primary coated fibres, SlimCORE is engineered for fast routing and fusion splicing without fanout kits.
Its all-dielectric construction and LSZH jacket make it ideal for structured cabling environments such as data centres, campus backbones, and vertical risers. SlimCORE 144F supports both single-mode (G.657.A1) and multimode (OM3, OM4, and OM5) configurations, with consistent handling and superior protection across all variants.
| Construction Details | |
| Fibre Count | 144 fibres (12 × 12F subunits) |
| Fibre Coating | 250µm primary coating |
| Subunit Diameter | 2.0 mm nominal |
| Strength Members | Aramid yarns |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Cable Dimensions | |
| Nominal Outer Diameter | 10.4 mm |
| Nominal Weight | 93 kg/km ±10% |
| Mechanical Characteristics | |
| Max Tensile Load (Short Term) | 660 N |
| Max Tensile Load (Long Term) | 200 N |
| Crush Resistance | 110 N / cm |
| Bend Radius (Installation) | 205mm |
| Bend Radius (Static) | 100mm |
| Environmental Characteristics | |
| Temperature – Installation | -10°C to +60°C |
| Temperature – Operation | -20°C to +70°C |
| Temperature – Storage | -40°C to +70°C |
| Compliance | |
| Flame Rating | IEC 60332-1, IEC 60332-3-24 |
| Standards | IEC 60794-2-20, ISO/IEC 11801, AS/CA S008 |

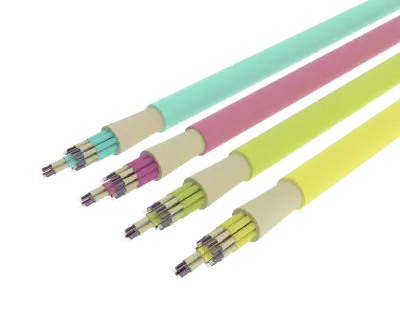

| SlimCORE 144F Variants | |
| C-SC-S7-144-L | SlimCore Sub-Unitised Cable, Single Mode (G.657.A1), 144F, Yellow |

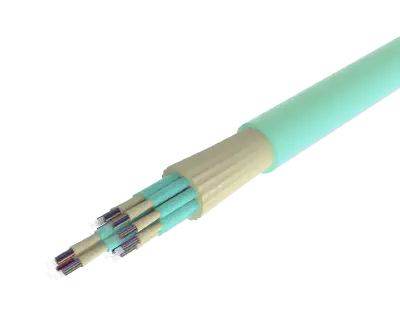

| C-SC-M3-144-L | SlimCore Sub-Unitised Cable, OM3, 144F, Aqua |
| C-SC-M4-144-L | SlimCore Sub-Unitised Cable, OM4, 144F, Aqua |

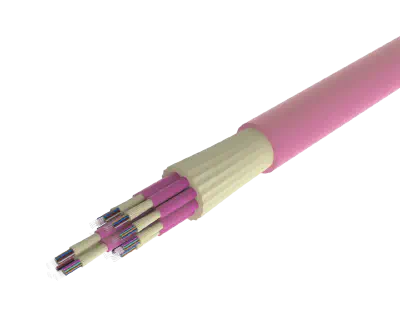

| C-SC-M4-144-L-EV | SlimCore Sub-Unitised Cable, OM4, 144F, Erika Violet |
| C-SC-M5-144-L | SlimCore Sub-Unitised Cable, OM5, 144F, Lime Green |
