- Optimised for medium spans (up to 220m depending on loading)
- Fibre counts from 6 to 288
- Double jacket construction for superior mechanical protection
- SZ-stranded loose tube construction for enhanced flexibility and mid-span access
- FRP central member and Aramid peripheral yarns for self-supporting strength
- Dry core with StaticGEL™ loose tubes for clean, low-mess handling
- All-dielectric non-metallic construction (no grounding required)
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured

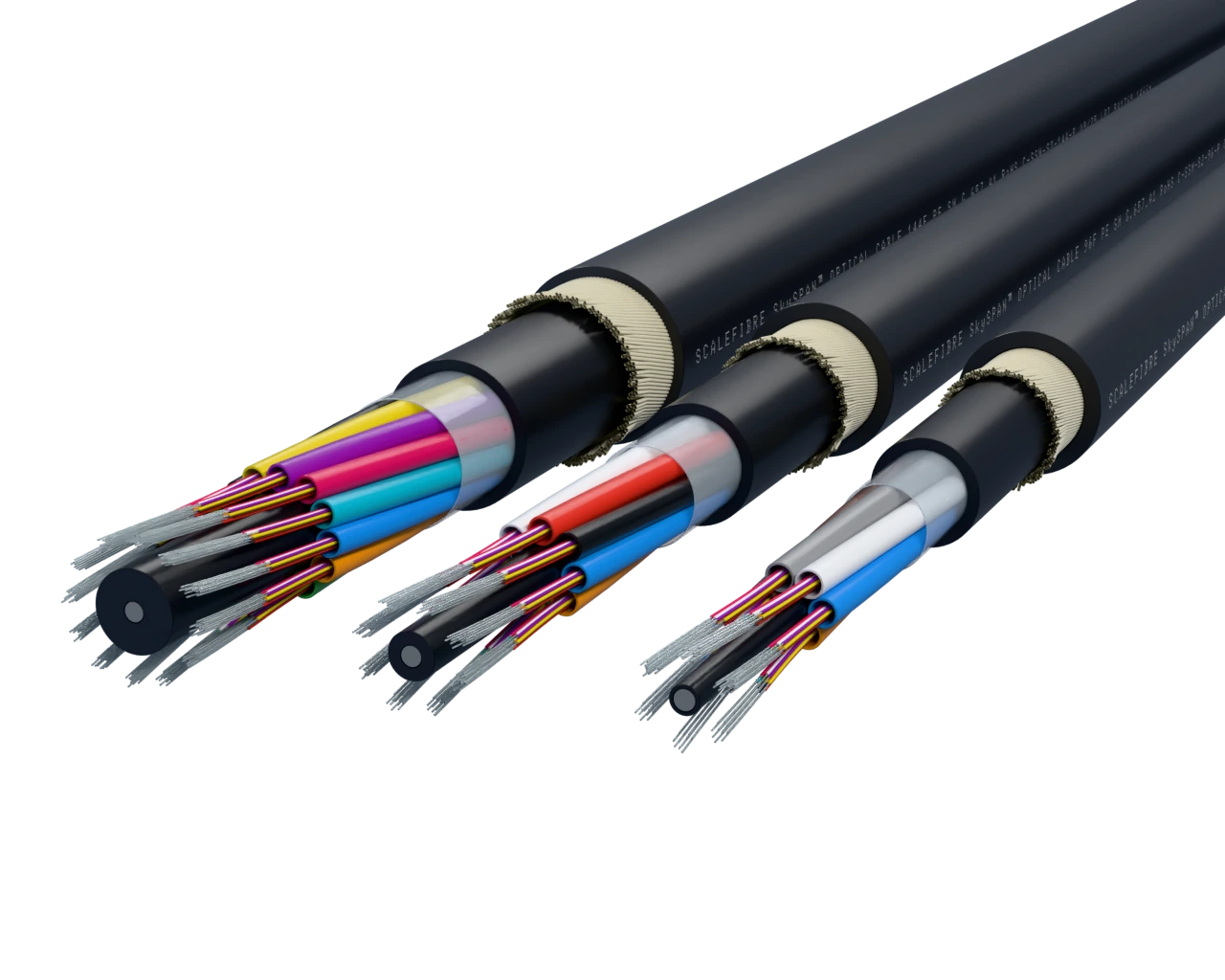

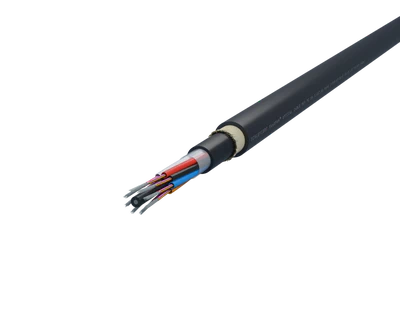

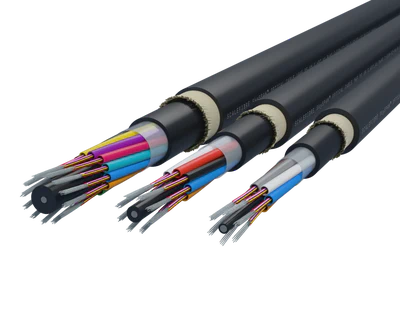

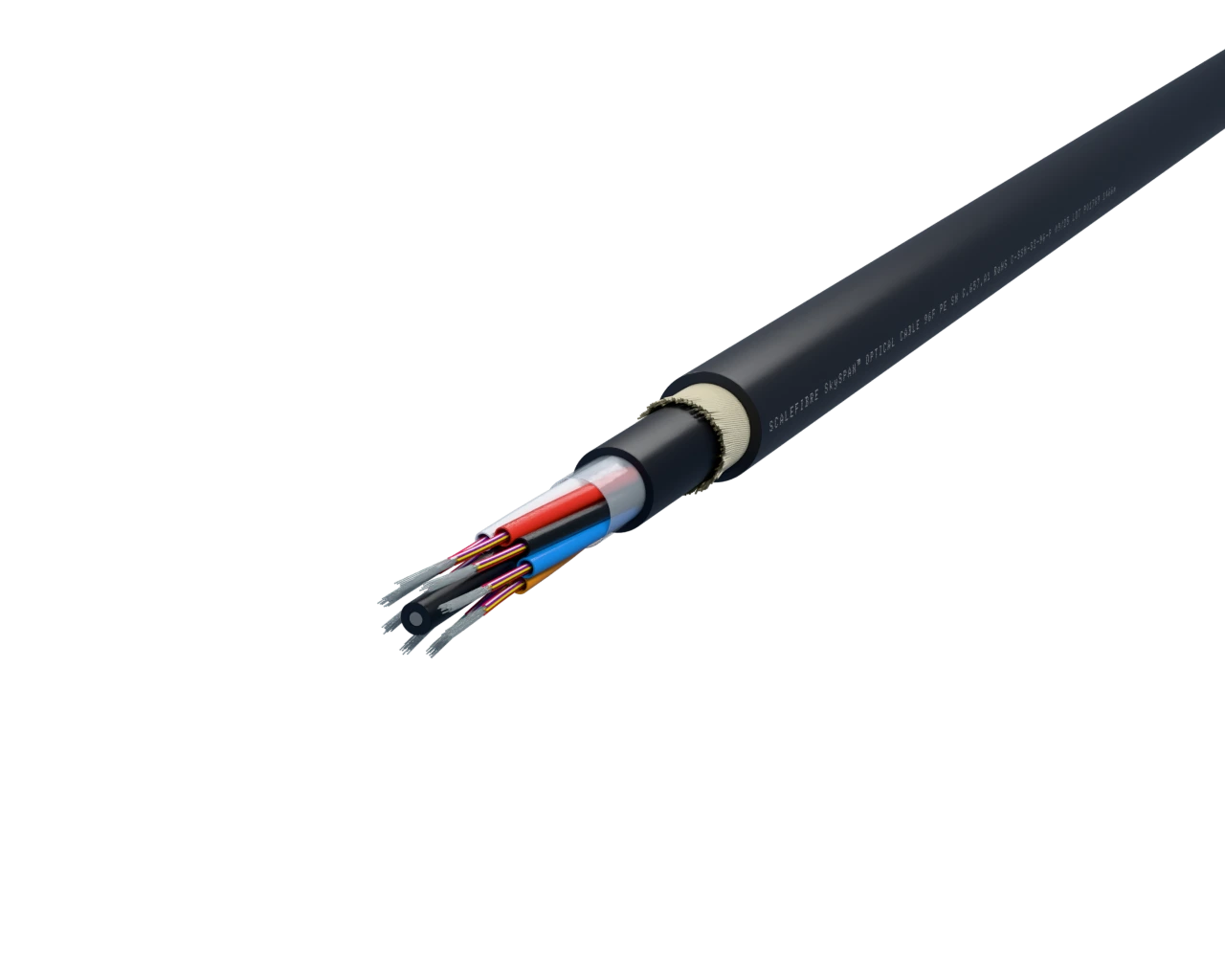

The SkySPAN™ Medium Span ADSS (All-Dielectric Self-Supporting) optical cable family is engineered for aerial pole-to-pole distribution networks requiring higher tensile strength and environmental resilience. Designed for medium span applications with fiber counts up to 288, this cable features a robust double jacket construction for superior protection. Capable of spanning distances up to 220 meters (depending on loading conditions), this cable is designed for high-capacity networks with fiber counts up to 288.
The cable utilises a stranded loose tube (SZ) core design with StaticGEL™ technology for clean, fast handling. A central FRP strength member is surrounded by the cable core and an inner polyethylene (PE) jacket. A layer of aramid yarns is applied between the inner and outer jackets to provide high tensile strength for longer spans without grounding requirements. Finished with a durable black PE outer jacket, SkySPAN™ Medium Span ensures exceptional long-term reliability.
| Construction Details | |
| Fibre Count | 6 to 288 fibres |
| Fibre Type | Single-mode G.652.D Single-mode G.657.A1 Single-mode G.655 Multimode Specialty fibres |
| Tube Configuration | SZ-stranded loose tubes (Max 12 fibres per tube) |
| Tube Filling | StaticGEL™ technology for clean, fast handling |
| Core Water Blocking | Dry core with water-blocking yarns and tape |
| Strength Member | Central FRP rod (dielectric) |
| Peripheral Strength | Aramid Yarns (located between inner and outer jackets) |
| Ripcords | Two (Dual Ripcords) |
| Jacket | Double Jacket (Inner and Outer Black Polyethylene) |
| Cable Dimensions | |
| Outside Diameter | 6-36F: 13.0 ± 0.5 mm 48-72F: 13.3 ± 0.5 mm 96F: 14.7 ± 0.5 mm 120F: 16.1 ± 0.5 mm 144F: 17.5 ± 0.5 mm 288F: 20.4 ± 0.5 mm |
| Weight | 6-36F: 127 kg/km 48-72F: 133 kg/km 96F: 165 kg/km 120F: 197 kg/km 144F: 232 kg/km 288F: 315 kg/km |
| Bend Radius | |
| Minimum Bend Radius (Installation) | 20 × Cable OD (260 mm to 408 mm depending on count) |
| Minimum Bend Radius (No-Load / Static) | 10 × Cable OD (130 mm to 204 mm depending on count) |
| Mechanical Characteristics | |
| Tensile Strength | 2,700 N (IEC 60794-1-2 Method E1) |
| Crush Resistance | 2,000 N/100 mm (IEC 60794-1-2 Method E3) |
| Impact Resistance | 10 J (IEC 60794-1 Method E4) |
| Environmental | |
| Operating Temperature | -40 °C to +70 °C |
| Installation Temperature | -30 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Compliance | |
| Standards | IEC 60794-1; AS/CA S008; ITU-T optical fibre standards |
| RoHS Compliant | Yes |
| SkySPAN™ ADSS Single-mode (G.652.D) – Standard Fibre Counts | |
| Part Number | Description |
| C-SSM-S2-6-P | ADSS Cable, Medium Span, Single Mode (G.652.D), 6F, Double PE Jacket |
| C-SSM-S2-12-P | ADSS Cable, Medium Span, Single Mode (G.652.D), 12F, Double PE Jacket |
| C-SSM-S2-24-P | ADSS Cable, Medium Span, Single Mode (G.652.D), 24F, Double PE Jacket |
| C-SSM-S2-48-P | ADSS Cable, Medium Span, Single Mode (G.652.D), 48F, Double PE Jacket |
| C-SSM-S2-72-P | ADSS Cable, Medium Span, Single Mode (G.652.D), 72F, Double PE Jacket |
| C-SSM-S2-96-P | ADSS Cable, Medium Span, Single Mode (G.652.D), 96F, Double PE Jacket |
| C-SSM-S2-144-P | ADSS Cable, Medium Span, Single Mode (G.652.D), 144F, Double PE Jacket |
| C-SSM-S2-288-P | ADSS Cable, Medium Span, Single Mode (G.652.D), 288F, Double PE Jacket |
| SkySPAN™ ADSS Single-mode (G.657.A1) – Standard Fibre Counts | |
| Part Number | Description |
| C-SSM-S7-6-P | ADSS Cable, Medium Span, Single Mode (G.657.A1), 6F, Double PE Jacket |
| C-SSM-S7-12-P | ADSS Cable, Medium Span, Single Mode (G.657.A1), 12F, Double PE Jacket |
| C-SSM-S7-24-P | ADSS Cable, Medium Span, Single Mode (G.657.A1), 24F, Double PE Jacket |
| C-SSM-S7-48-P | ADSS Cable, Medium Span, Single Mode (G.657.A1), 48F, Double PE Jacket |
| C-SSM-S7-72-P | ADSS Cable, Medium Span, Single Mode (G.657.A1), 72F, Double PE Jacket |
| C-SSM-S7-96-P | ADSS Cable, Medium Span, Single Mode (G.657.A1), 96F, Double PE Jacket |
| C-SSM-S7-144-P | ADSS Cable, Medium Span, Single Mode (G.657.A1), 144F, Double PE Jacket |
| C-SSM-S7-288-P | ADSS Cable, Medium Span, Single Mode (G.657.A1), 288F, Double PE Jacket |
