Hardened FTTH drop cables with OptiTap®-compatible SC/APC connectors for plug-and-play connectivity. Factory-terminated and sealed for harsh environments.

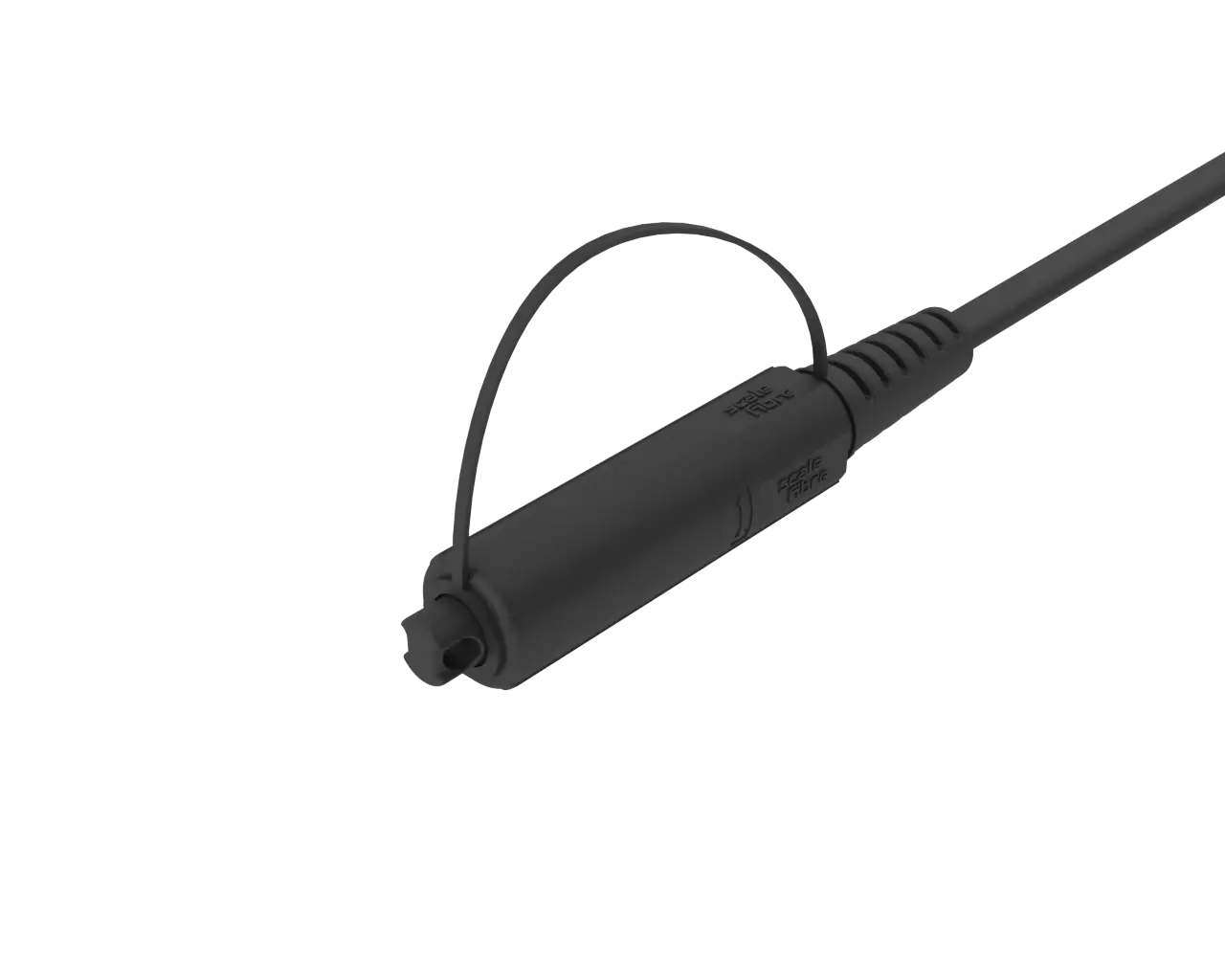

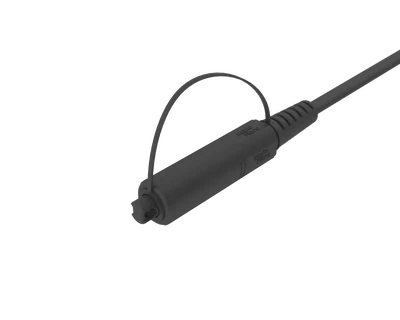

Hardened SC/APC connector compatible with OptiTap™-style ports
Factory-terminated and 100% tested for insertion loss and return loss
Ruggedised, UV-resistant jacket with crush and water ingress protection
Integrated pulling eye for direct install
No splicing required — plug-and-play install cuts field labour

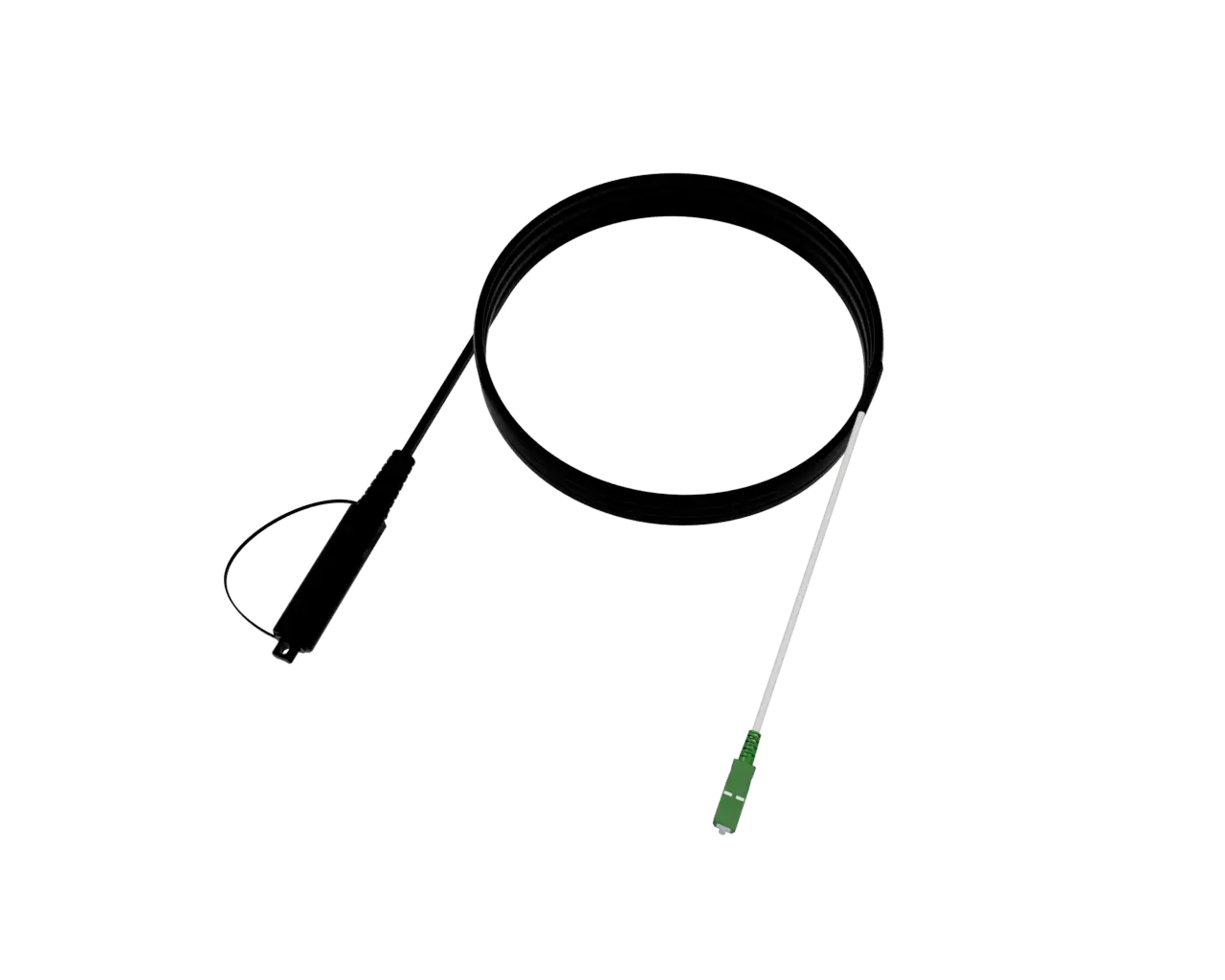

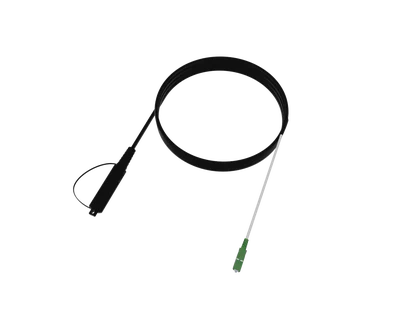

The ToughPORT™ Drop Cable Assembly enables fast, reliable fibre-to-the-home connections using a factory-terminated, pre-connectorised design. Each assembly features a ruggedised SC/APC hardened connector, compatible with Corning OptiTap®-style interfaces for seamless integration with industry-standard FATs and terminals.
Available in a range of lengths and fibre counts, these drop cables are built to withstand the elements, with sturdy polyethylene sheathing, UV protection, and water-blocking construction for aerial, ducted, or buried installs.
ToughPORT™ assemblies eliminate splicing in the field and reduce installation time, cost, and complexity. All units are tested and sealed for guaranteed performance.
OptiTap® is a trademark of Corning Incorporated. Use of this term does not imply endorsement.
Technical Specifications
Connector Type
ToughPORT™ Hardened SC/APC (OptiTap®-compatible)
Fibre Type
Single-mode G.657.A1 or G.657.A2
Fibre Count
1
Cable Sheath
UV-resistant PE
Crush Resistance
1000 N / 10 cm
Tensile Strength
1.35 kN (short term)
Ingress Protection
IP68 sealed at connector
Operating Temperature
-40°C to +70°C
Relevant Standards
IEC 60794-1, ITU-T G.657, RoHS, REACH
Fibre Optic Dielectric Drop Cable Assembly, ToughPORT™ to SC/APC
Part Number
Length (m)
DD-S7-1-TP-SCA-10M
10
DD-S7-1-TP-SCA-20M
20
DD-S7-1-TP-SCA-30M
30
DD-S7-1-TP-SCA-40M
40
DD-S7-1-TP-SCA-50M
50
DD-S7-1-TP-SCA-60M
60
DD-S7-1-TP-SCA-70M
70
DD-S7-1-TP-SCA-80M
80
DD-S7-1-TP-SCA-90M
90
DD-S7-1-TP-SCA-100M
100
DD-S7-1-TP-SCA-110M
110
DD-S7-1-TP-SCA-120M
120
DD-S7-1-TP-SCA-130M
130
DD-S7-1-TP-SCA-140M
140
DD-S7-1-TP-SCA-150M
150
DD-S7-1-TP-SCA-160M
160
DD-S7-1-TP-SCA-170M
170
DD-S7-1-TP-SCA-180M
180
DD-S7-1-TP-SCA-190M
190
DD-S7-1-TP-SCA-200M
200
Fibre Optic Dielectric Drop Cable Assembly, ToughPORT™ to LC/APC
Part Number
Length (m)
DD-S7-1-TP-LCA-10M
10
DD-S7-1-TP-LCA-20M
20
DD-S7-1-TP-LCA-30M
30
DD-S7-1-TP-LCA-40M
40
DD-S7-1-TP-LCA-50M
50
DD-S7-1-TP-LCA-60M
60
DD-S7-1-TP-LCA-70M
70
DD-S7-1-TP-LCA-80M
80
DD-S7-1-TP-LCA-90M
90
DD-S7-1-TP-LCA-100M
100
DD-S7-1-TP-LCA-110M
110
DD-S7-1-TP-LCA-120M
120
DD-S7-1-TP-LCA-130M
130
DD-S7-1-TP-LCA-140M
140
DD-S7-1-TP-LCA-150M
150
DD-S7-1-TP-LCA-160M
160
DD-S7-1-TP-LCA-170M
170
DD-S7-1-TP-LCA-180M
180
DD-S7-1-TP-LCA-190M
190
DD-S7-1-TP-LCA-200M
200

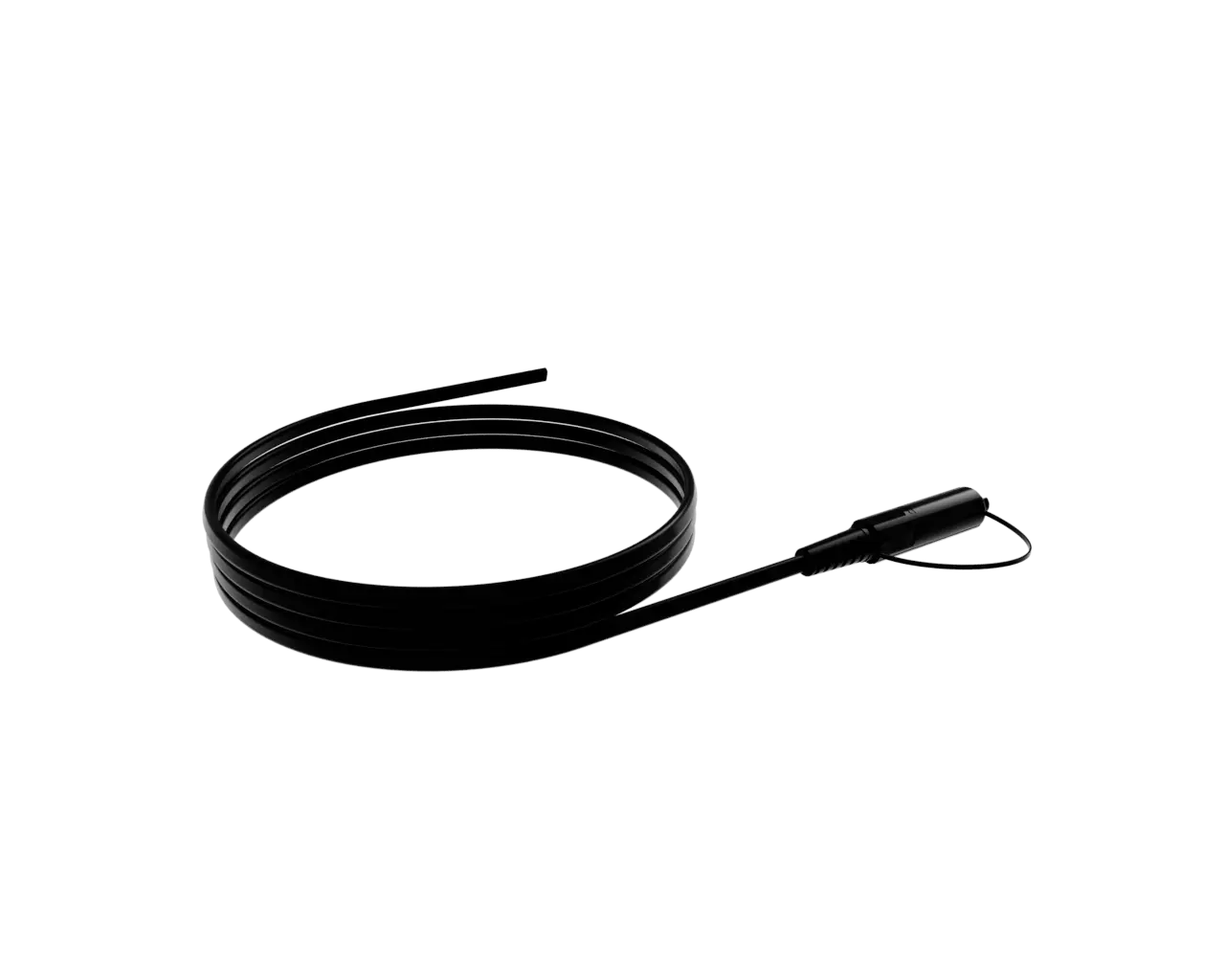

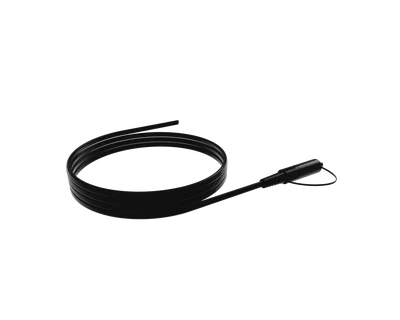

Fibre Optic Dielectric Drop Cable Assembly, ToughPORT™ to Blunt
Part Number
Length (m)
DD-S7-1-TP-XX-50M
50
DD-S7-1-TP-XX-100M
100
DD-S7-1-TP-XX-150M
150
DD-S7-1-TP-XX-200M
200
Fibre Optic Toneable Drop Cable Assembly, ToughPORT™ to SC/APC
Part Number
Length (m)
TD-S7-1-TP-SCA-10M
10
TD-S7-1-TP-SCA-20M
20
TD-S7-1-TP-SCA-30M
30
TD-S7-1-TP-SCA-40M
40
TD-S7-1-TP-SCA-50M
50
TD-S7-1-TP-SCA-60M
60
TD-S7-1-TP-SCA-70M
70
TD-S7-1-TP-SCA-80M
80
TD-S7-1-TP-SCA-90M
90
TD-S7-1-TP-SCA-100M
100
TD-S7-1-TP-SCA-110M
110
TD-S7-1-TP-SCA-120M
120
TD-S7-1-TP-SCA-130M
130
TD-S7-1-TP-SCA-140M
140
TD-S7-1-TP-SCA-150M
150
TD-S7-1-TP-SCA-160M
160
TD-S7-1-TP-SCA-170M
170
TD-S7-1-TP-SCA-180M
180
TD-S7-1-TP-SCA-190M
190
TD-S7-1-TP-SCA-200M
200
Fibre Optic Toneable Drop Cable Assembly, ToughPORT™ to LC/APC
Part Number
Length (m)
TD-S7-1-TP-LCA-10M
10
TD-S7-1-TP-LCA-20M
20
TD-S7-1-TP-LCA-30M
30
TD-S7-1-TP-LCA-40M
40
TD-S7-1-TP-LCA-50M
50
TD-S7-1-TP-LCA-60M
60
TD-S7-1-TP-LCA-70M
70
TD-S7-1-TP-LCA-80M
80
TD-S7-1-TP-LCA-90M
90
TD-S7-1-TP-LCA-100M
100
TD-S7-1-TP-LCA-110M
110
TD-S7-1-TP-LCA-120M
120
TD-S7-1-TP-LCA-130M
130
TD-S7-1-TP-LCA-140M
140
TD-S7-1-TP-LCA-150M
150
TD-S7-1-TP-LCA-160M
160
TD-S7-1-TP-LCA-170M
170
TD-S7-1-TP-LCA-180M
180
TD-S7-1-TP-LCA-190M
190
TD-S7-1-TP-LCA-200M
200
Fibre Optic Toneable Drop Cable Assembly, ToughPORT™ to Blunt
Part Number
Length (m)
TD-S7-1-TP-XX-50M
50
TD-S7-1-TP-XX-100M
100
TD-S7-1-TP-XX-150M
150
TD-S7-1-TP-XX-200M
200
Fibre Optic Dielectric Drop Cable Assembly, ToughPORT™ to SC/APC
Part Number
Length (ft)
DD-S7-1-TP-SCA-25F
25
DD-S7-1-TP-SCA-50F
50
DD-S7-1-TP-SCA-75F
75
DD-S7-1-TP-SCA-100F
100
DD-S7-1-TP-SCA-150F
150
DD-S7-1-TP-SCA-200F
200
DD-S7-1-TP-SCA-250F
250
DD-S7-1-TP-SCA-300F
300
DD-S7-1-TP-SCA-350F
350
DD-S7-1-TP-SCA-400F
400
DD-S7-1-TP-SCA-450F
450
DD-S7-1-TP-SCA-500F
500
Fibre Optic Dielectric Drop Cable Assembly, ToughPORT™ to LC/APC
Part Number
Length (ft)
DD-S7-1-TP-LCA-25F
25
DD-S7-1-TP-LCA-50F
50
DD-S7-1-TP-LCA-75F
75
DD-S7-1-TP-LCA-100F
100
DD-S7-1-TP-LCA-150F
150
DD-S7-1-TP-LCA-200F
200
DD-S7-1-TP-LCA-250F
250
DD-S7-1-TP-LCA-300F
300
DD-S7-1-TP-LCA-350F
350
DD-S7-1-TP-LCA-400F
400
DD-S7-1-TP-LCA-450F
450
DD-S7-1-TP-LCA-500F
500
Fibre Optic Dielectric Drop Cable Assembly, ToughPORT™ to Blunt
Part Number
Length (ft)
DD-S7-1-TP-XX-100F
100
DD-S7-1-TP-XX-200F
200
DD-S7-1-TP-XX-300F
300
DD-S7-1-TP-XX-400F
400
DD-S7-1-TP-XX-500F
500
DD-S7-1-TP-XX-600F
600
Fibre Optic Toneable Drop Cable Assembly, ToughPORT™ to SC/APC
Part Number
Length (ft)
TD-S7-1-TP-SCA-25F
25
TD-S7-1-TP-SCA-50F
50
TD-S7-1-TP-SCA-75F
75
TD-S7-1-TP-SCA-100F
100
TD-S7-1-TP-SCA-150F
150
TD-S7-1-TP-SCA-200F
200
TD-S7-1-TP-SCA-250F
250
TD-S7-1-TP-SCA-300F
300
TD-S7-1-TP-SCA-350F
350
TD-S7-1-TP-SCA-400F
400
TD-S7-1-TP-SCA-450F
450
TD-S7-1-TP-SCA-500F
500
Fibre Optic Toneable Drop Cable Assembly, ToughPORT™ to LC/APC
Part Number
Length (ft)
TD-S7-1-TP-LCA-25F
25
TD-S7-1-TP-LCA-50F
50
TD-S7-1-TP-LCA-75F
75
TD-S7-1-TP-LCA-100F
100
TD-S7-1-TP-LCA-150F
150
TD-S7-1-TP-LCA-200F
200
TD-S7-1-TP-LCA-250F
250
TD-S7-1-TP-LCA-300F
300
TD-S7-1-TP-LCA-350F
350
TD-S7-1-TP-LCA-400F
400
TD-S7-1-TP-LCA-450F
450
TD-S7-1-TP-LCA-500F
500
Fibre Optic Toneable Drop Cable Assembly, ToughPORT™ to Blunt
