High Fibre Count Indoor/Outdoor MPO trunk assemblies carry 144 to 576 fibres between buildings, halls and data centre campuses in a single pre-terminated run. Built on SmartRIBBON™ indoor/outdoor cable, one assembly can be routed through outdoor duct and continue into the building without a transition splice at the entrance.
SmartRIBBON™ uses intermittently bonded 12-fibre ribbons in flexible, gel-free buffer tubes, with non-metallic FRP strength members and water-blocking yarns for full core protection. Assemblies are available with a Low Smoke Zero Halogen (LSZH) jacket, or an OFNR (Riser) rated jacket that also meets the FT4 vertical tray flame test.
Each trunk is factory terminated with MPO-12 connectors in polarity Type A, B or C and 100% tested for insertion loss and return loss, reducing on-site splicing and speeding up campus and data centre interconnect builds.
Intended for campus interconnect across the Johannesburg and Cape Town data centre clusters, linking buildings and carrier-neutral facilities with a single indoor/outdoor pre-terminated run.
General
Connector Types
MPO-12 (female to female)
Fibre Count Range
144 to 576 fibres per trunk
Polarity Options
Type A, B, C
Fibre Type
Single-mode G.657.A1
Cable Specification
Cable
SmartRIBBON™ indoor/outdoor ribbon cable
Ribbon Construction
12F intermittently bonded ribbon
Jacket Options
Low Smoke Zero Halogen (LSZH), or OFNR (Riser) with FT4
Strength Member
Fibre Reinforced Plastic (FRP)
Water Blocking
Water-blocking yarns
Insertion Loss
≤0.35 dB per connector
Return Loss
≥60 dB
Operating Temperature
-20°C to +70°C
MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 144 fibre, MPO(Female)-MPO(Female) (Pol. A)
Part Number
Length (m)
MH-S7-SRL-144-MPOF-MPOF-A-0010M
10
MH-S7-SRL-144-MPOF-MPOF-A-0015M
15
MH-S7-SRL-144-MPOF-MPOF-A-0020M
20
MH-S7-SRL-144-MPOF-MPOF-A-0025M
25
MH-S7-SRL-144-MPOF-MPOF-A-0030M
30
MH-S7-SRL-144-MPOF-MPOF-A-0040M
40
MH-S7-SRL-144-MPOF-MPOF-A-0050M
50
MH-S7-SRL-144-MPOF-MPOF-A-0060M
60
MH-S7-SRL-144-MPOF-MPOF-A-0070M
70
MH-S7-SRL-144-MPOF-MPOF-A-0080M
80
MH-S7-SRL-144-MPOF-MPOF-A-0090M
90
MH-S7-SRL-144-MPOF-MPOF-A-0100M
100
MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 144 fibre, MPO(Female)-MPO(Female) (Pol. B)
Part Number
Length (m)
MH-S7-SRL-144-MPOF-MPOF-B-0010M
10
MH-S7-SRL-144-MPOF-MPOF-B-0015M
15
MH-S7-SRL-144-MPOF-MPOF-B-0020M
20
MH-S7-SRL-144-MPOF-MPOF-B-0025M
25
MH-S7-SRL-144-MPOF-MPOF-B-0030M
30
MH-S7-SRL-144-MPOF-MPOF-B-0040M
40
MH-S7-SRL-144-MPOF-MPOF-B-0050M
50
MH-S7-SRL-144-MPOF-MPOF-B-0060M
60
MH-S7-SRL-144-MPOF-MPOF-B-0070M
70
MH-S7-SRL-144-MPOF-MPOF-B-0080M
80
MH-S7-SRL-144-MPOF-MPOF-B-0090M
90
MH-S7-SRL-144-MPOF-MPOF-B-0100M
100
MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 144 fibre, MPO(Female)-MPO(Female) (Pol. C)
Part Number
Length (m)
MH-S7-SRL-144-MPOF-MPOF-C-0010M
10
MH-S7-SRL-144-MPOF-MPOF-C-0015M
15
MH-S7-SRL-144-MPOF-MPOF-C-0020M
20
MH-S7-SRL-144-MPOF-MPOF-C-0025M
25
MH-S7-SRL-144-MPOF-MPOF-C-0030M
30
MH-S7-SRL-144-MPOF-MPOF-C-0040M
40
MH-S7-SRL-144-MPOF-MPOF-C-0050M
50
MH-S7-SRL-144-MPOF-MPOF-C-0060M
60
MH-S7-SRL-144-MPOF-MPOF-C-0070M
70
MH-S7-SRL-144-MPOF-MPOF-C-0080M
80
MH-S7-SRL-144-MPOF-MPOF-C-0090M
90
MH-S7-SRL-144-MPOF-MPOF-C-0100M
100

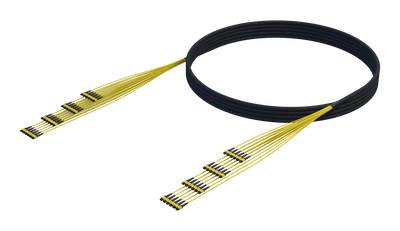

MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 288 fibre, MPO(Female)-MPO(Female) (Pol. A)
Part Number
Length (m)
MH-S7-SRL-288-MPOF-MPOF-A-0010M
10
MH-S7-SRL-288-MPOF-MPOF-A-0015M
15
MH-S7-SRL-288-MPOF-MPOF-A-0020M
20
MH-S7-SRL-288-MPOF-MPOF-A-0025M
25
MH-S7-SRL-288-MPOF-MPOF-A-0030M
30
MH-S7-SRL-288-MPOF-MPOF-A-0040M
40
MH-S7-SRL-288-MPOF-MPOF-A-0050M
50
MH-S7-SRL-288-MPOF-MPOF-A-0060M
60
MH-S7-SRL-288-MPOF-MPOF-A-0070M
70
MH-S7-SRL-288-MPOF-MPOF-A-0080M
80
MH-S7-SRL-288-MPOF-MPOF-A-0090M
90
MH-S7-SRL-288-MPOF-MPOF-A-0100M
100
MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 288 fibre, MPO(Female)-MPO(Female) (Pol. B)
Part Number
Length (m)
MH-S7-SRL-288-MPOF-MPOF-B-0010M
10
MH-S7-SRL-288-MPOF-MPOF-B-0015M
15
MH-S7-SRL-288-MPOF-MPOF-B-0020M
20
MH-S7-SRL-288-MPOF-MPOF-B-0025M
25
MH-S7-SRL-288-MPOF-MPOF-B-0030M
30
MH-S7-SRL-288-MPOF-MPOF-B-0040M
40
MH-S7-SRL-288-MPOF-MPOF-B-0050M
50
MH-S7-SRL-288-MPOF-MPOF-B-0060M
60
MH-S7-SRL-288-MPOF-MPOF-B-0070M
70
MH-S7-SRL-288-MPOF-MPOF-B-0080M
80
MH-S7-SRL-288-MPOF-MPOF-B-0090M
90
MH-S7-SRL-288-MPOF-MPOF-B-0100M
100
MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 288 fibre, MPO(Female)-MPO(Female) (Pol. C)
Part Number
Length (m)
MH-S7-SRL-288-MPOF-MPOF-C-0010M
10
MH-S7-SRL-288-MPOF-MPOF-C-0015M
15
MH-S7-SRL-288-MPOF-MPOF-C-0020M
20
MH-S7-SRL-288-MPOF-MPOF-C-0025M
25
MH-S7-SRL-288-MPOF-MPOF-C-0030M
30
MH-S7-SRL-288-MPOF-MPOF-C-0040M
40
MH-S7-SRL-288-MPOF-MPOF-C-0050M
50
MH-S7-SRL-288-MPOF-MPOF-C-0060M
60
MH-S7-SRL-288-MPOF-MPOF-C-0070M
70
MH-S7-SRL-288-MPOF-MPOF-C-0080M
80
MH-S7-SRL-288-MPOF-MPOF-C-0090M
90
MH-S7-SRL-288-MPOF-MPOF-C-0100M
100

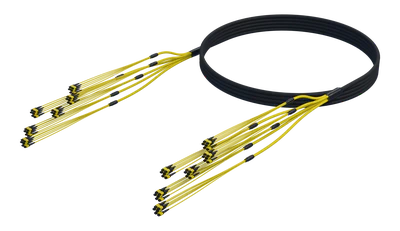

MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 432 fibre, MPO(Female)-MPO(Female) (Pol. A)
Part Number
Length (m)
MH-S7-SRL-432-MPOF-MPOF-A-0010M
10
MH-S7-SRL-432-MPOF-MPOF-A-0015M
15
MH-S7-SRL-432-MPOF-MPOF-A-0020M
20
MH-S7-SRL-432-MPOF-MPOF-A-0025M
25
MH-S7-SRL-432-MPOF-MPOF-A-0030M
30
MH-S7-SRL-432-MPOF-MPOF-A-0040M
40
MH-S7-SRL-432-MPOF-MPOF-A-0050M
50
MH-S7-SRL-432-MPOF-MPOF-A-0060M
60
MH-S7-SRL-432-MPOF-MPOF-A-0070M
70
MH-S7-SRL-432-MPOF-MPOF-A-0080M
80
MH-S7-SRL-432-MPOF-MPOF-A-0090M
90
MH-S7-SRL-432-MPOF-MPOF-A-0100M
100
MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 432 fibre, MPO(Female)-MPO(Female) (Pol. B)
Part Number
Length (m)
MH-S7-SRL-432-MPOF-MPOF-B-0010M
10
MH-S7-SRL-432-MPOF-MPOF-B-0015M
15
MH-S7-SRL-432-MPOF-MPOF-B-0020M
20
MH-S7-SRL-432-MPOF-MPOF-B-0025M
25
MH-S7-SRL-432-MPOF-MPOF-B-0030M
30
MH-S7-SRL-432-MPOF-MPOF-B-0040M
40
MH-S7-SRL-432-MPOF-MPOF-B-0050M
50
MH-S7-SRL-432-MPOF-MPOF-B-0060M
60
MH-S7-SRL-432-MPOF-MPOF-B-0070M
70
MH-S7-SRL-432-MPOF-MPOF-B-0080M
80
MH-S7-SRL-432-MPOF-MPOF-B-0090M
90
MH-S7-SRL-432-MPOF-MPOF-B-0100M
100
MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 432 fibre, MPO(Female)-MPO(Female) (Pol. C)
Part Number
Length (m)
MH-S7-SRL-432-MPOF-MPOF-C-0010M
10
MH-S7-SRL-432-MPOF-MPOF-C-0015M
15
MH-S7-SRL-432-MPOF-MPOF-C-0020M
20
MH-S7-SRL-432-MPOF-MPOF-C-0025M
25
MH-S7-SRL-432-MPOF-MPOF-C-0030M
30
MH-S7-SRL-432-MPOF-MPOF-C-0040M
40
MH-S7-SRL-432-MPOF-MPOF-C-0050M
50
MH-S7-SRL-432-MPOF-MPOF-C-0060M
60
MH-S7-SRL-432-MPOF-MPOF-C-0070M
70
MH-S7-SRL-432-MPOF-MPOF-C-0080M
80
MH-S7-SRL-432-MPOF-MPOF-C-0090M
90
MH-S7-SRL-432-MPOF-MPOF-C-0100M
100

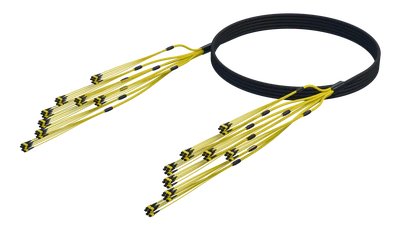

MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 576 fibre, MPO(Female)-MPO(Female) (Pol. A)
Part Number
Length (m)
MH-S7-SRL-576-MPOF-MPOF-A-0010M
10
MH-S7-SRL-576-MPOF-MPOF-A-0015M
15
MH-S7-SRL-576-MPOF-MPOF-A-0020M
20
MH-S7-SRL-576-MPOF-MPOF-A-0025M
25
MH-S7-SRL-576-MPOF-MPOF-A-0030M
30
MH-S7-SRL-576-MPOF-MPOF-A-0040M
40
MH-S7-SRL-576-MPOF-MPOF-A-0050M
50
MH-S7-SRL-576-MPOF-MPOF-A-0060M
60
MH-S7-SRL-576-MPOF-MPOF-A-0070M
70
MH-S7-SRL-576-MPOF-MPOF-A-0080M
80
MH-S7-SRL-576-MPOF-MPOF-A-0090M
90
MH-S7-SRL-576-MPOF-MPOF-A-0100M
100
MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 576 fibre, MPO(Female)-MPO(Female) (Pol. B)
Part Number
Length (m)
MH-S7-SRL-576-MPOF-MPOF-B-0010M
10
MH-S7-SRL-576-MPOF-MPOF-B-0015M
15
MH-S7-SRL-576-MPOF-MPOF-B-0020M
20
MH-S7-SRL-576-MPOF-MPOF-B-0025M
25
MH-S7-SRL-576-MPOF-MPOF-B-0030M
30
MH-S7-SRL-576-MPOF-MPOF-B-0040M
40
MH-S7-SRL-576-MPOF-MPOF-B-0050M
50
MH-S7-SRL-576-MPOF-MPOF-B-0060M
60
MH-S7-SRL-576-MPOF-MPOF-B-0070M
70
MH-S7-SRL-576-MPOF-MPOF-B-0080M
80
MH-S7-SRL-576-MPOF-MPOF-B-0090M
90
MH-S7-SRL-576-MPOF-MPOF-B-0100M
100
MPO Trunk Assembly, SmartRIBBON™ LSZH, Single Mode (G.657.A1), 576 fibre, MPO(Female)-MPO(Female) (Pol. C)
Part Number
Length (m)
MH-S7-SRL-576-MPOF-MPOF-C-0010M
10
MH-S7-SRL-576-MPOF-MPOF-C-0015M
15
MH-S7-SRL-576-MPOF-MPOF-C-0020M
20
MH-S7-SRL-576-MPOF-MPOF-C-0025M
25
MH-S7-SRL-576-MPOF-MPOF-C-0030M
30
MH-S7-SRL-576-MPOF-MPOF-C-0040M
40
MH-S7-SRL-576-MPOF-MPOF-C-0050M
50
MH-S7-SRL-576-MPOF-MPOF-C-0060M
60
MH-S7-SRL-576-MPOF-MPOF-C-0070M
70
MH-S7-SRL-576-MPOF-MPOF-C-0080M
80
MH-S7-SRL-576-MPOF-MPOF-C-0090M
90
MH-S7-SRL-576-MPOF-MPOF-C-0100M
100
MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 144 fibre, MPO(Female)-MPO(Female) (Pol. A)
Part Number
Length (ft)
MH-S7-SRR-144-MPOF-MPOF-A-0030F
30
MH-S7-SRR-144-MPOF-MPOF-A-0050F
50
MH-S7-SRR-144-MPOF-MPOF-A-0065F
65
MH-S7-SRR-144-MPOF-MPOF-A-0080F
80
MH-S7-SRR-144-MPOF-MPOF-A-0100F
100
MH-S7-SRR-144-MPOF-MPOF-A-0130F
130
MH-S7-SRR-144-MPOF-MPOF-A-0150F
150
MH-S7-SRR-144-MPOF-MPOF-A-0165F
165
MH-S7-SRR-144-MPOF-MPOF-A-0200F
200
MH-S7-SRR-144-MPOF-MPOF-A-0230F
230
MH-S7-SRR-144-MPOF-MPOF-A-0250F
250
MH-S7-SRR-144-MPOF-MPOF-A-0300F
300
MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 144 fibre, MPO(Female)-MPO(Female) (Pol. B)
Part Number
Length (ft)
MH-S7-SRR-144-MPOF-MPOF-B-0030F
30
MH-S7-SRR-144-MPOF-MPOF-B-0050F
50
MH-S7-SRR-144-MPOF-MPOF-B-0065F
65
MH-S7-SRR-144-MPOF-MPOF-B-0080F
80
MH-S7-SRR-144-MPOF-MPOF-B-0100F
100
MH-S7-SRR-144-MPOF-MPOF-B-0130F
130
MH-S7-SRR-144-MPOF-MPOF-B-0150F
150
MH-S7-SRR-144-MPOF-MPOF-B-0165F
165
MH-S7-SRR-144-MPOF-MPOF-B-0200F
200
MH-S7-SRR-144-MPOF-MPOF-B-0230F
230
MH-S7-SRR-144-MPOF-MPOF-B-0250F
250
MH-S7-SRR-144-MPOF-MPOF-B-0300F
300
MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 144 fibre, MPO(Female)-MPO(Female) (Pol. C)
Part Number
Length (ft)
MH-S7-SRR-144-MPOF-MPOF-C-0030F
30
MH-S7-SRR-144-MPOF-MPOF-C-0050F
50
MH-S7-SRR-144-MPOF-MPOF-C-0065F
65
MH-S7-SRR-144-MPOF-MPOF-C-0080F
80
MH-S7-SRR-144-MPOF-MPOF-C-0100F
100
MH-S7-SRR-144-MPOF-MPOF-C-0130F
130
MH-S7-SRR-144-MPOF-MPOF-C-0150F
150
MH-S7-SRR-144-MPOF-MPOF-C-0165F
165
MH-S7-SRR-144-MPOF-MPOF-C-0200F
200
MH-S7-SRR-144-MPOF-MPOF-C-0230F
230
MH-S7-SRR-144-MPOF-MPOF-C-0250F
250
MH-S7-SRR-144-MPOF-MPOF-C-0300F
300
MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 288 fibre, MPO(Female)-MPO(Female) (Pol. A)
Part Number
Length (ft)
MH-S7-SRR-288-MPOF-MPOF-A-0030F
30
MH-S7-SRR-288-MPOF-MPOF-A-0050F
50
MH-S7-SRR-288-MPOF-MPOF-A-0065F
65
MH-S7-SRR-288-MPOF-MPOF-A-0080F
80
MH-S7-SRR-288-MPOF-MPOF-A-0100F
100
MH-S7-SRR-288-MPOF-MPOF-A-0130F
130
MH-S7-SRR-288-MPOF-MPOF-A-0150F
150
MH-S7-SRR-288-MPOF-MPOF-A-0165F
165
MH-S7-SRR-288-MPOF-MPOF-A-0200F
200
MH-S7-SRR-288-MPOF-MPOF-A-0230F
230
MH-S7-SRR-288-MPOF-MPOF-A-0250F
250
MH-S7-SRR-288-MPOF-MPOF-A-0300F
300
MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 288 fibre, MPO(Female)-MPO(Female) (Pol. B)
Part Number
Length (ft)
MH-S7-SRR-288-MPOF-MPOF-B-0030F
30
MH-S7-SRR-288-MPOF-MPOF-B-0050F
50
MH-S7-SRR-288-MPOF-MPOF-B-0065F
65
MH-S7-SRR-288-MPOF-MPOF-B-0080F
80
MH-S7-SRR-288-MPOF-MPOF-B-0100F
100
MH-S7-SRR-288-MPOF-MPOF-B-0130F
130
MH-S7-SRR-288-MPOF-MPOF-B-0150F
150
MH-S7-SRR-288-MPOF-MPOF-B-0165F
165
MH-S7-SRR-288-MPOF-MPOF-B-0200F
200
MH-S7-SRR-288-MPOF-MPOF-B-0230F
230
MH-S7-SRR-288-MPOF-MPOF-B-0250F
250
MH-S7-SRR-288-MPOF-MPOF-B-0300F
300
MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 288 fibre, MPO(Female)-MPO(Female) (Pol. C)
Part Number
Length (ft)
MH-S7-SRR-288-MPOF-MPOF-C-0030F
30
MH-S7-SRR-288-MPOF-MPOF-C-0050F
50
MH-S7-SRR-288-MPOF-MPOF-C-0065F
65
MH-S7-SRR-288-MPOF-MPOF-C-0080F
80
MH-S7-SRR-288-MPOF-MPOF-C-0100F
100
MH-S7-SRR-288-MPOF-MPOF-C-0130F
130
MH-S7-SRR-288-MPOF-MPOF-C-0150F
150
MH-S7-SRR-288-MPOF-MPOF-C-0165F
165
MH-S7-SRR-288-MPOF-MPOF-C-0200F
200
MH-S7-SRR-288-MPOF-MPOF-C-0230F
230
MH-S7-SRR-288-MPOF-MPOF-C-0250F
250
MH-S7-SRR-288-MPOF-MPOF-C-0300F
300
MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 432 fibre, MPO(Female)-MPO(Female) (Pol. A)
Part Number
Length (ft)
MH-S7-SRR-432-MPOF-MPOF-A-0030F
30
MH-S7-SRR-432-MPOF-MPOF-A-0050F
50
MH-S7-SRR-432-MPOF-MPOF-A-0065F
65
MH-S7-SRR-432-MPOF-MPOF-A-0080F
80
MH-S7-SRR-432-MPOF-MPOF-A-0100F
100
MH-S7-SRR-432-MPOF-MPOF-A-0130F
130
MH-S7-SRR-432-MPOF-MPOF-A-0150F
150
MH-S7-SRR-432-MPOF-MPOF-A-0165F
165
MH-S7-SRR-432-MPOF-MPOF-A-0200F
200
MH-S7-SRR-432-MPOF-MPOF-A-0230F
230
MH-S7-SRR-432-MPOF-MPOF-A-0250F
250
MH-S7-SRR-432-MPOF-MPOF-A-0300F
300
MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 432 fibre, MPO(Female)-MPO(Female) (Pol. B)
Part Number
Length (ft)
MH-S7-SRR-432-MPOF-MPOF-B-0030F
30
MH-S7-SRR-432-MPOF-MPOF-B-0050F
50
MH-S7-SRR-432-MPOF-MPOF-B-0065F
65
MH-S7-SRR-432-MPOF-MPOF-B-0080F
80
MH-S7-SRR-432-MPOF-MPOF-B-0100F
100
MH-S7-SRR-432-MPOF-MPOF-B-0130F
130
MH-S7-SRR-432-MPOF-MPOF-B-0150F
150
MH-S7-SRR-432-MPOF-MPOF-B-0165F
165
MH-S7-SRR-432-MPOF-MPOF-B-0200F
200
MH-S7-SRR-432-MPOF-MPOF-B-0230F
230
MH-S7-SRR-432-MPOF-MPOF-B-0250F
250
MH-S7-SRR-432-MPOF-MPOF-B-0300F
300
MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 432 fibre, MPO(Female)-MPO(Female) (Pol. C)
Part Number
Length (ft)
MH-S7-SRR-432-MPOF-MPOF-C-0030F
30
MH-S7-SRR-432-MPOF-MPOF-C-0050F
50
MH-S7-SRR-432-MPOF-MPOF-C-0065F
65
MH-S7-SRR-432-MPOF-MPOF-C-0080F
80
MH-S7-SRR-432-MPOF-MPOF-C-0100F
100
MH-S7-SRR-432-MPOF-MPOF-C-0130F
130
MH-S7-SRR-432-MPOF-MPOF-C-0150F
150
MH-S7-SRR-432-MPOF-MPOF-C-0165F
165
MH-S7-SRR-432-MPOF-MPOF-C-0200F
200
MH-S7-SRR-432-MPOF-MPOF-C-0230F
230
MH-S7-SRR-432-MPOF-MPOF-C-0250F
250
MH-S7-SRR-432-MPOF-MPOF-C-0300F
300
MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 576 fibre, MPO(Female)-MPO(Female) (Pol. A)
Part Number
Length (ft)
MH-S7-SRR-576-MPOF-MPOF-A-0030F
30
MH-S7-SRR-576-MPOF-MPOF-A-0050F
50
MH-S7-SRR-576-MPOF-MPOF-A-0065F
65
MH-S7-SRR-576-MPOF-MPOF-A-0080F
80
MH-S7-SRR-576-MPOF-MPOF-A-0100F
100
MH-S7-SRR-576-MPOF-MPOF-A-0130F
130
MH-S7-SRR-576-MPOF-MPOF-A-0150F
150
MH-S7-SRR-576-MPOF-MPOF-A-0165F
165
MH-S7-SRR-576-MPOF-MPOF-A-0200F
200
MH-S7-SRR-576-MPOF-MPOF-A-0230F
230
MH-S7-SRR-576-MPOF-MPOF-A-0250F
250
MH-S7-SRR-576-MPOF-MPOF-A-0300F
300
MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 576 fibre, MPO(Female)-MPO(Female) (Pol. B)
Part Number
Length (ft)
MH-S7-SRR-576-MPOF-MPOF-B-0030F
30
MH-S7-SRR-576-MPOF-MPOF-B-0050F
50
MH-S7-SRR-576-MPOF-MPOF-B-0065F
65
MH-S7-SRR-576-MPOF-MPOF-B-0080F
80
MH-S7-SRR-576-MPOF-MPOF-B-0100F
100
MH-S7-SRR-576-MPOF-MPOF-B-0130F
130
MH-S7-SRR-576-MPOF-MPOF-B-0150F
150
MH-S7-SRR-576-MPOF-MPOF-B-0165F
165
MH-S7-SRR-576-MPOF-MPOF-B-0200F
200
MH-S7-SRR-576-MPOF-MPOF-B-0230F
230
MH-S7-SRR-576-MPOF-MPOF-B-0250F
250
MH-S7-SRR-576-MPOF-MPOF-B-0300F
300
MPO Trunk Assembly, SmartRIBBON™ OFNR, Single Mode (G.657.A1), 576 fibre, MPO(Female)-MPO(Female) (Pol. C)
