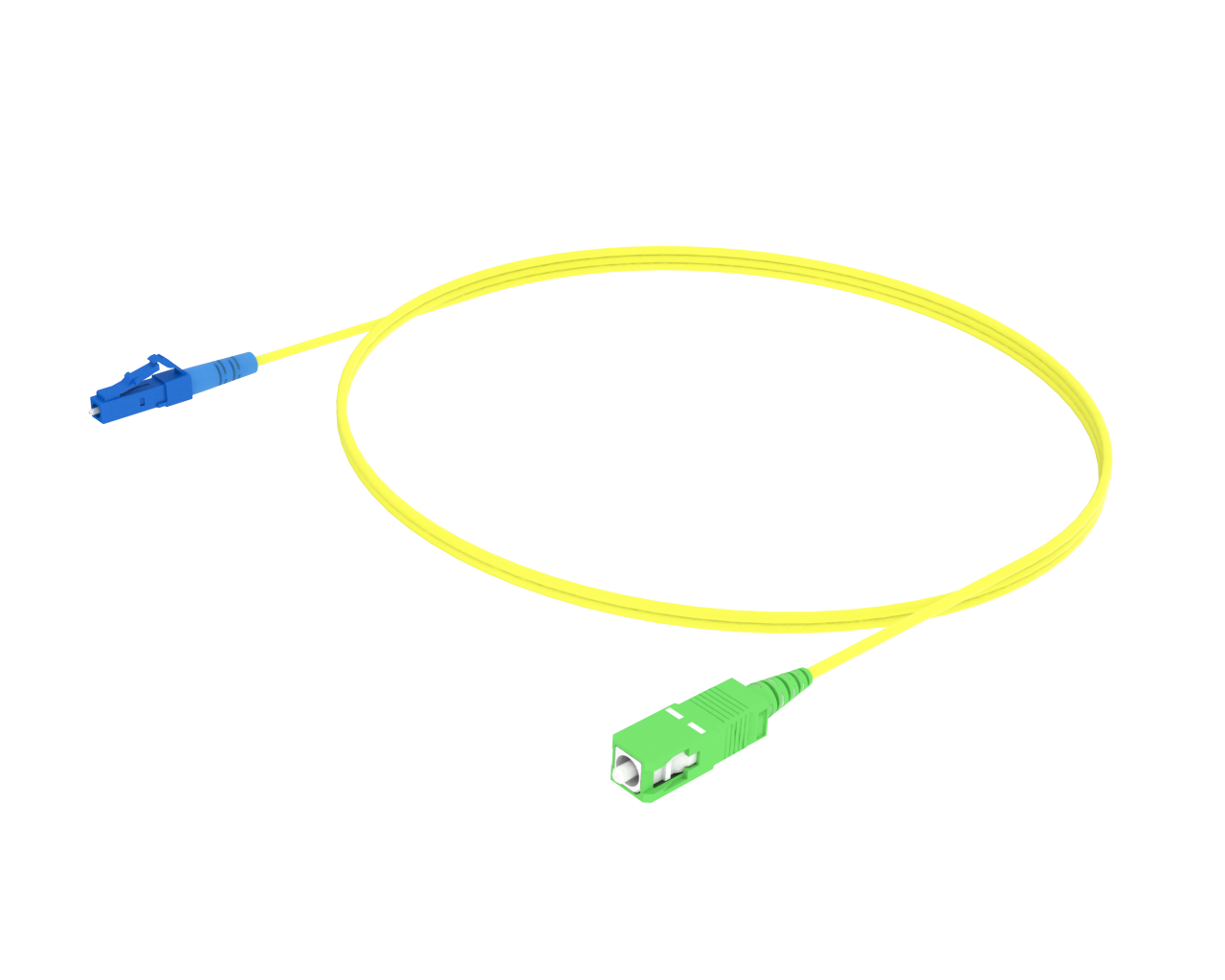

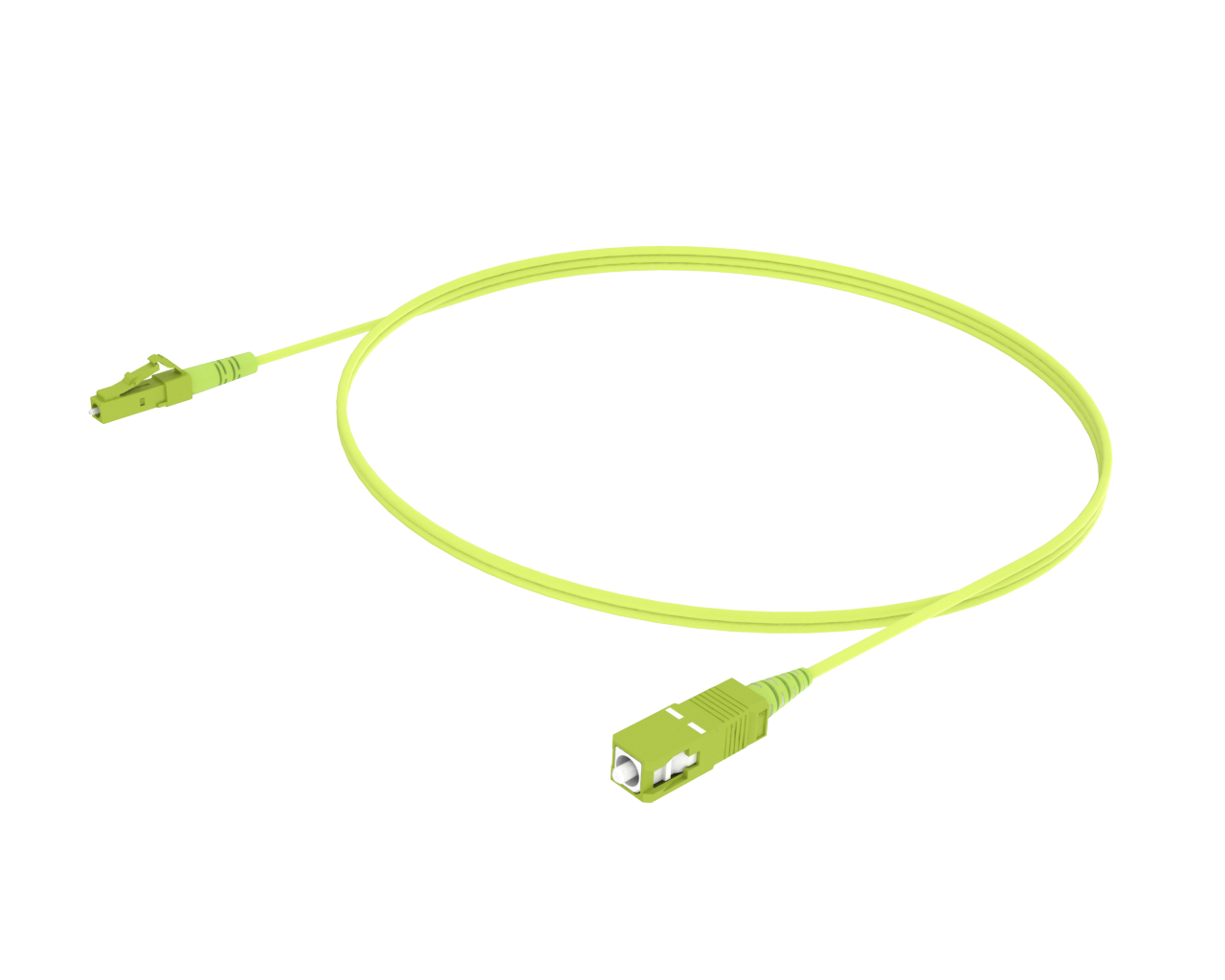

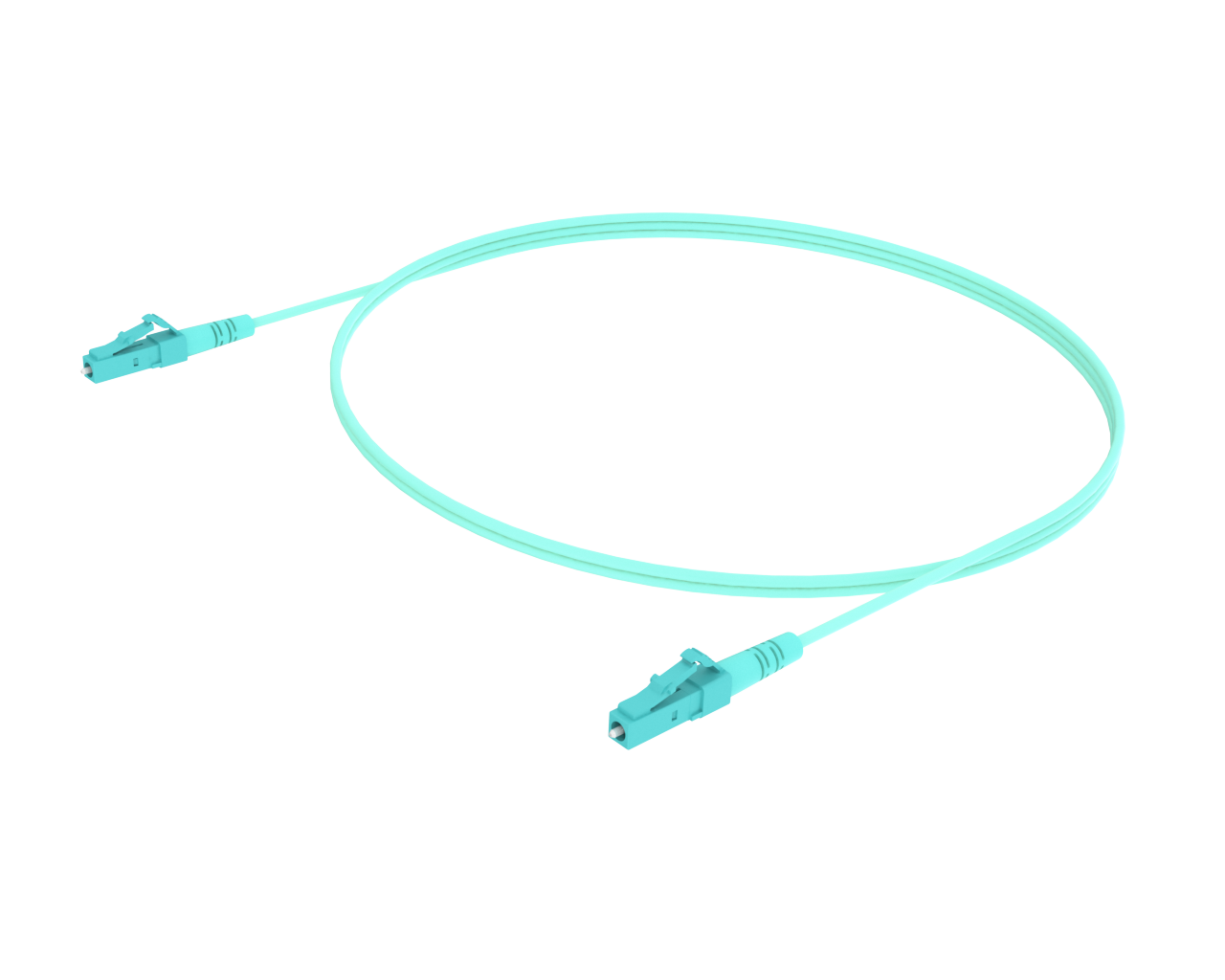

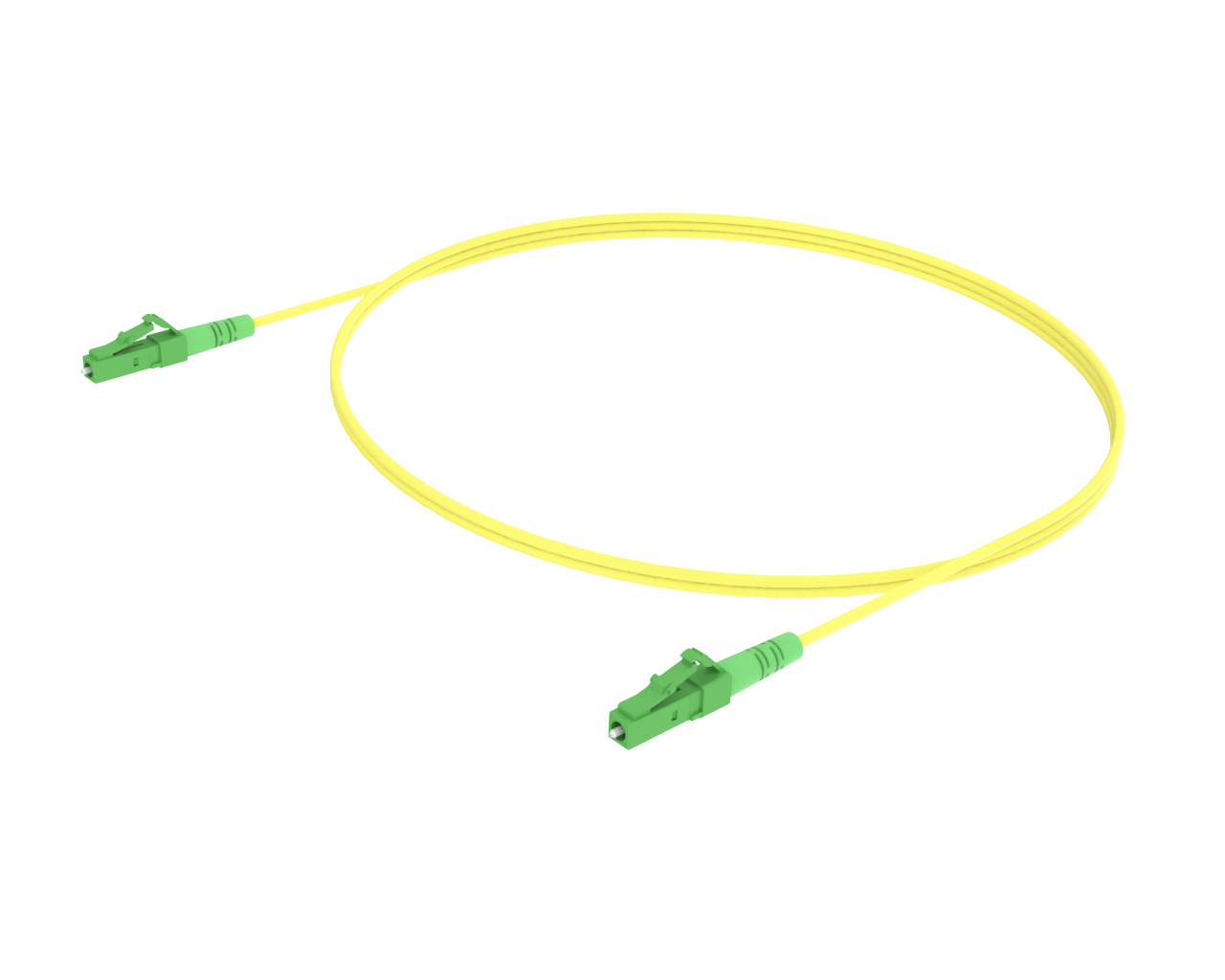

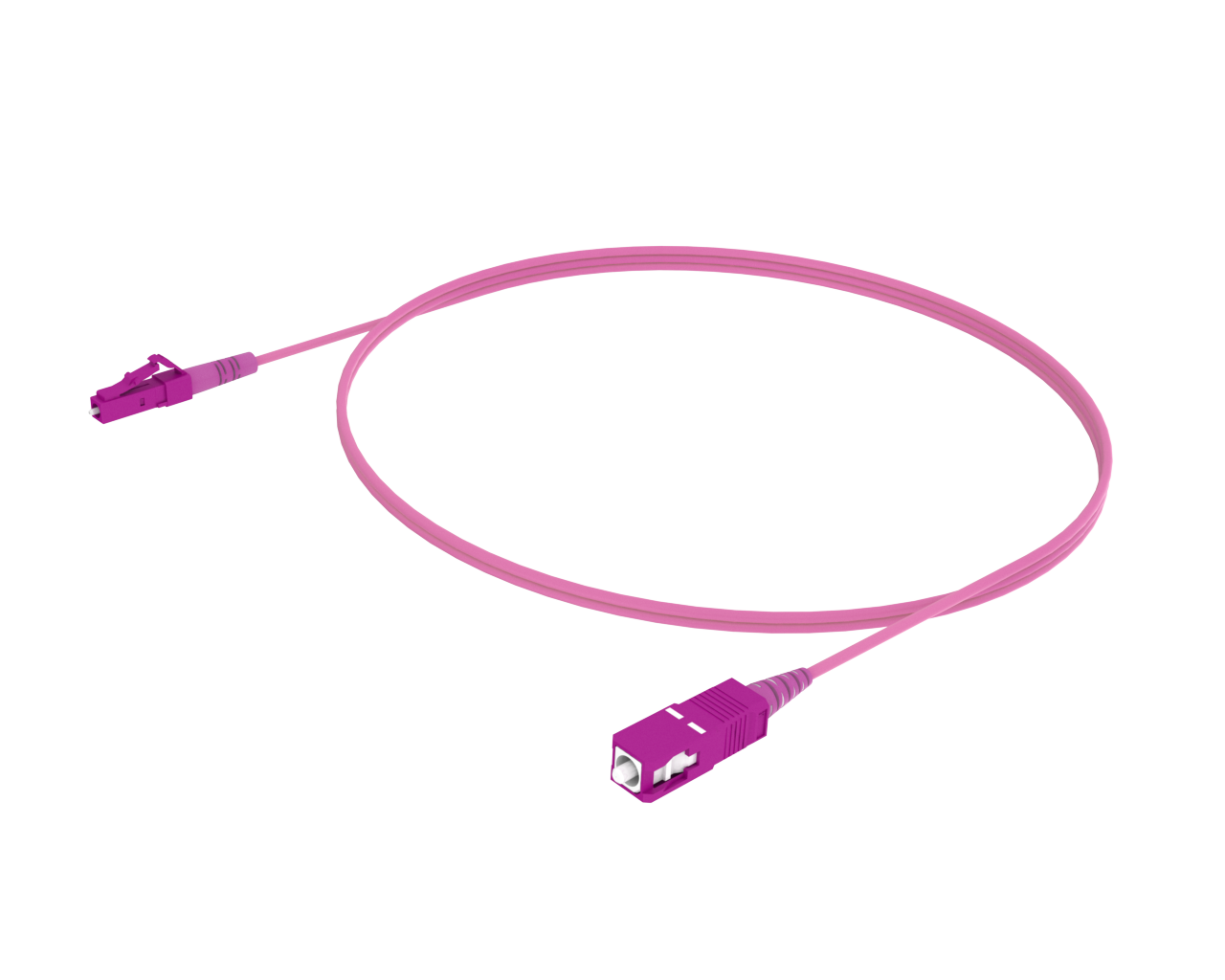

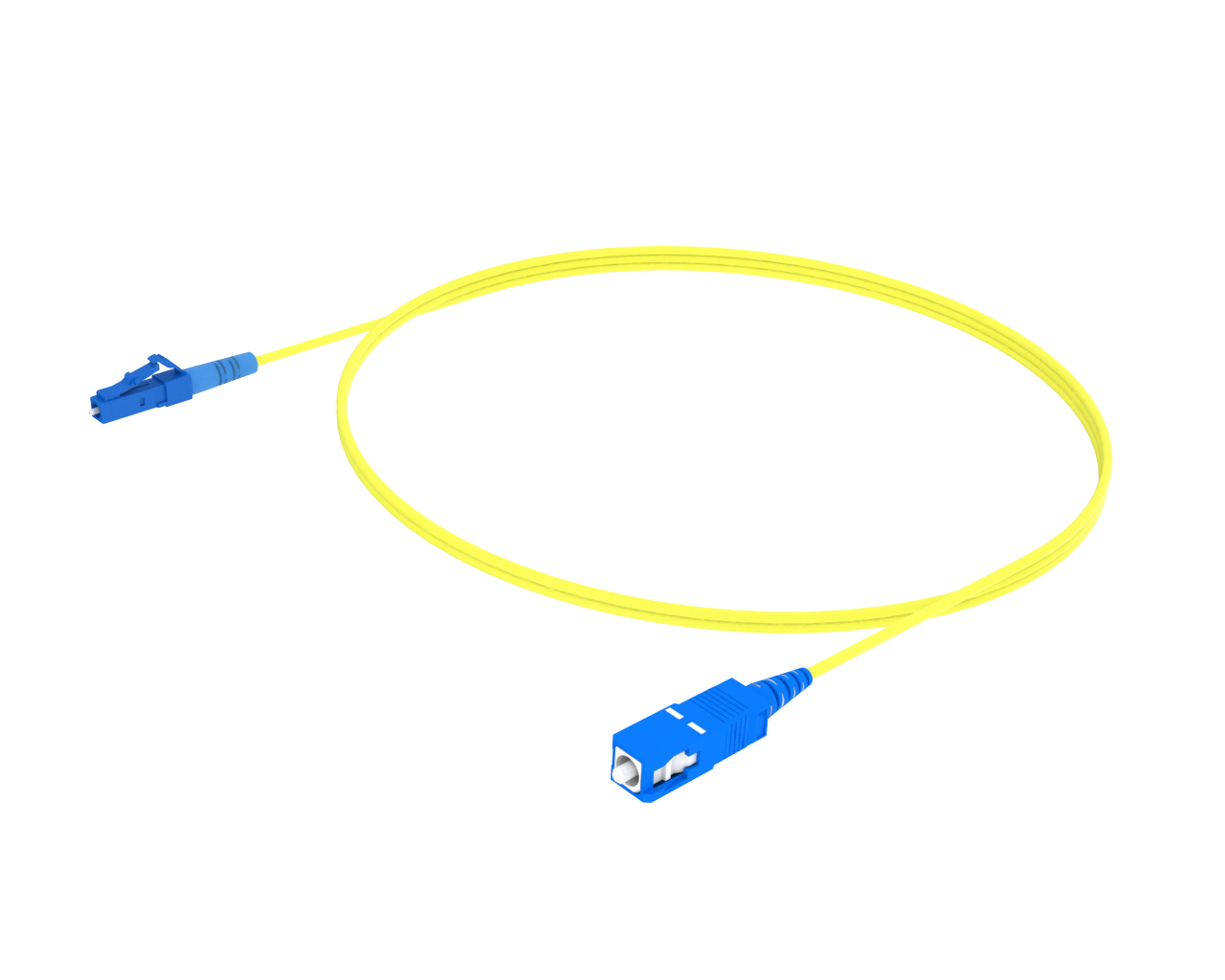

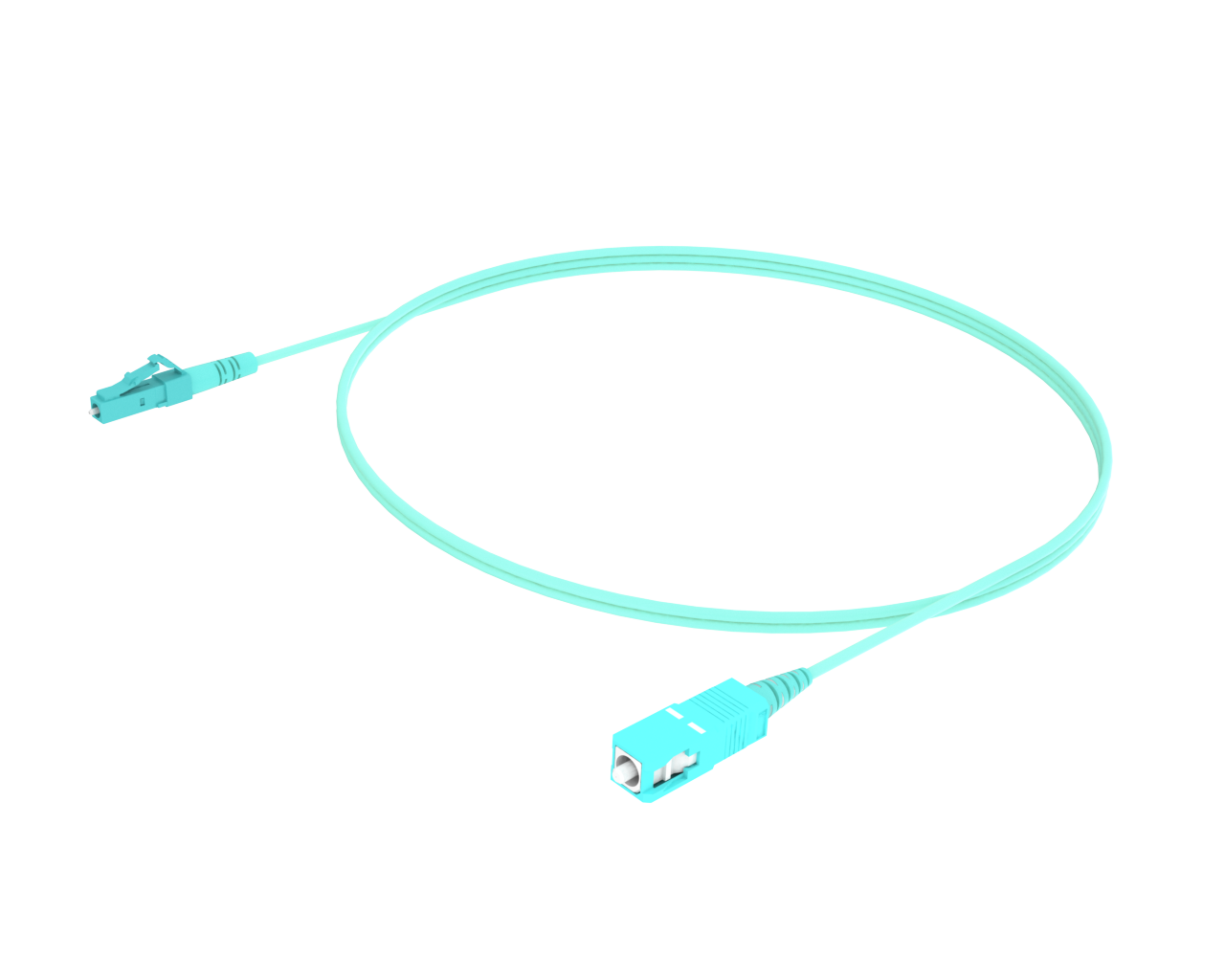

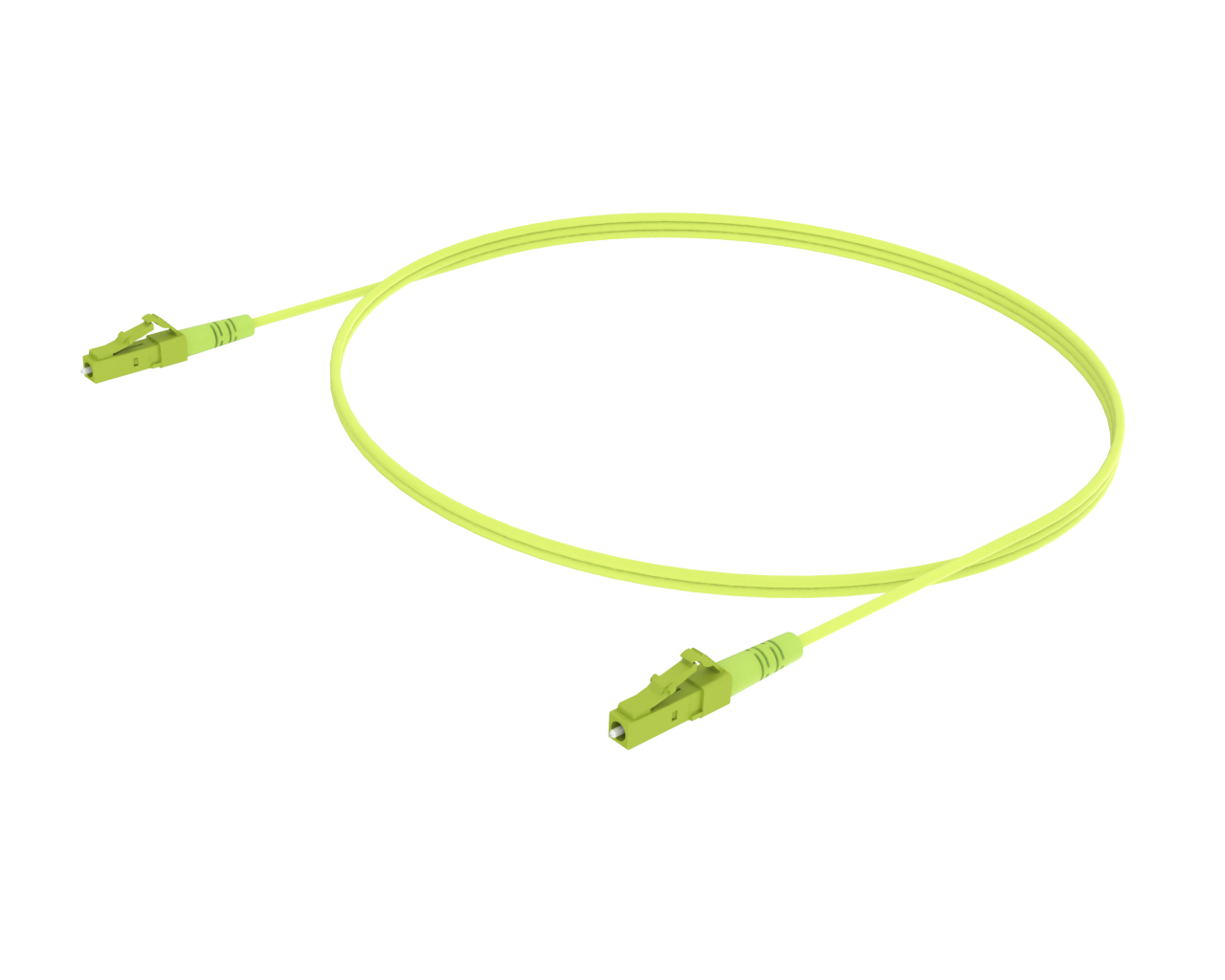

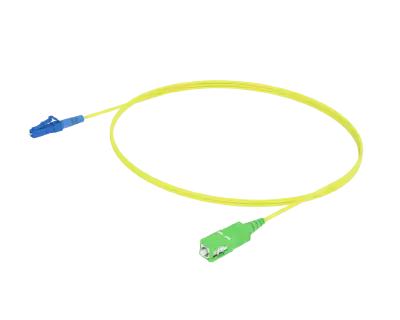

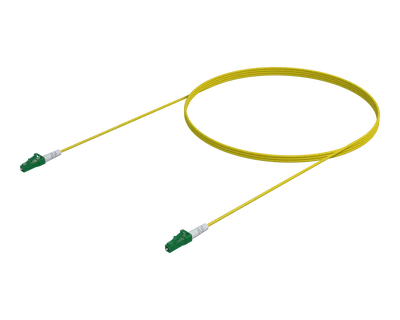

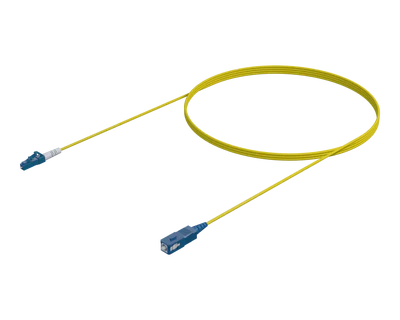

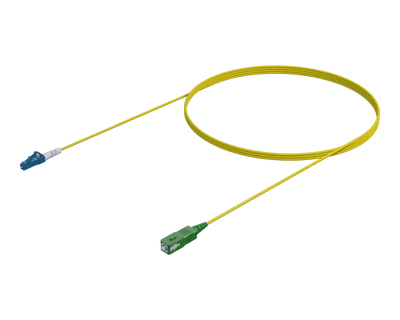

2mm simplex patch cords, available in multi-mode and single-mode optical fibre types, supporting everything from legacy networks to modern 800G infrastructure.
2mm simplex construction with LSZH jacket
Short‑boot for high‑density spaces
Support for various fibre types

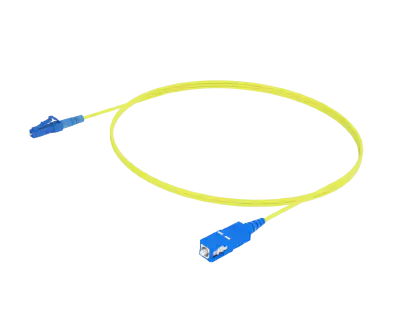

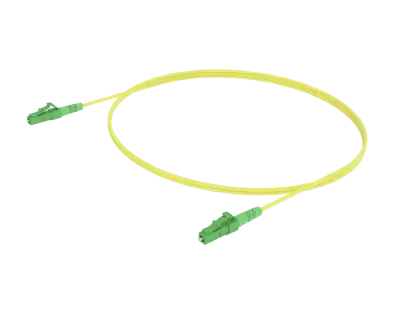

Available with LC, SC, FC, and ST connectors
Low insertion loss and high return loss
Colour-coded LSZH jackets for easy fibre type identification

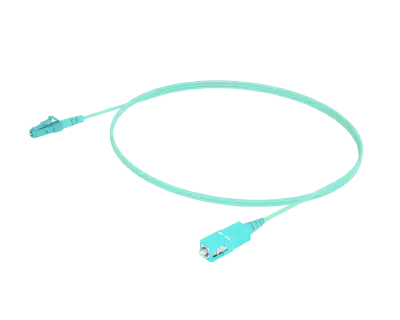

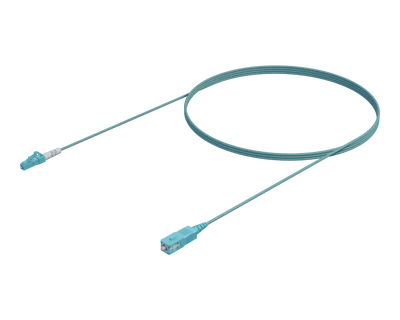

These 2mm simplex patch leads feature a single optical fibre in a compact round LSZH jacket, delivering flexibility, durability, and low-loss performance. Engineered to perform across multimode (OM1, OM4, OM5) and single-mode (OS2) systems, they suit applications ranging from enterprise networks to large-scale data centres.
Each assembly is terminated with factory-polished connectors (LC, SC, FC, ST) and tested for insertion loss and return loss to meet or exceed industry standards.
Compact, industry-leading short boot on LC and SC connectors for controlled bend radius in tight spaces. Ideal for point-to-point links between panels and equipment in enterprise, carrier, and hyperscale environments.
Technical Specifications
Fibre Type
Single-mode (OS2), Multimode (OM1, OM4, OM5)
Configuration

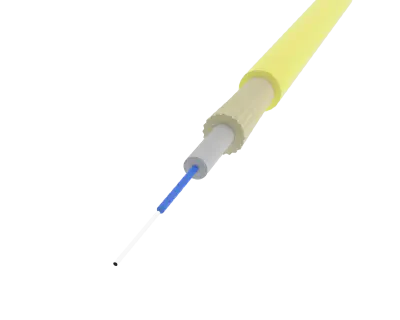

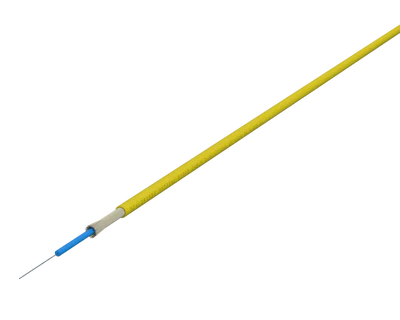

Simplex – 1 fibre in 2mm LSZH jacket
Connector Types
LC, SC, FC, ST (others on request)
Polish Options

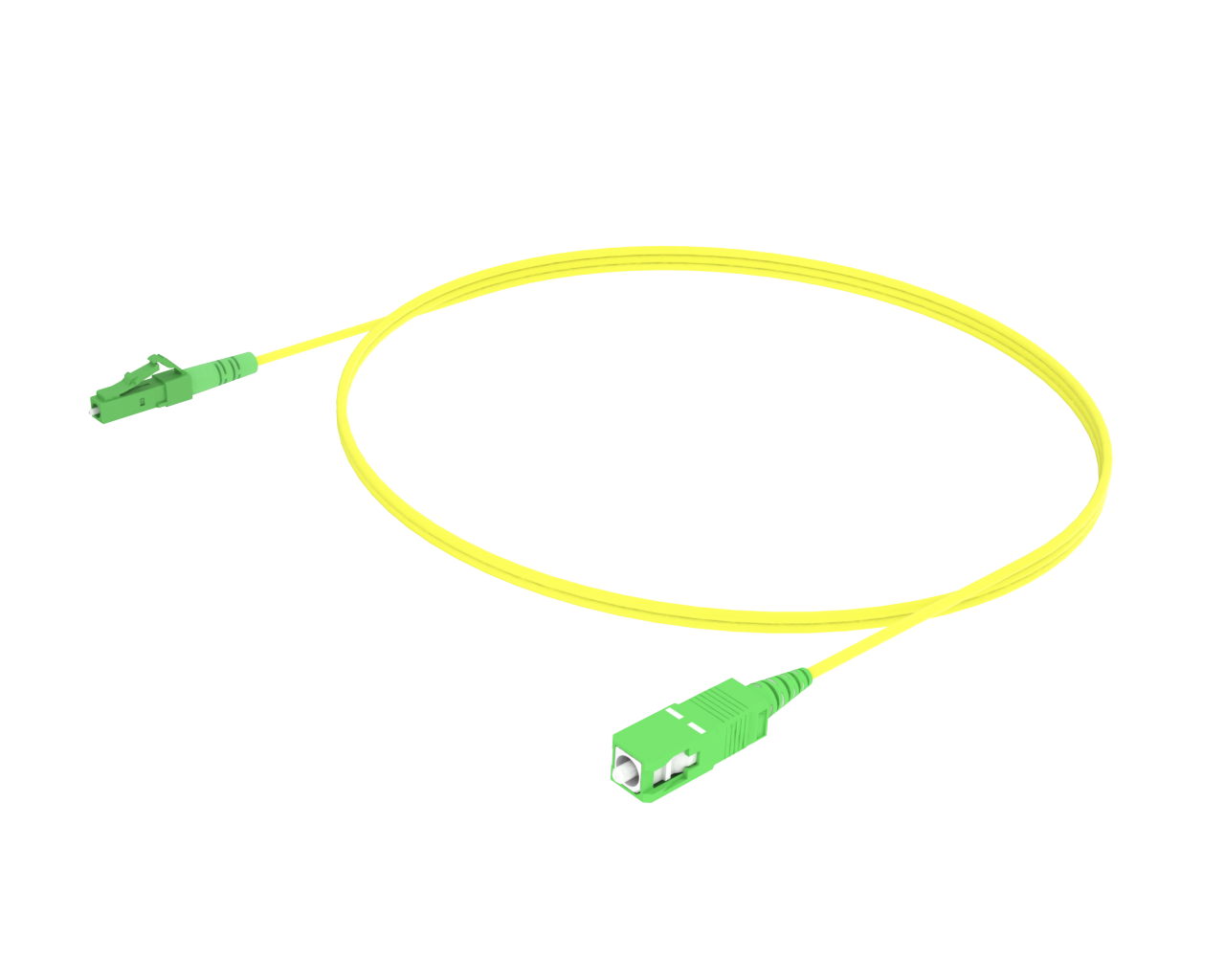

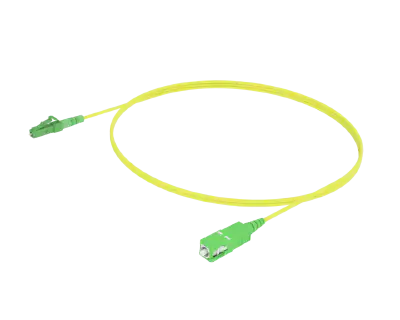

UPC or APC (SM); UPC standard (MM)
Insertion Loss
≤0.25dB typical
Return Loss
≥50dB (UPC SM), ≥60dB (APC SM), ≥30dB (MM)
Jacket Material
LSZH (Low Smoke Zero Halogen)
Jacket Colours

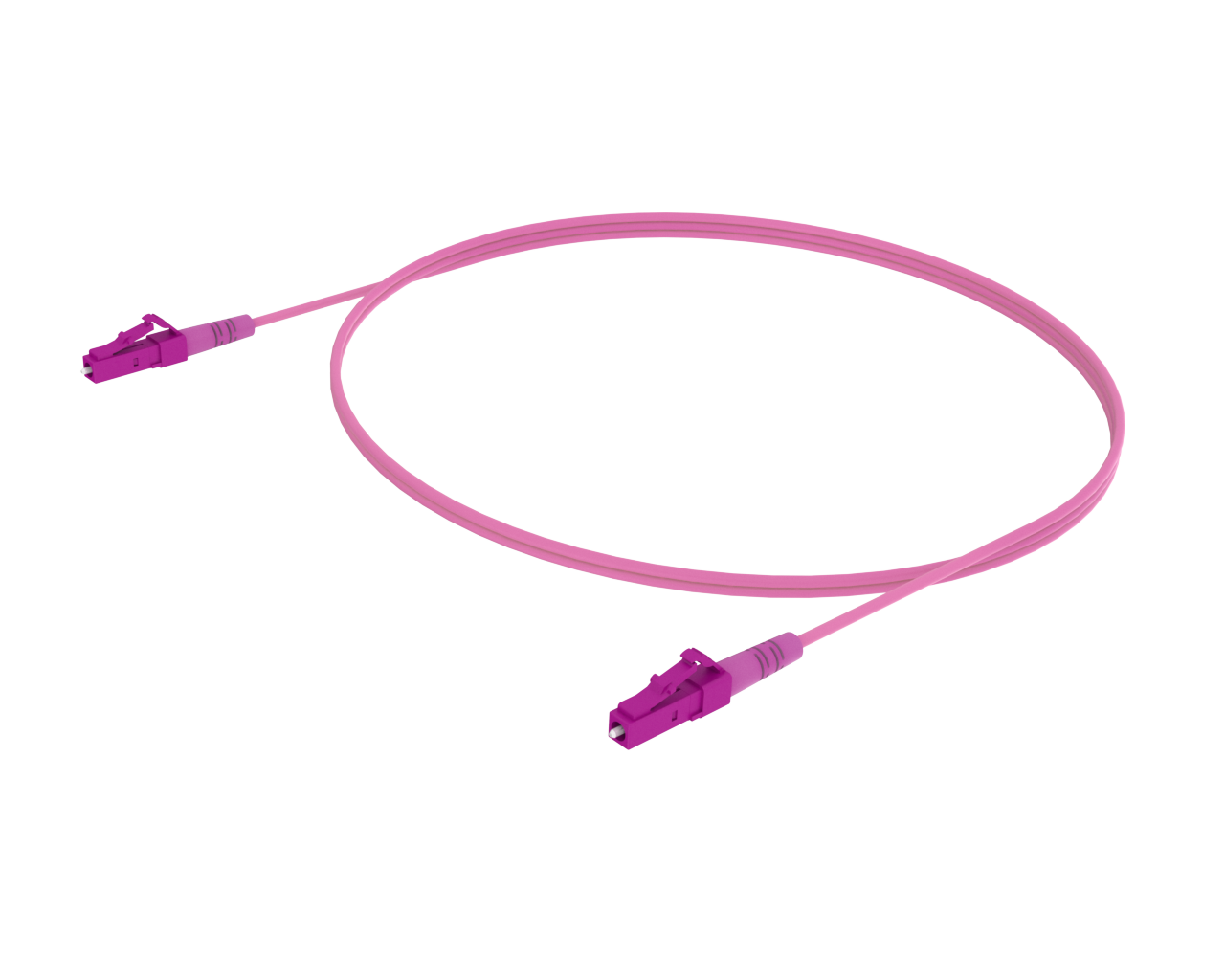

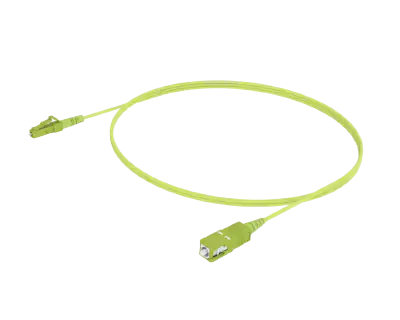

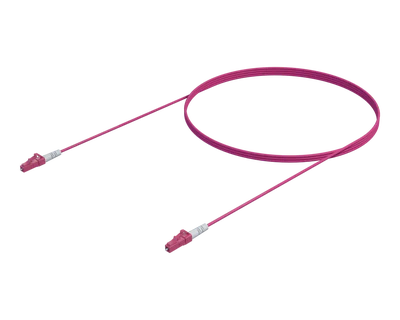

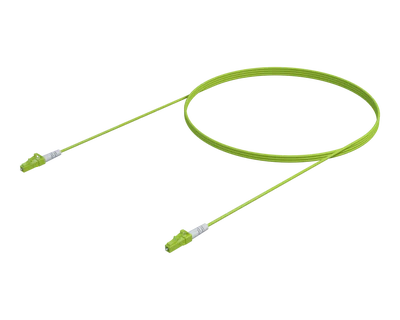

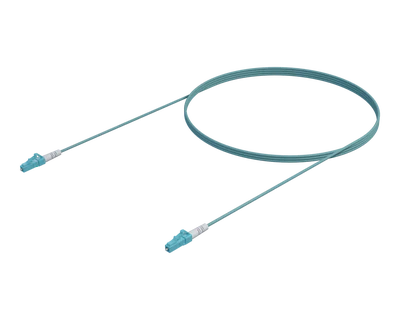

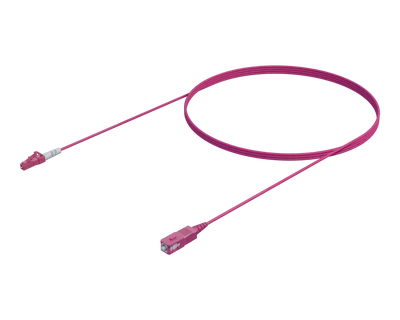

Yellow (OS2), Orange (OM1), Aqua/Erika Violet (OM4), Lime Green (OM5)
