- 2mm round duplex cable for compact routing
- OM4, OM5, and OS2 fibre types available
- LC pull-tab connector for easy insertion and removal
- LSZH jacket suitable for various environments
- Colour-coded jackets for quick fibre type identification
- Factory terminated to exceed industry standards
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured
Designed for modern high-density fibre networks, these 2mm round duplex patch leads combine durability with flexibility, using premium fibre for low-loss performance across a wide range of applications. Each assembly consists of two optical fibres enclosed in a single 2mm round LSZH jacket — ideal for patch panels, cross-connects, and active equipment interconnects.
Available in single-mode (OS2) and multimode (OM4, OM5) with reversible LC pull-tab connector for easy access. Assemblies are terminated and tested to international standards, ensuring consistent performance and reliability.
Intended for general-purpose duplex patching in MDF, IDF, and
cabinet-side cross-connect work across the Johannesburg and Cape Town
datacentre clusters, with applications in carrier-neutral interconnect
facilities serving Lagos and Nairobi business centres.
| Technical Specifications | |
| Fibre Type | Single-mode (OS2), Multimode (OM4, OM5) |

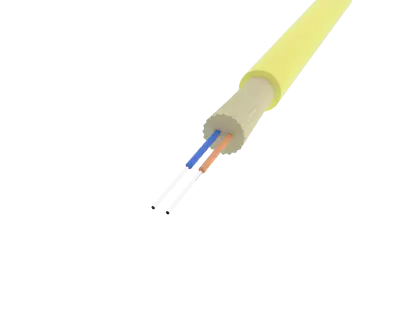

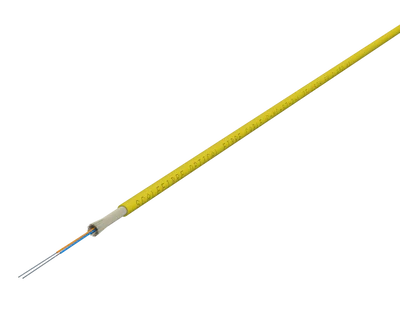

| Configuration | Duplex (2 fibres within a single 2mm round cord) |
| Connector Types | LC pull-tab connector for easy insertion and removal |
| Polish Options | UPC or APC (where applicable) |
| Insertion Loss | ≤0.25dB typical |
| Return Loss | ≥50dB (UPC), ≥60dB (APC) for single-mode ≥35dB for multi-mode |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Cable Diameter | 2.0mm round jacket |
| Operating Temperature | -20°C to +70°C |
| Compliance | TIA/EIA-568, IEC 61754, AS/CA S008, RoHS, REACH |
| LC/UPC to LC/UPC, 2mm Single Cord | |
| Part Number | Length (m) |
| PC-S7-D2-2-LCU-LCU-1M | 1 |
| PC-S7-D2-2-LCU-LCU-2M | 2 |
| PC-S7-D2-2-LCU-LCU-3M | 3 |
| PC-S7-D2-2-LCU-LCU-5M | 5 |
| PC-S7-D2-2-LCU-LCU-10M | 10 |
| LC/UPC to LC/APC, 2mm Single Cord | |
| Part Number | Length (m) |
| PC-S7-D2-2-LCU-LCAU-1M | 1 |
| PC-S7-D2-2-LCU-LCAU-2M | 2 |
| PC-S7-D2-2-LCU-LCAU-3M | 3 |
| PC-S7-D2-2-LCU-LCAU-5M | 5 |
| PC-S7-D2-2-LCU-LCAU-10M | 10 |

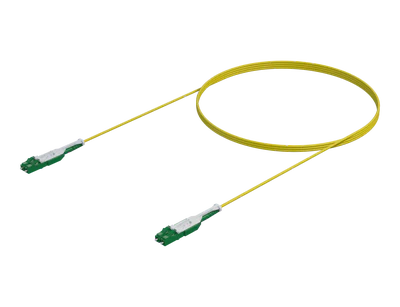

| LC/APC to LC/APC, 2mm Single Cord | |
| Part Number | Length (m) |
| PC-S7-D2-2-LCAU-LCAU-1M | 1 |
| PC-S7-D2-2-LCAU-LCAU-2M | 2 |
| PC-S7-D2-2-LCAU-LCAU-3M | 3 |
| PC-S7-D2-2-LCAU-LCAU-5M | 5 |
| PC-S7-D2-2-LCAU-LCAU-10M | 10 |
| LC/UPC to LC/UPC, 2mm Single Cord | |
| Part Number | Length (m) |

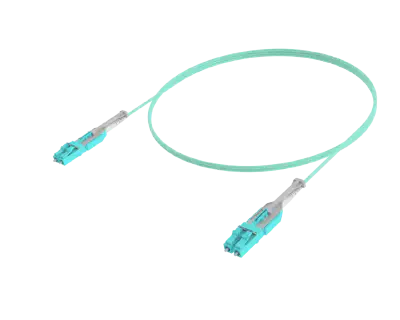

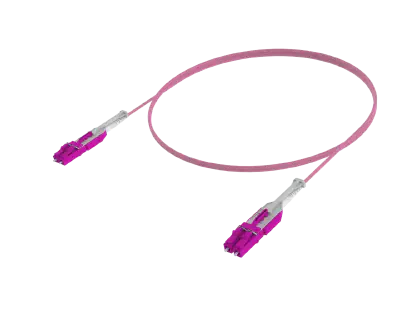

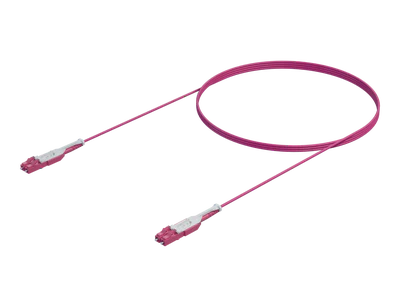

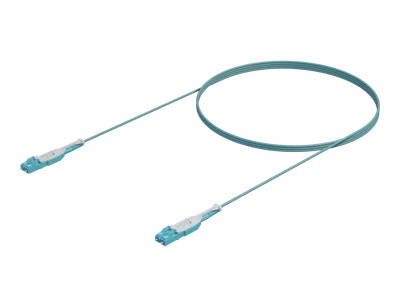

| PC-M4-D2-2-LCU-LCU-1M | 1 |
| PC-M4-D2-2-LCU-LCU-2M | 2 |
| PC-M4-D2-2-LCU-LCU-3M | 3 |
| PC-M4-D2-2-LCU-LCU-5M | 5 |
| PC-M4-D2-2-LCU-LCU-10M | 10 |
| LC/UPC to LC/UPC, 2mm Single Cord | |
| Part Number | Length (m) |

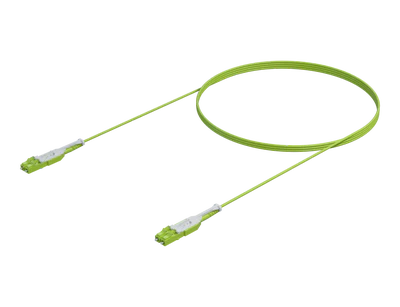

| PC-M5-D2-2-LCU-LCU-1M | 1 |
| PC-M5-D2-2-LCU-LCU-2M | 2 |
| PC-M5-D2-2-LCU-LCU-3M | 3 |
| PC-M5-D2-2-LCU-LCU-5M | 5 |
| PC-M5-D2-2-LCU-LCU-10M | 10 |
