- Tsarin HighSTACK™ mai tsayayyen ginshiki don matsakaicin kwanciyar hankali na haɗi
- AnchorLINK™ shigarwar gefe da baya don saurin gyaran kebul ba tare da kayan aiki ba
- Shutter LC Quadplex adapters don tsaron laser da kariya daga kura
- An riga an tsara shi da ribbon splice cassettes don aikin haɗaɗɗen haɗuwa
- Gina karfe 1.6 mm don cikakken tsari a ƙarƙashin cikakken kaya
- Lambobin tashoshi masu saukin gani don saurin gano kewaye
- Yana goyan bayan haɗawa, ƙarewa kai tsaye da kuma haɗuwa da aka riga aka gama
- Mai jituwa da daidaitattun rumbun 19 inch na masu jigilar kaya da bayanai
An Ƙera Don Zarcewa
An Bayar da Tabbatacce
Sayarwa Ta Zama Sauƙi
Shirye Don Gaggauta Tura
Shirye Don Faɗaɗawa
Bin Ka’ida Tabbas
Jerin HighSTACK™ shine kewayon keɓaɓɓun wuraren rufewa masu tsayayyu masu yawa waɗanda aka ƙera don manyan hanyoyin sadarwa na masu jigilar kaya da cibiyoyin bayanai. Ta hanyar amfani da ginshiki mai tauri, wanda baya motsawa, dandalin HighSTACK™ yana ba da cikakken kwanciyar hankali ga hanyoyin fiber masu yawa, yana kawar da haɗarin manyan lankwashewa ko matsin haɗi waɗanda ake dangantawa da tiren zamewa a cikin manyan muhallin yawa.
Akwai su a cikin tsarin 1RU, 2RU da 4RU, waɗannan gidaje an riga an cika su da LC Quadplex adapters masu rufe ido don tallafawa har zuwa fiber 576 a cikin ɗigon sawu guda ɗaya na 4RU. An inganta gine-ginen ciki don haɗaɗɗen haɗuwa, yana nuna wuraren hawa na musamman don ScaleFibre ribbon splice cassettes don tabbatar da canje-canje masu tsabta daga manyan layukan SmartRIBBON™ zuwa wuraren faci masu yawa.
Kowane wurin rufewa na HighSTACK™ yana fasalta tsarin AnchorLINK™ clip don haɗa kebul ba tare da kayan aiki ba. Waɗannan shirye-shiryen suna ba da damar shigar da kebul masu shigowa cikin baya ko gefen wuraren shiga nan take, suna samar da ingantacciyar rage damuwa da sarrafa radius na lankwasa ba tare da buƙatar igiyoyin gargajiya ko igiyoyin kebul ba.
| Ƙarfi & Yawa | |
| 1RU Ƙarfi | Fiber 144 (36 x LC Quad Adapters) |
| 2RU Ƙarfi | Fiber 288 (72 x LC Quad Adapters) |
| 4RU Ƙarfi | Fiber 576 (144 x LC Quad Adapters) |
| Salon Adafta | LC Quadplex An Rufe, Hannun Yumbu |
| Ayyukan Gani | |

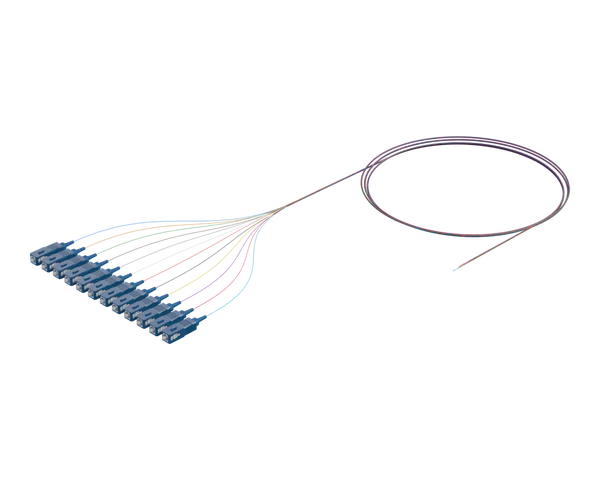

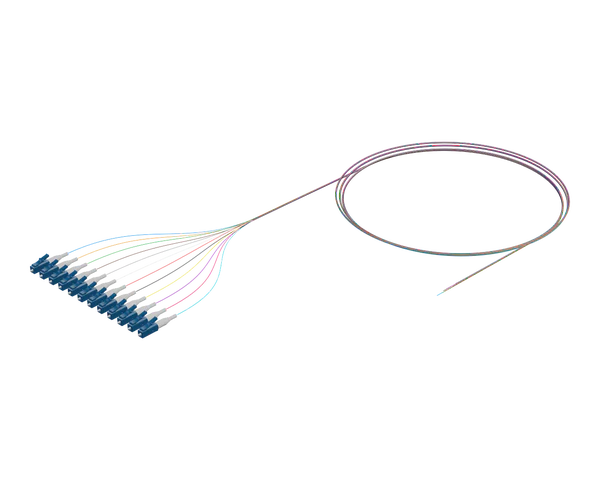

| Igiyoyin Wutsiya | An haɗa igiyoyin wutsiya a cikin tsarin haɗawa |
| Asarar Shigarwa | IEC 61753-1 Mataki B (Ma'ana ≤ 0.12dB; Max ≤ 0.25dB don >97%) |
| Asarar Komawa | LC/PC ≥ 50dB; LC/APC ≥ 65dB |
| Gudanar da Kebul | |
| Hanyar Shiga | AnchorLINK™ Clips masu shiga ba tare da kayan aiki ba |
| Matsayin Shiga | Shigar Baya Biyu da Gefen |
| Jituwar Kebul | Loose Tube, SmartRIBBON™ da Pre-terminated Breakouts |
| Gina | |
| Faɗi | 483 mm (19") |
| Zurfi | 300 mm |
| Tsayi (1U/2U/4U) | 44mm / 88mm / 176mm |
| Bi Da Ka'idoji | |
| Ma'aunin Rack | Jituwa da EIA-310 19 inch |
| Mai Bi Da Ka'idojin RoHS3 | Ee |
| HighSTACK Wuraren Haɗawa, LC/UPC | |
| HS-1RU-S-144F-LC | HighSTACK 1RU Wuraren Rufewa, Haɗaɗɗen Ribbon 12F, 144F LC/UPC (36 x Quad), An Rufe |
| HS-2RU-S-288F-LC | HighSTACK 2RU Wuraren Rufewa, Haɗaɗɗen Ribbon 12F, 288F LC/UPC (72 x Quad), An Rufe |
| HS-4RU-S-576F-LC | HighSTACK 4RU Wuraren Rufewa, Haɗaɗɗen Ribbon 12F, 576F LC/UPC (144 x Quad), An Rufe |
| HighSTACK Wuraren Haɗawa, LC/APC | |
| HS-1RU-S-144F-LCA | HighSTACK 1RU Wuraren Rufewa, Haɗaɗɗen Ribbon 12F, 144F LC/APC (36 x Quad), An Rufe |
| HS-2RU-S-288F-LCA | HighSTACK 2RU Wuraren Rufewa, Haɗaɗɗen Ribbon 12F, 288F LC/APC (72 x Quad), An Rufe |
| HS-4RU-S-576F-LCA | HighSTACK 4RU Wuraren Rufewa, Haɗaɗɗen Ribbon 12F, 576F LC/APC (144 x Quad), An Rufe |
| HighSTACK Wuraren Faci, LC/UPC | |
| HS-1RU-P-144F-LC | HighSTACK 1RU Wuraren Rufewa, Faci, 144F LC/UPC (36 x Quad), An Rufe |
| HS-2RU-P-288F-LC | HighSTACK 2RU Wuraren Rufewa, Faci, 288F LC/UPC (72 x Quad), An Rufe |
| HS-4RU-P-576F-LC | HighSTACK 4RU Wuraren Rufewa, Faci, 576F LC/UPC (144 x Quad), An Rufe |
| HighSTACK Wuraren Faci, LC/APC | |
| HS-1RU-P-144F-LCA | HighSTACK 1RU Wuraren Rufewa, Faci, 144F LC/APC (36 x Quad), An Rufe |
| HS-2RU-P-288F-LCA | HighSTACK 2RU Wuraren Rufewa, Faci, 288F LC/APC (72 x Quad), An Rufe |
| HS-4RU-P-576F-LCA | HighSTACK 4RU Wuraren Rufewa, Faci, 576F LC/APC (144 x Quad), An Rufe |
